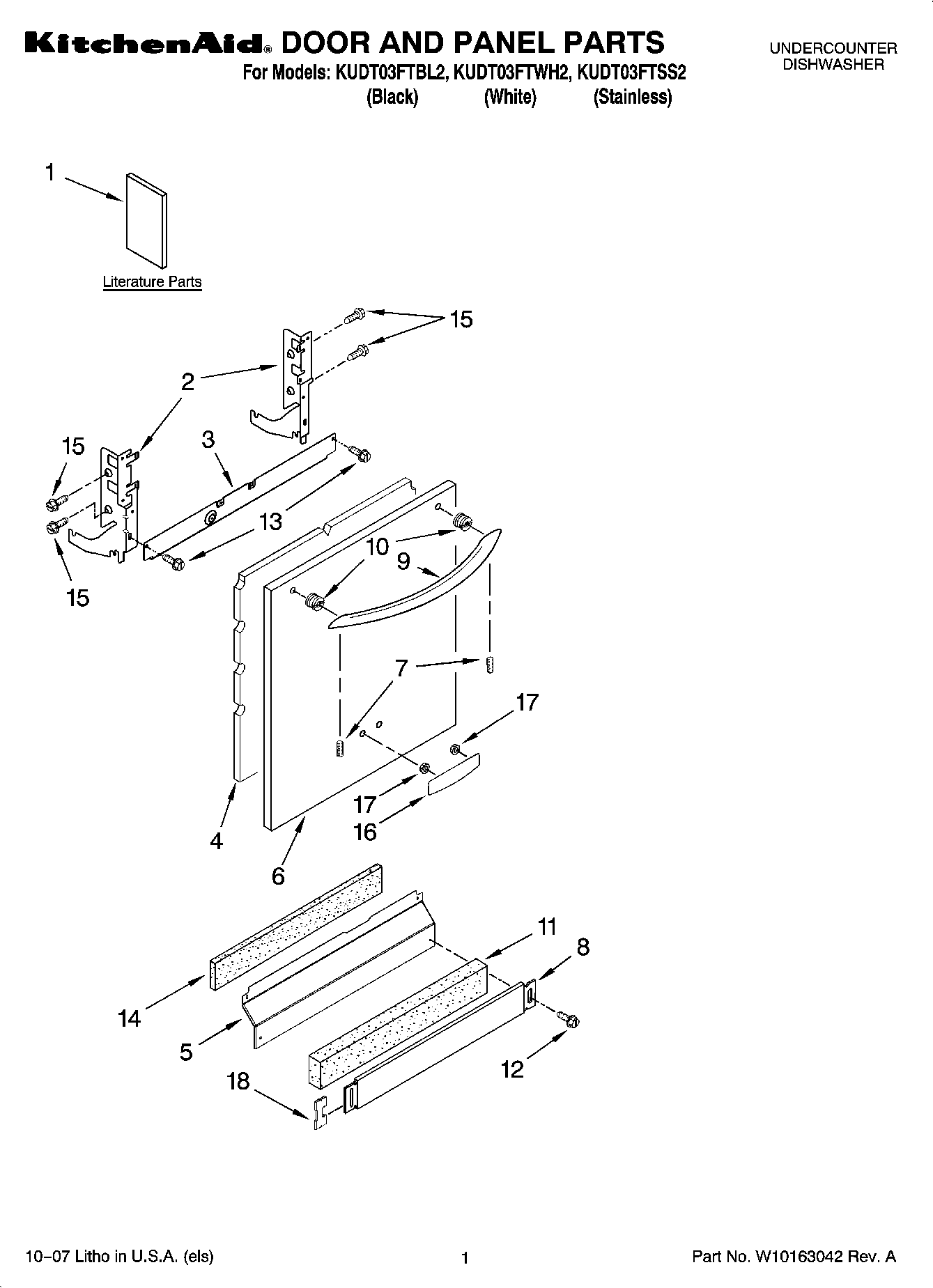

KUDT03FTBL2 01 – DOOR AND PANEL PARTS

KUDT03FTBL2 01 – DOOR AND PANEL PARTS

Written by

in

KUDT03FTBL2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1D/W User Instructions, Spanish
1Tech Sheet
1Guide, Consumer Instructions, English/French Reference
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5W10909066 Whirlpool Dishwasher Panel
5PANEL
6Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (Black)
6Panel, Full Front (Includes Items 4, 10, 16 & 17) (White)
7WP8534008 Whirlpool Screw
8WPW10586591 Whirlpool Dishwasher Toe Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10195738A Whirlpool Stainless Steel Door Handle
9Handle Assy (Includes Items 7) (Black)
9Handle Assy (Includes Items 7) (White)
10WP8564951 Whirlpool Dishwasher Stud
12WP302868 Whirlpool Screw
12WPW10503549 Whirlpool Dishwasher Retainer Clip
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
16W10021870 Whirlpool Nameplate
16W10021860 Whirlpool Dishwasher Nameplate
16W10021850 Whirlpool Dishwasher Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18WP8269016 Whirlpool Clip Assembly
