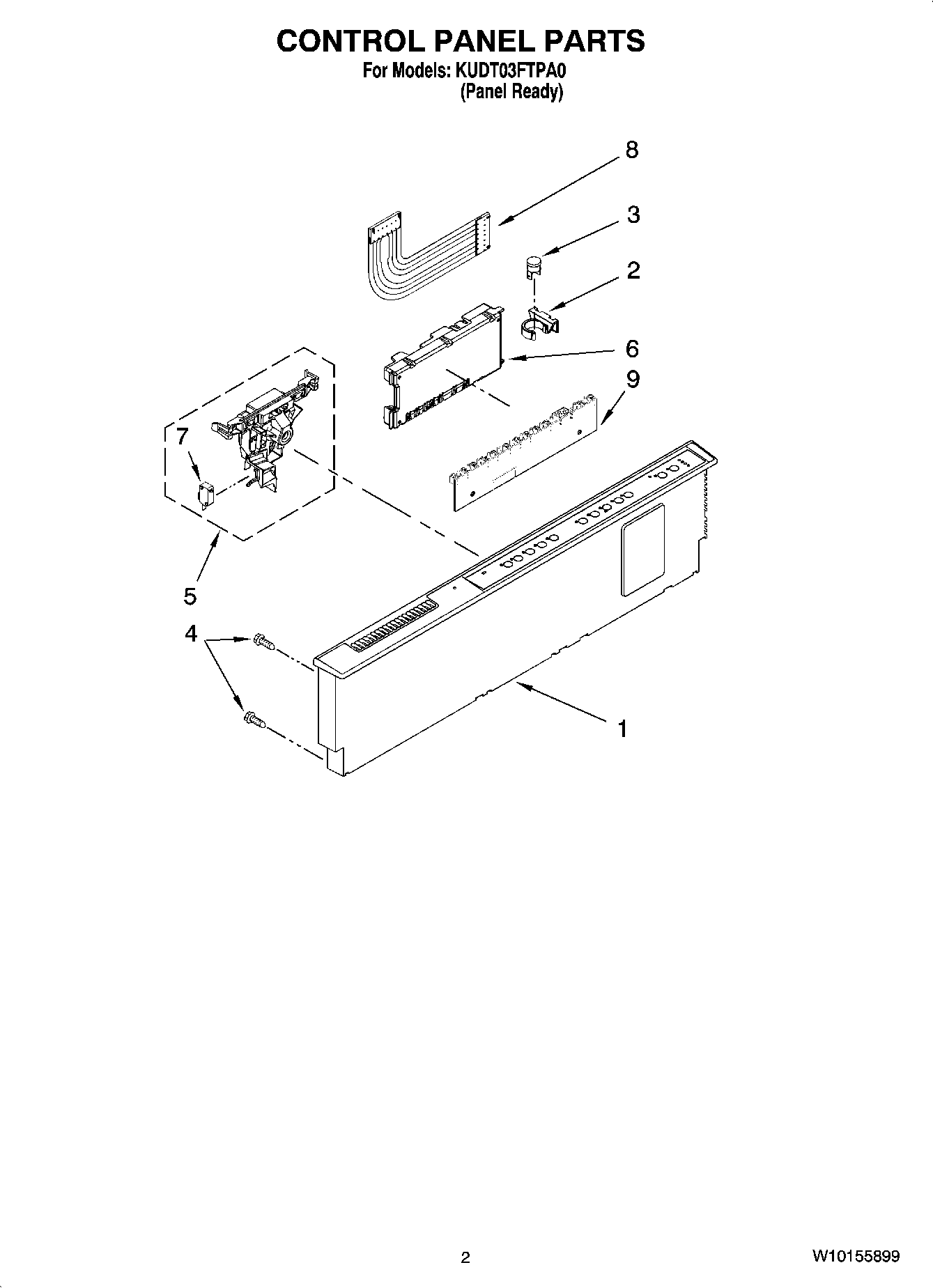

KUDT03FTPA0 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	Console Assembly (Includes Insert)
2	Clip, BI-Metal
3	W10258275 Whirlpool Dishwasher Bimetal Fuse
4	WPW10348409 Whirlpool Screw
5	WPW10404412 Whirlpool Door Latch
6	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
7	WPW10134019 Whirlpool Dishwasher Switch
8	Cable, Ribbon
9	User Interface
