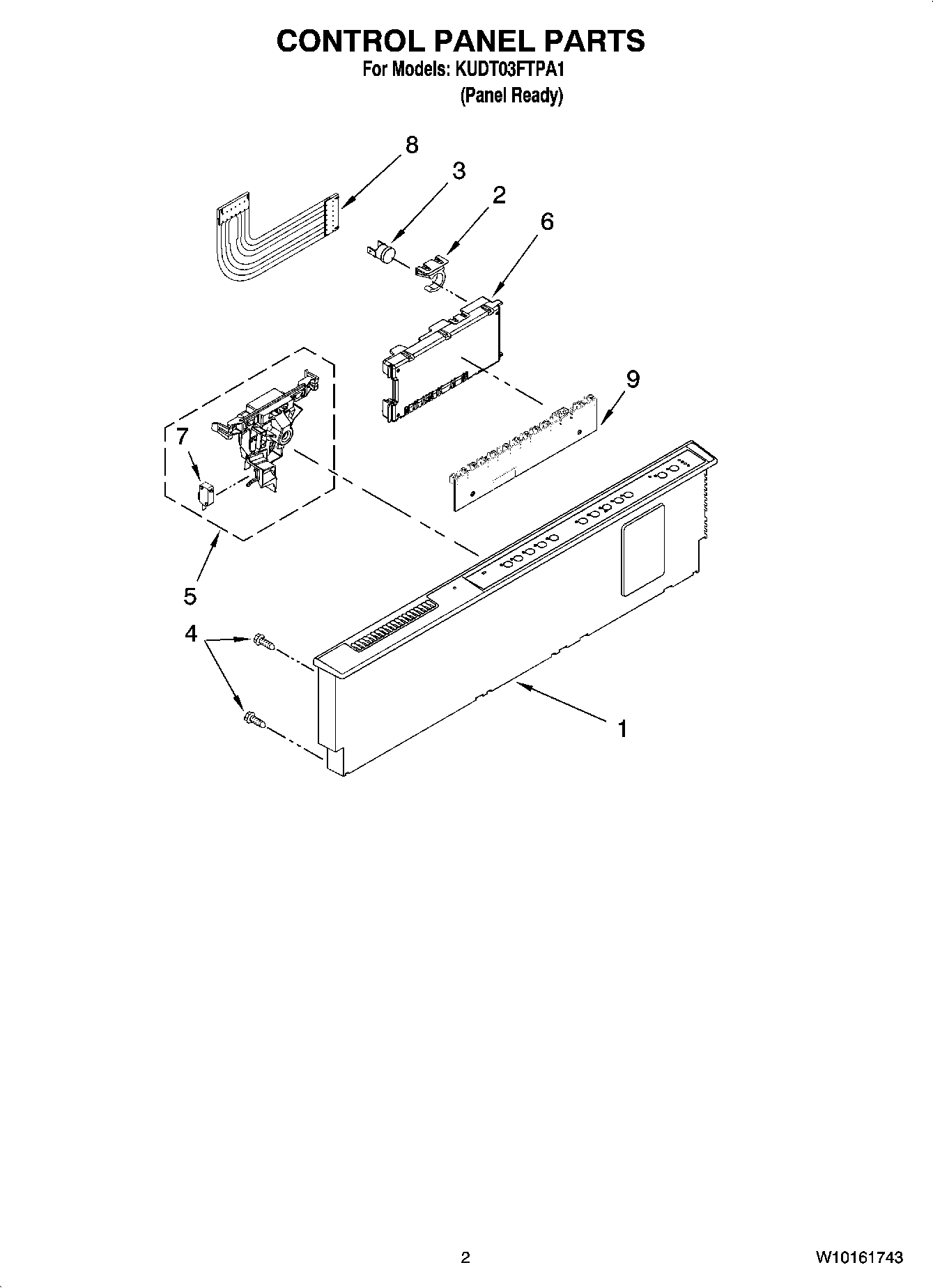

KUDT03FTPA1 02 – CONTROL PANEL PARTS

KUDT03FTPA1 02 – CONTROL PANEL PARTS

Written by

in

KUDT03FTPA1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert)
2Clip, BI-Metal
3W10258275 Whirlpool Dishwasher Bimetal Fuse
4WPW10348409 Whirlpool Screw
5WPW10404412 Whirlpool Door Latch
6WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
7WPW10134019 Whirlpool Dishwasher Switch
8Cable, Ribbon
9User Interface
