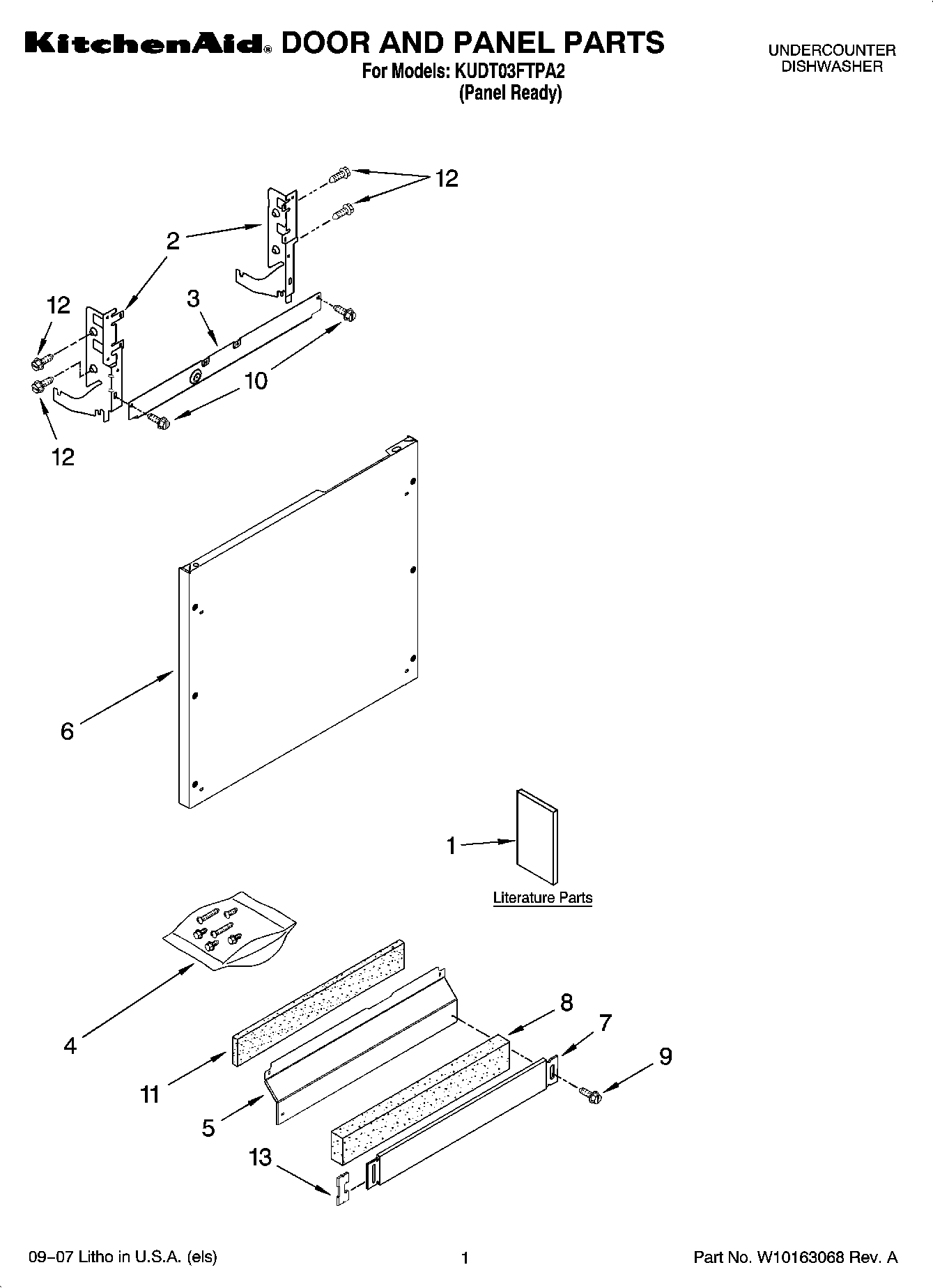

KUDT03FTPA2 01 – DOOR AND PANEL PARTS

KUDT03FTPA2 01 – DOOR AND PANEL PARTS

Written by

in

KUDT03FTPA2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Instructions, English/French Reference
1Instructions, Installation
1Tech Sheet
1Energy Guide
1D/W User Instructions, Spanish
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Screws, Bag Door Assembly
5PANEL
6W11113792 Whirlpool Dishwasher Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
11SHIELD
12WP3400071 Whirlpool Screw
13WP8269016 Whirlpool Clip Assembly
