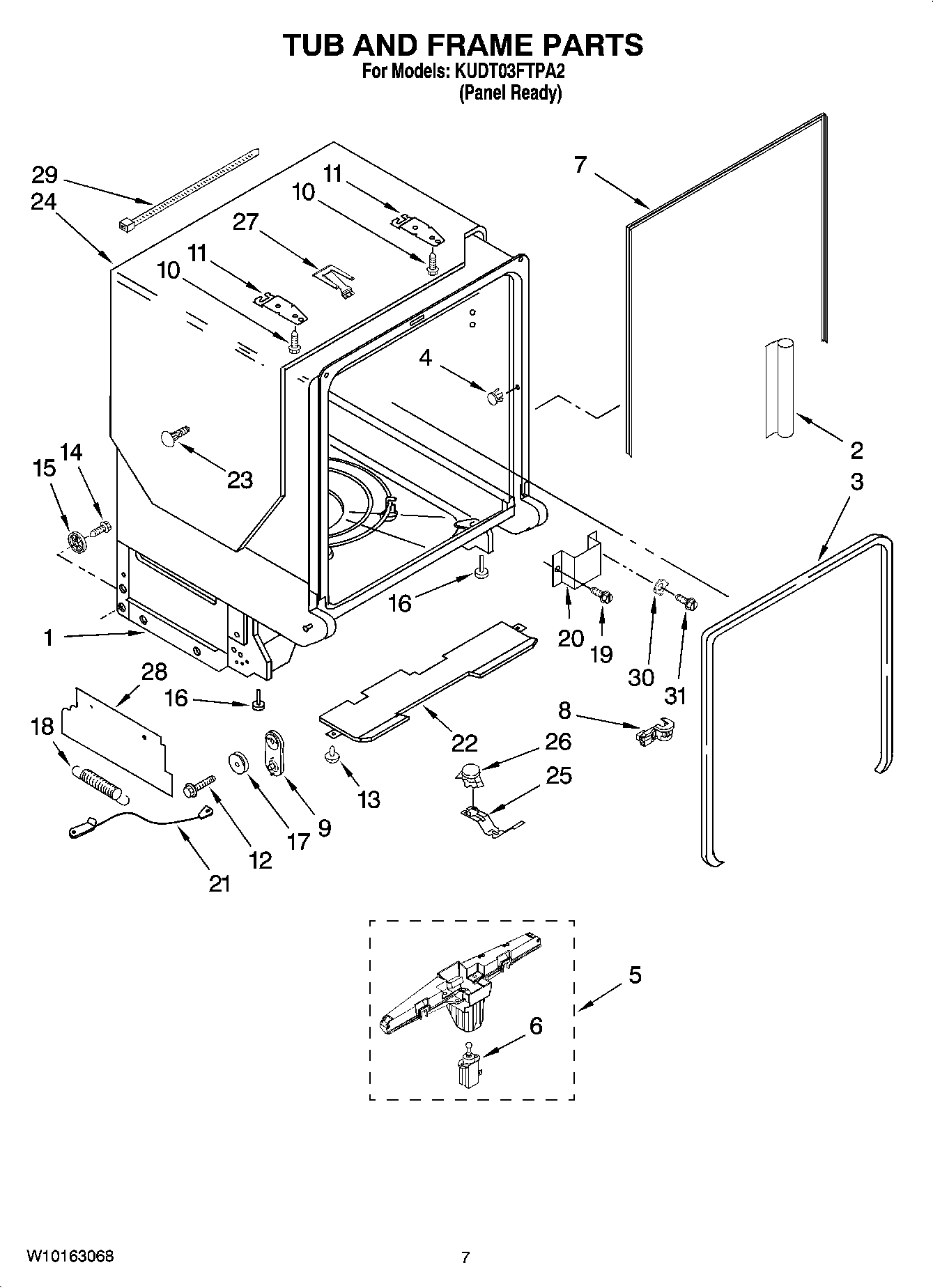

KUDT03FTPA2 07 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP8572661 Whirlpool Dishwasher Actuator
6	Motor, Wax
7	SEAL
8	W11384788 Whirlpool Dishwasher Relief Strainer
9	8194001 Whirlpool Dishwasher Door Balance Link Kit
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	WP3400924 Whirlpool Dishwasher Retainer
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP8524474 Whirlpool Dishwasher Wheel Assembly
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
22	WPW10746770 Whirlpool Insulation Pad
23	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	9742648 Whirlpool Dishwasher Stat Bracket
26	WP661566 Whirlpool High Limit Thermostat
27	Strike, Latch
28	Shield, Side
29	Strap
30	WP3378128 Whirlpool Dishwasher Washer
31	WP3400014 Whirlpool Dishwasher Screw
