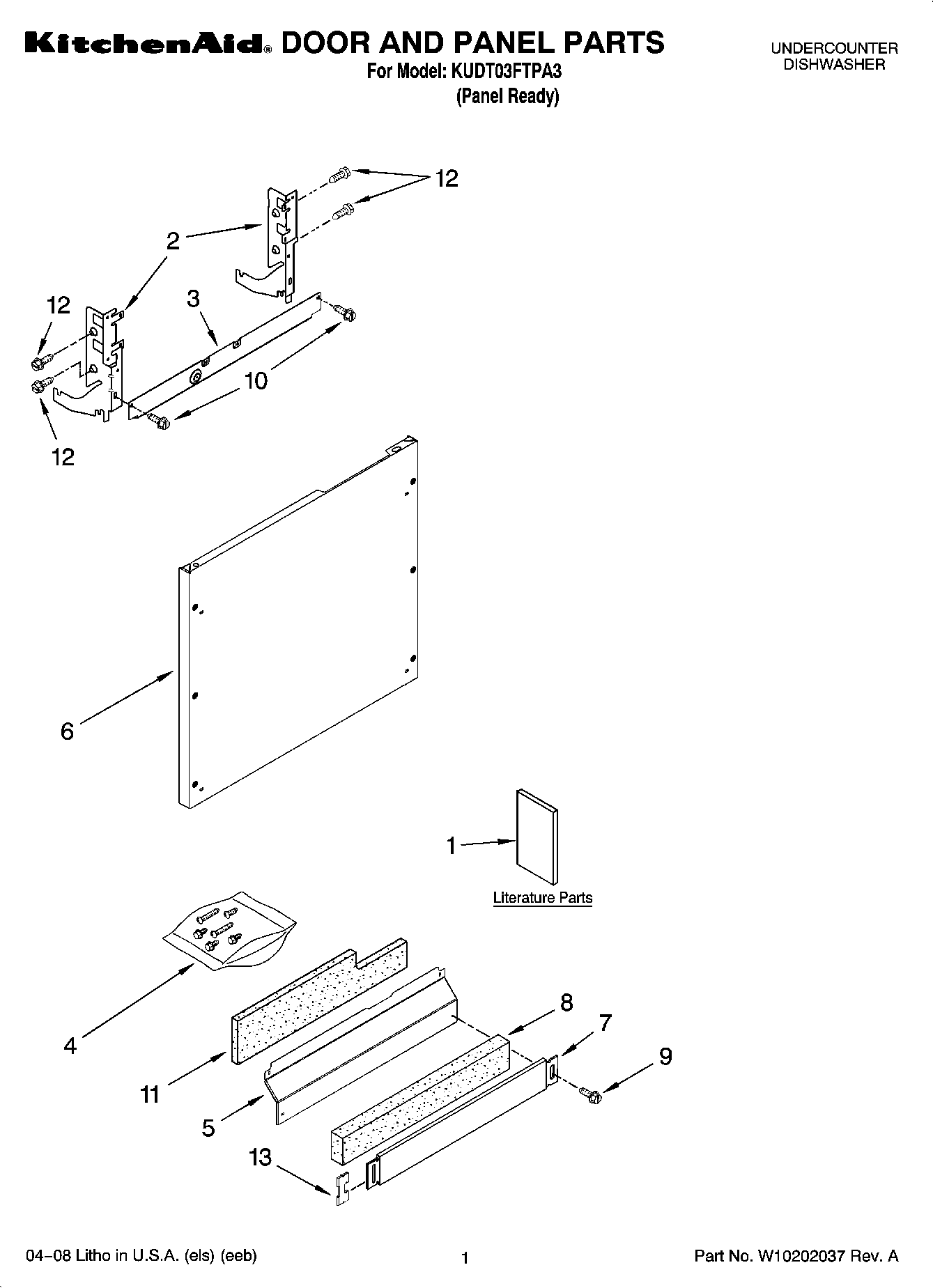

KUDT03FTPA3 01 – DOOR AND PANEL PARTS

KUDT03FTPA3 01 – DOOR AND PANEL PARTS

Written by

in

KUDT03FTPA3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care Spanish
1Tech Sheet
1Guide, Use & Care (English/French)
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Screws, Bag Door Assembly
5PANEL
6W11113792 Whirlpool Dishwasher Panel
7W10909064 Whirlpool Dishwasher Black Access Panel
8SHIELD
9WP302868 Whirlpool Screw
10WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
13WP8269016 Whirlpool Clip Assembly
