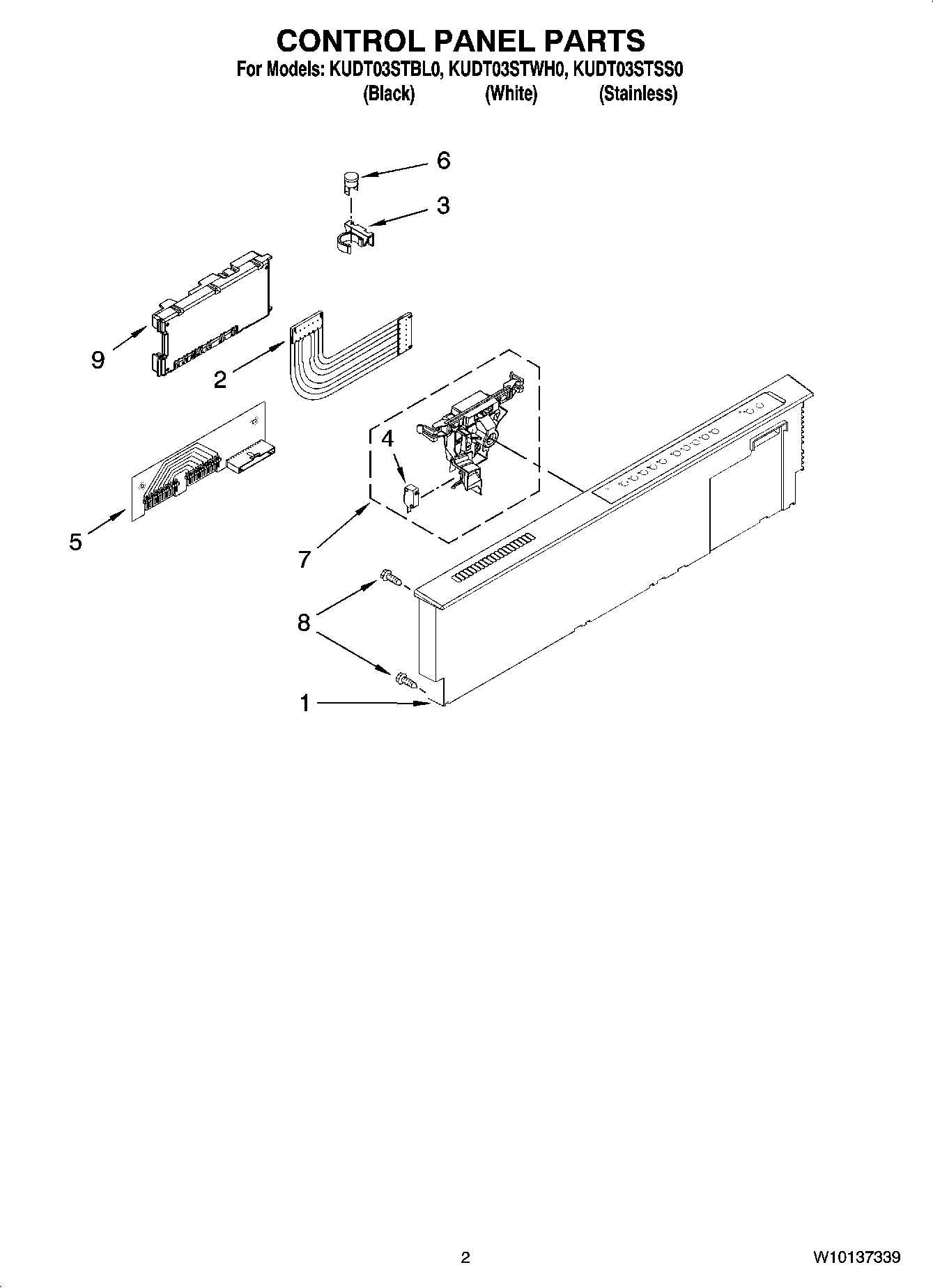

KUDT03STWH0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Insert) (Stainless)
1	Console Assembly (Includes Insert) (White)
1	Console Assembly (Includes Insert) (Black)
2	CABLE-RIBBON
3	Clip, BI-Metal
4	WPW10134019 Whirlpool Dishwasher Switch
5	WP8531873 Whirlpool Dishwasher Control Board
6	W10258275 Whirlpool Dishwasher Bimetal Fuse
7	WPW10404412 Whirlpool Door Latch
8	WPW10348409 Whirlpool Screw
9	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
