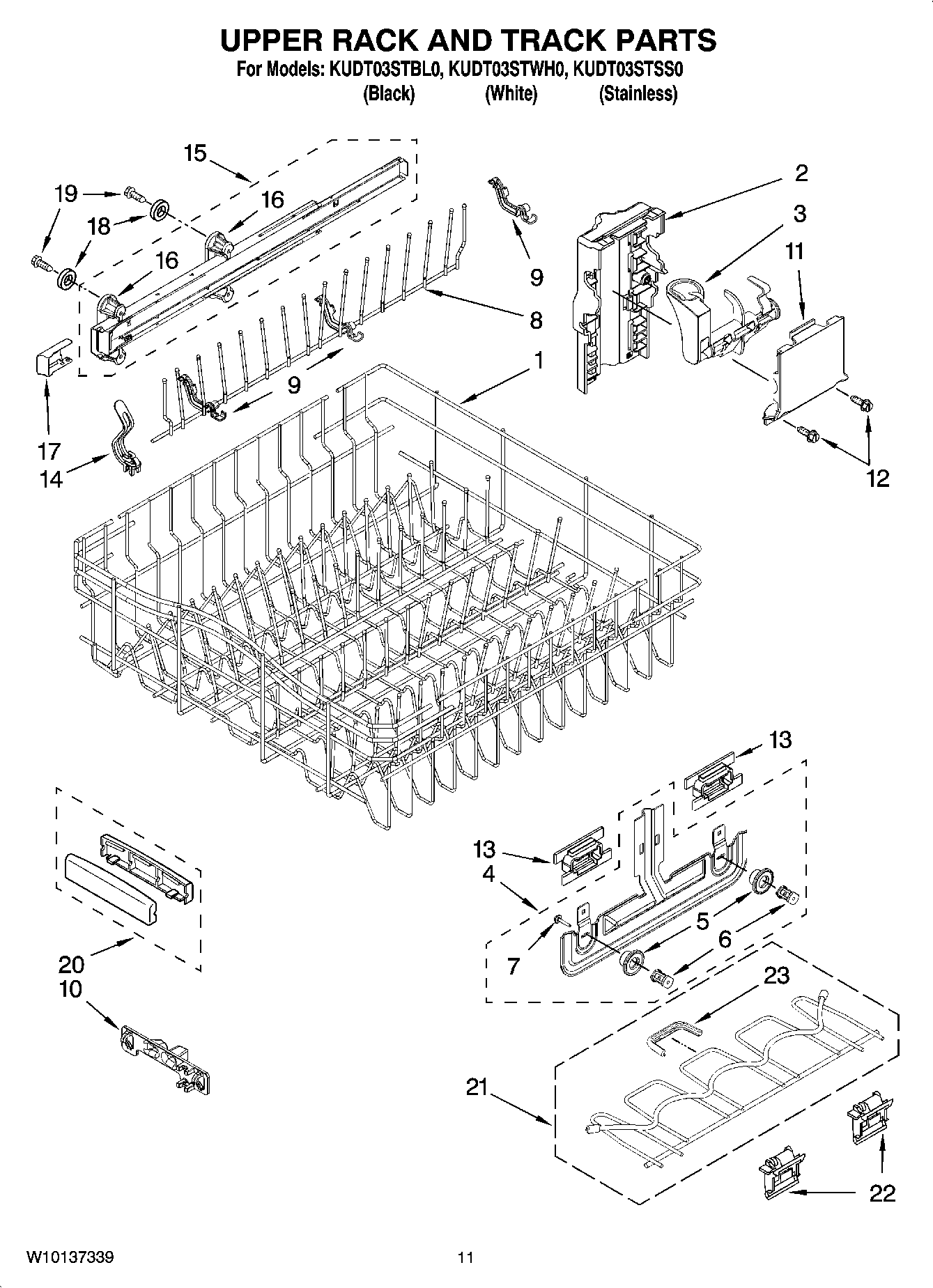

KUDT03STWH0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10728863 Whirlpool Upper Dishrack Assembly
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	PIVOT-TINE
10	WP8539102 Whirlpool Dishwasher Positioner
12	WP9741232 Whirlpool Dishwasher Screw
13	WP8268738 Whirlpool Dishwasher Positioner
14	WPW10077844 Whirlpool Dishwasher Clip
15	WPW10247511 Whirlpool Dishwasher Track
15	WPW10247512 Whirlpool Upper Slide Rail Left Side
16	Mount, Track (Also Order Item 18)
17	WP8573953 Whirlpool Dishwasher Stop Assembly
17	WP8573954 Whirlpool Dishwasher Stop Assembly
18	WP9743002 Whirlpool Dishwasher Gasket
19	WPW10348407 Whirlpool Dishwasher Screw
20	Handle, Dishrack
21	W11125975 Whirlpool Dishwasher Cup Shelf
22	8562026 Whirlpool Dishwasher Clip
23	Indicator, Cupshelf
