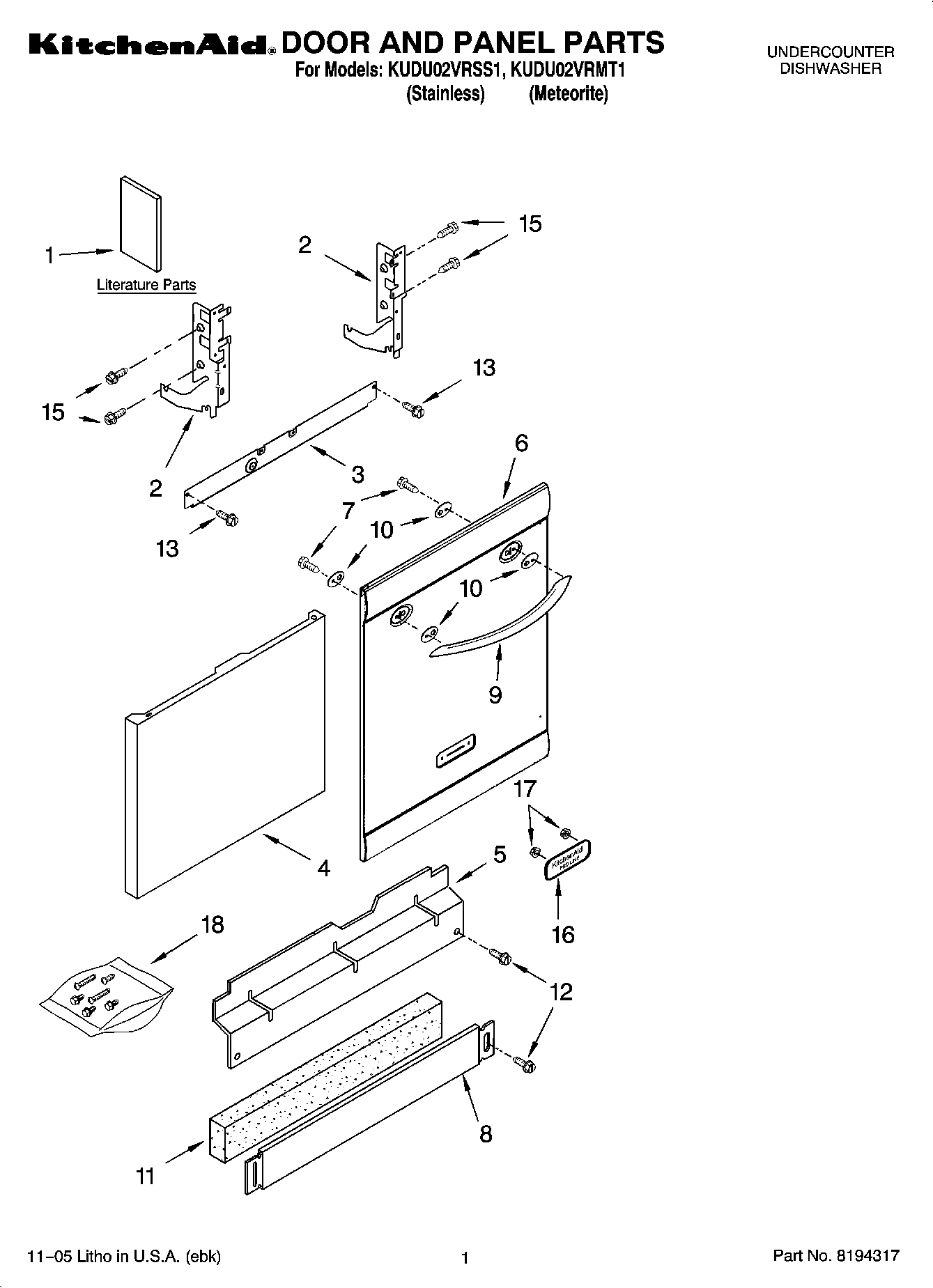

KUDU02VRMT1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Consumer Reference
1DVD, Use & Care
1Guide, Use & Care
1Energy Guide
1Instructions, Installation
1Tech Sheet
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
6Panel, Full Front (Includes Items 16 & 17) (Stainless)
6Panel, Full Front (Includes Items 16 & 17) (Meteorite)
7Screw
8W10909064 Whirlpool Dishwasher Black Access Panel
9Handle
10Plate, Backing (Front)
10Plate, Backing (Rear)
11SHIELD
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16Nameplate
17WP2004333 Whirlpool Refrigerator Nut
18Screws, Bag Door Assembly
