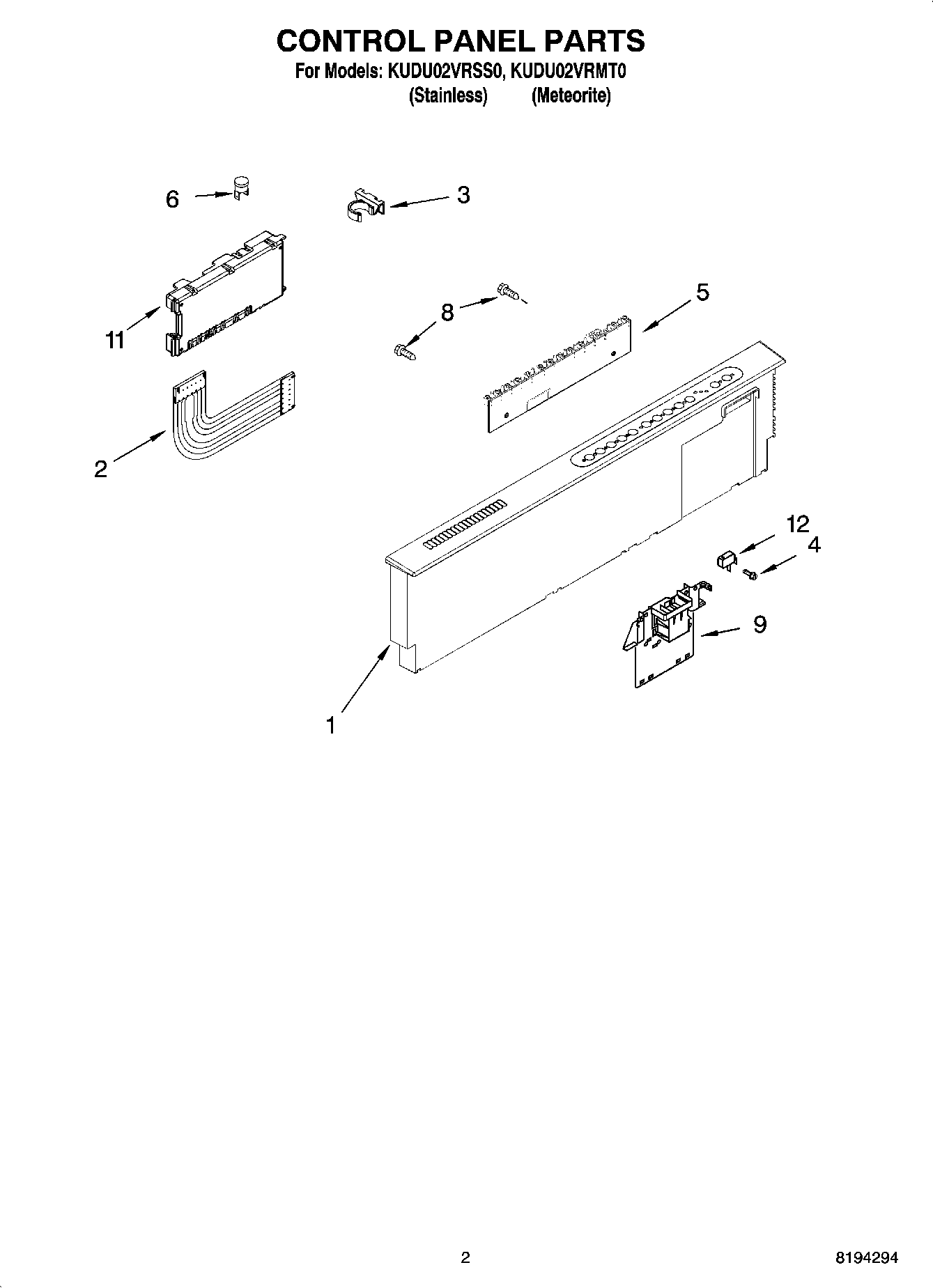

KUDU02VRSS0 02 – CONTROL PANEL PARTS

KUDU02VRSS0 02 – CONTROL PANEL PARTS

Written by

in

KUDU02VRSS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert)
2Cable, Ribbon
3Clip, BI-Metal
4WP3400412 Whirlpool Dishwasher Screw
5WP8564961 Whirlpool Dishwasher Electronic Control Board
6W10258275 Whirlpool Dishwasher Bimetal Fuse
8WPW10348409 Whirlpool Screw
98193830 Whirlpool Dishwasher Door Latch Switch Kit
11WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
12WP8269209 Whirlpool Door Switch
