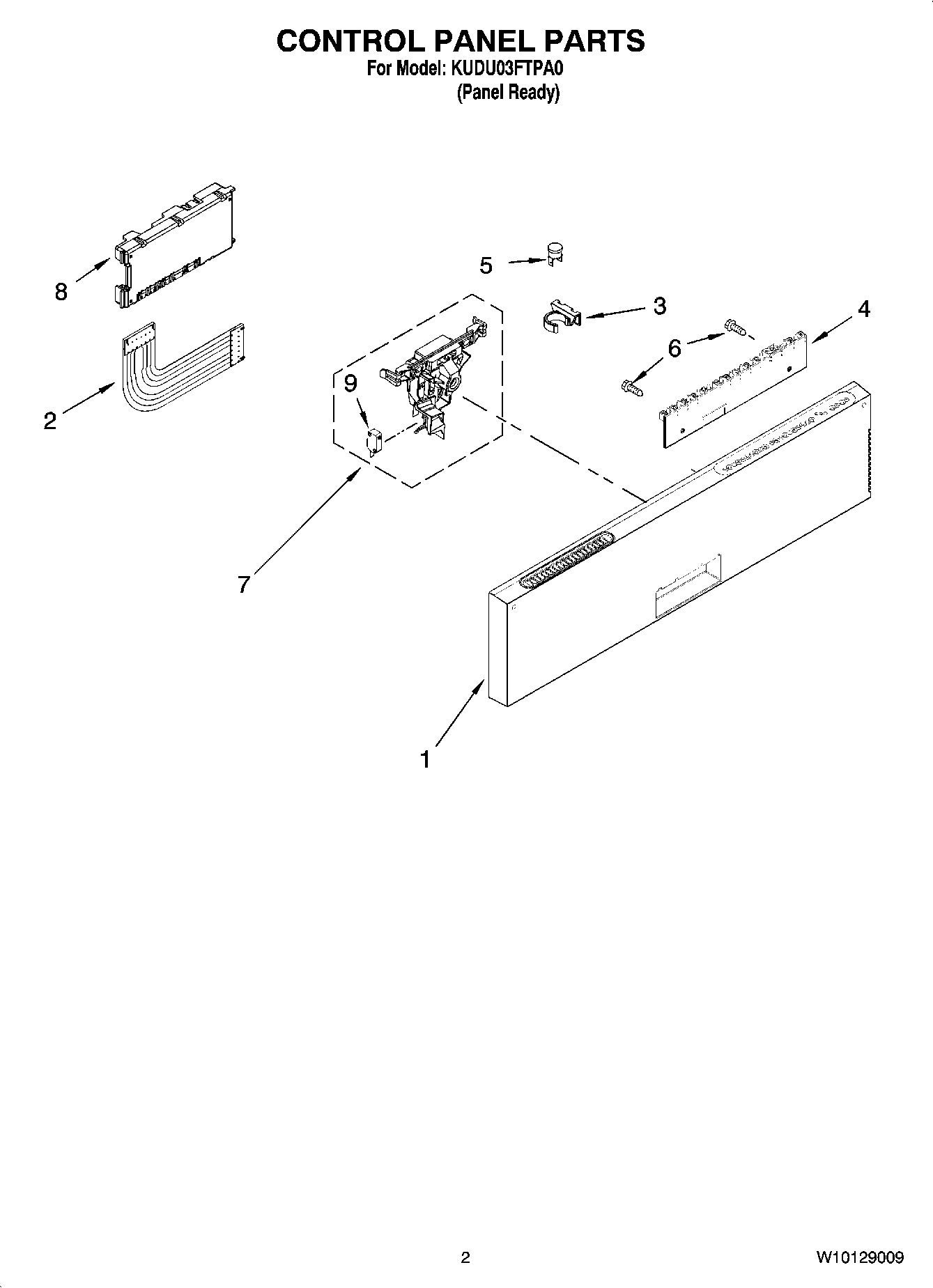

KUDU03FTPA0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Insert)
2	Cable, Ribbon
3	Clip, BI-Metal
4	User Interface
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WPW10348409 Whirlpool Screw
7	WPW10404412 Whirlpool Door Latch
8	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
9	WPW10134019 Whirlpool Dishwasher Switch
