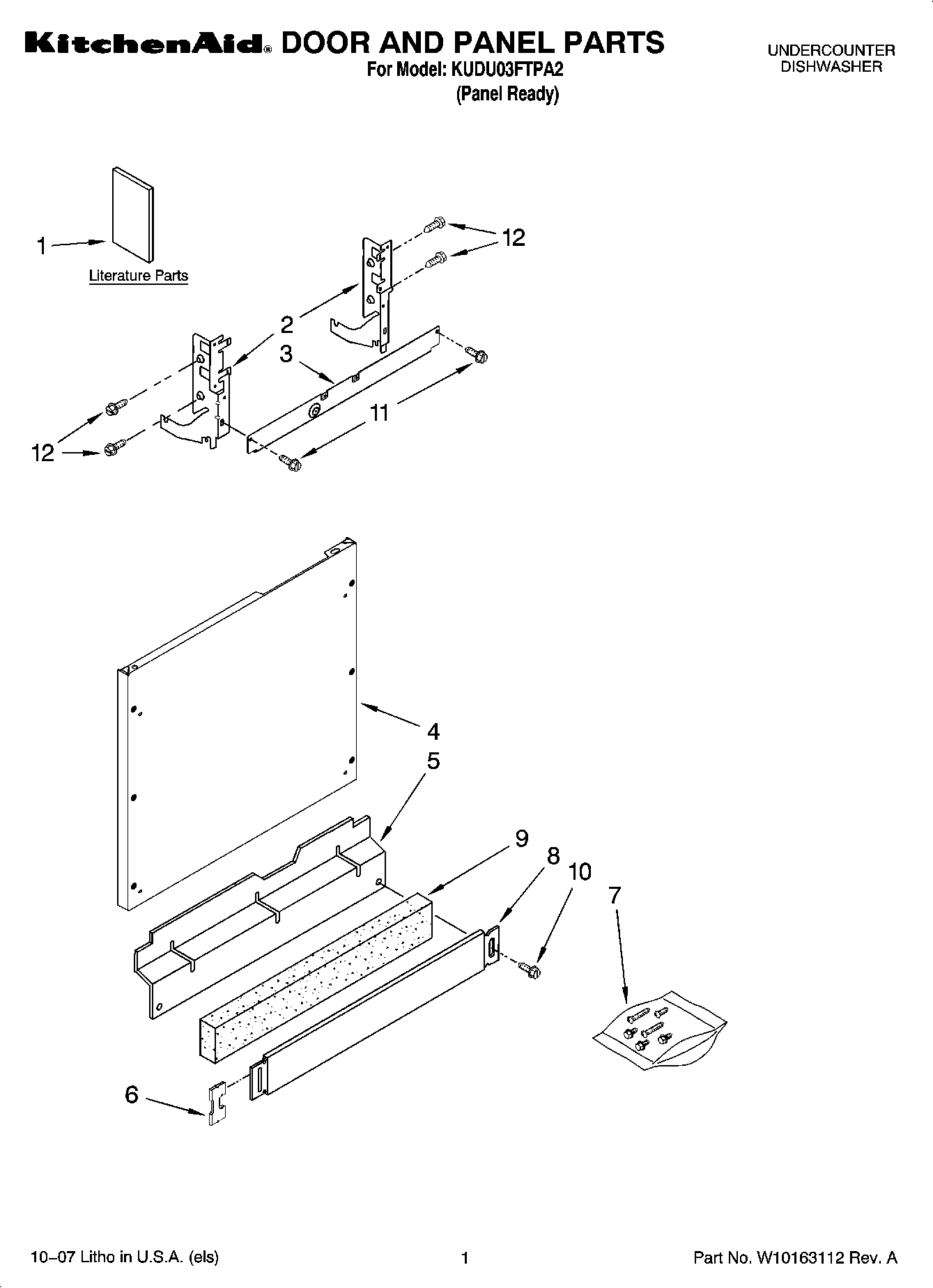

KUDU03FTPA2 01 – DOOR AND PANEL PARTS

KUDU03FTPA2 01 – DOOR AND PANEL PARTS

Written by

in

KUDU03FTPA2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1D/W User Instructions, Spanish
1Guide, Consumer Instructions, English/French Reference
1Tech Sheet
1Instructions, Installation
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4W11113792 Whirlpool Dishwasher Panel
6WP8269016 Whirlpool Clip Assembly
7Screws, Bag Door Assembly
8W10909064 Whirlpool Dishwasher Black Access Panel
9SHIELD
10WP302868 Whirlpool Screw
11WP489069 Whirlpool Compactor Screw
12WP3400071 Whirlpool Screw
