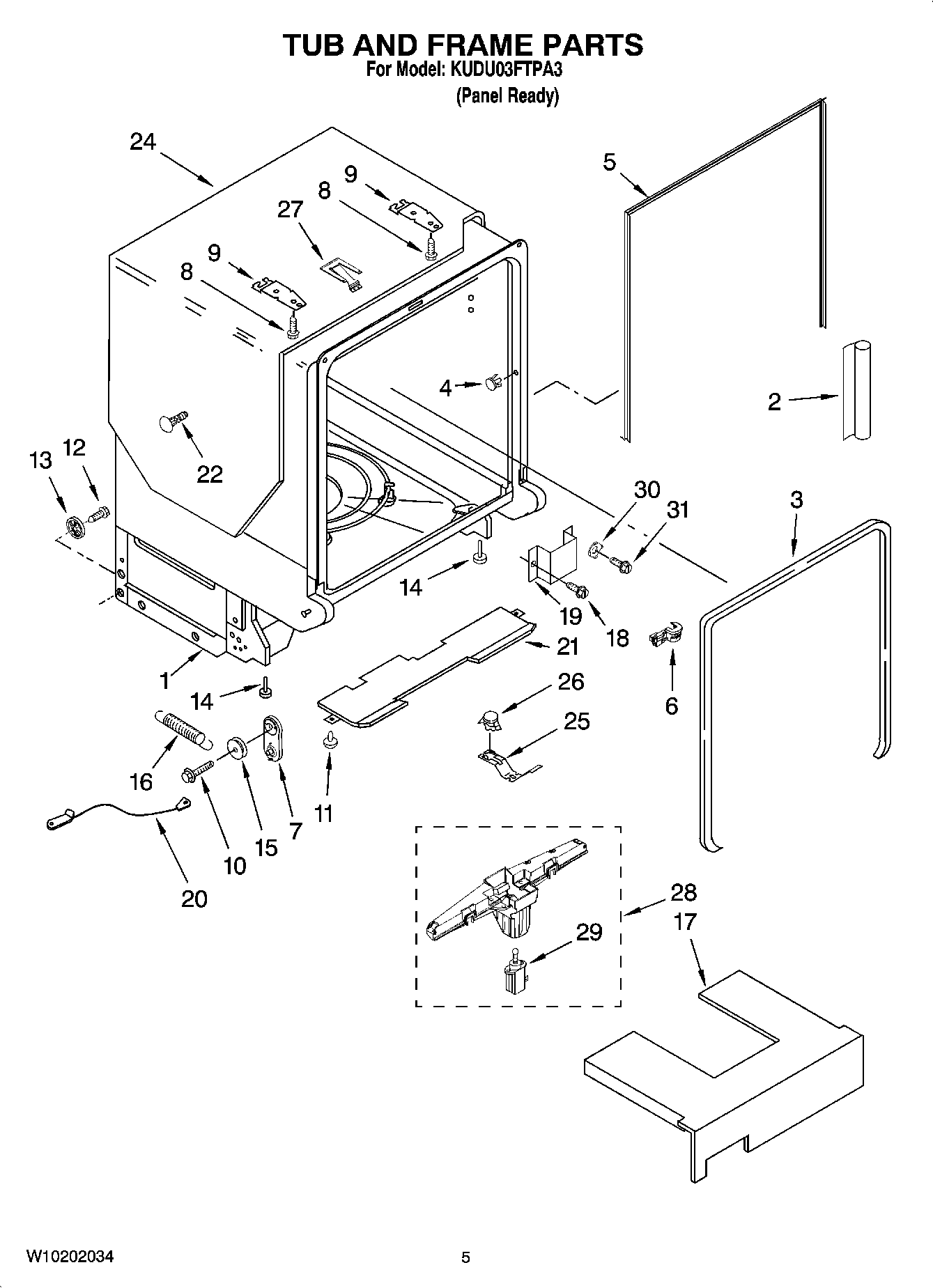

KUDU03FTPA3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	Barrier, Moisture Undercounter
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	SEAL
6	W11384788 Whirlpool Dishwasher Relief Strainer
7	8194001 Whirlpool Dishwasher Door Balance Link Kit
8	WP308685 Whirlpool Microwave Screw
9	WP8269145 Whirlpool Dishwasher Mounting Bracket
10	WP3400074 Whirlpool Dishwasher Screw
11	WP3400924 Whirlpool Dishwasher Retainer
12	Screw (2)
13	WP8268977 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	WP8524474 Whirlpool Dishwasher Wheel Assembly
16	SPRING
17	SHIELD
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
21	WPW10746770 Whirlpool Insulation Pad
22	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	9742648 Whirlpool Dishwasher Stat Bracket
26	WP661566 Whirlpool High Limit Thermostat
27	Strike, Latch
28	WP8572661 Whirlpool Dishwasher Actuator
29	Motor, Wax
30	WP3378128 Whirlpool Dishwasher Washer
31	WP3400014 Whirlpool Dishwasher Screw
