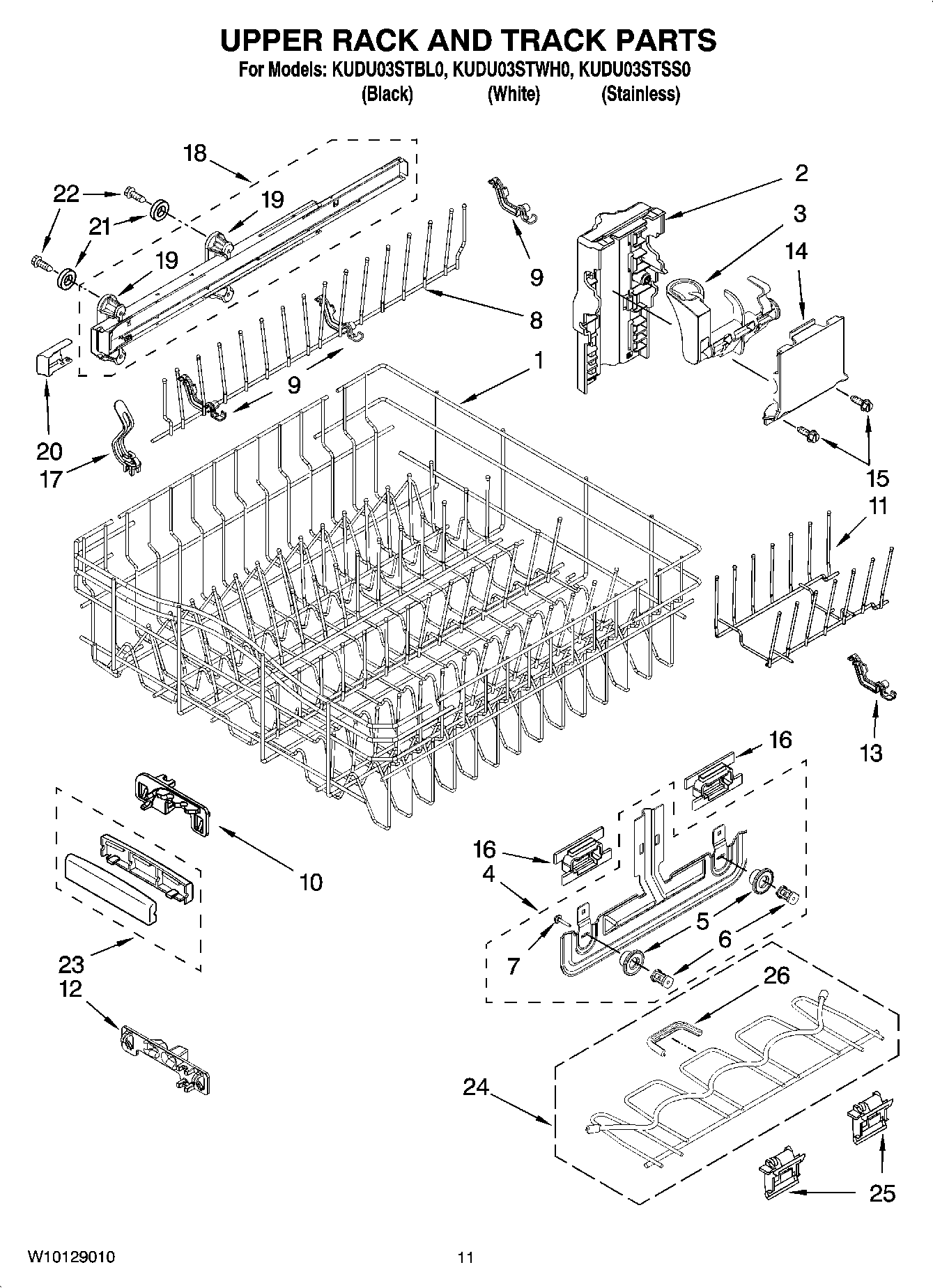

KUDU03STBL0 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10728863 Whirlpool Upper Dishrack Assembly
2	8193741 Whirlpool Dishwasher Adjuster P1
3	Actuator, Adjuster (Right Hand)
3	Actuator, Adjuster (Left Hand)
4	W10728567 Whirlpool Dishwasher Adjuster
5	WP8270138 Whirlpool Dishwasher Upper Wheel
6	WP8268703 Whirlpool Dishwasher Rack Axle
7	WP8281156 Whirlpool Dishwasher Screw
8	W10727426 Whirlpool Dishwasher Rack Tine
9	PIVOT-TINE
10	WP8539103 Whirlpool Dishwasher Positioner
11	WP8539149 Whirlpool Dishwasher Insert Rack
12	WP8539102 Whirlpool Dishwasher Positioner
13	Clip, Insert Tines
15	WP9741232 Whirlpool Dishwasher Screw
16	WP8268738 Whirlpool Dishwasher Positioner
17	WPW10077844 Whirlpool Dishwasher Clip
18	Track, Assembly (Right Hand)
18	Track, Assembly (Left Hand (Also Order Item 21))
19	Mount, Track (Also Order Item 18)
20	Stop, Track (Left)
20	Stop, Track (Right)
21	WP9743002 Whirlpool Dishwasher Gasket
22	WPW10348407 Whirlpool Dishwasher Screw
23	Handle, Dishrack
24	Cupshelf Assembly
25	8562026 Whirlpool Dishwasher Clip
26	Indicator, Cupshelf
