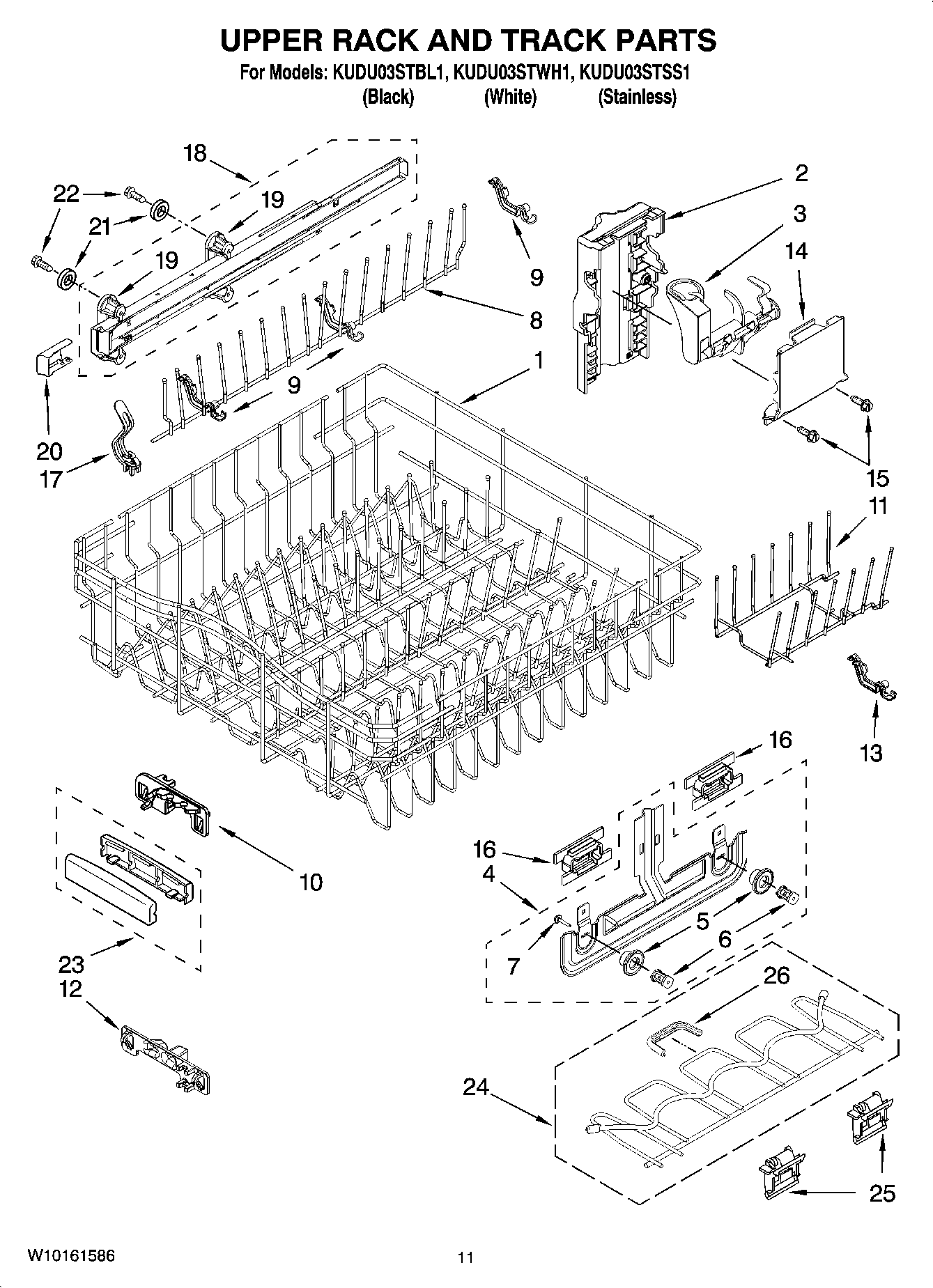

KUDU03STBL1 09 – UPPER RACK AND TRACK PARTSadmin2025-04-26T12:41:44+00:00KUDU03STBL1 09 – UPPER RACK AND TRACK PARTS
Products
| Position | Product |
|---|
| 1 | W10728863 Whirlpool Upper Dishrack Assembly |
| 2 | W10728563 Whirlpool Dishwasher Housing |
| 3 | Actuator, Adjuster (Right Hand) |
| 3 | Actuator, Adjuster (Left Hand) |
| 4 | W10728567 Whirlpool Dishwasher Adjuster |
| 5 | WP8270138 Whirlpool Dishwasher Upper Wheel |
| 6 | WP8268703 Whirlpool Dishwasher Rack Axle |
| 7 | WP8281156 Whirlpool Dishwasher Screw |
| 8 | W10727426 Whirlpool Dishwasher Rack Tine |
| 9 | WPW10082853 Whirlpool Dishwasher Tine Pivot Clip |
| 10 | WP8539103 Whirlpool Dishwasher Positioner |
| 11 | WP8539149 Whirlpool Dishwasher Insert Rack |
| 12 | WP8539102 Whirlpool Dishwasher Positioner |
| 13 | Clip, Insert Tines |
| 14 | W10728561 Whirlpool Dishwasher Cover |
| 15 | WP9741232 Whirlpool Dishwasher Screw |
| 16 | W10728566 Whirlpool Dishwasher Positioner |
| 17 | WPW10077844 Whirlpool Dishwasher Clip |
| 18 | Track, Assembly (Right Hand) |
| 18 | Track, Assembly (Left Hand (Also Order Item 21)) |
| 19 | Mount, Track (Also Order Item 18) |
| 20 | Stop, Track (Left) |
| 20 | Stop, Track (Right) |
| 21 | WP9743002 Whirlpool Dishwasher Gasket |
| 22 | WPW10348407 Whirlpool Dishwasher Screw |
| 23 | Handle, Dishrack |
| 24 | Cupshelf Assembly |
| 25 | 8562026 Whirlpool Dishwasher Clip |
| 26 | Indicator, Cupshelf |
