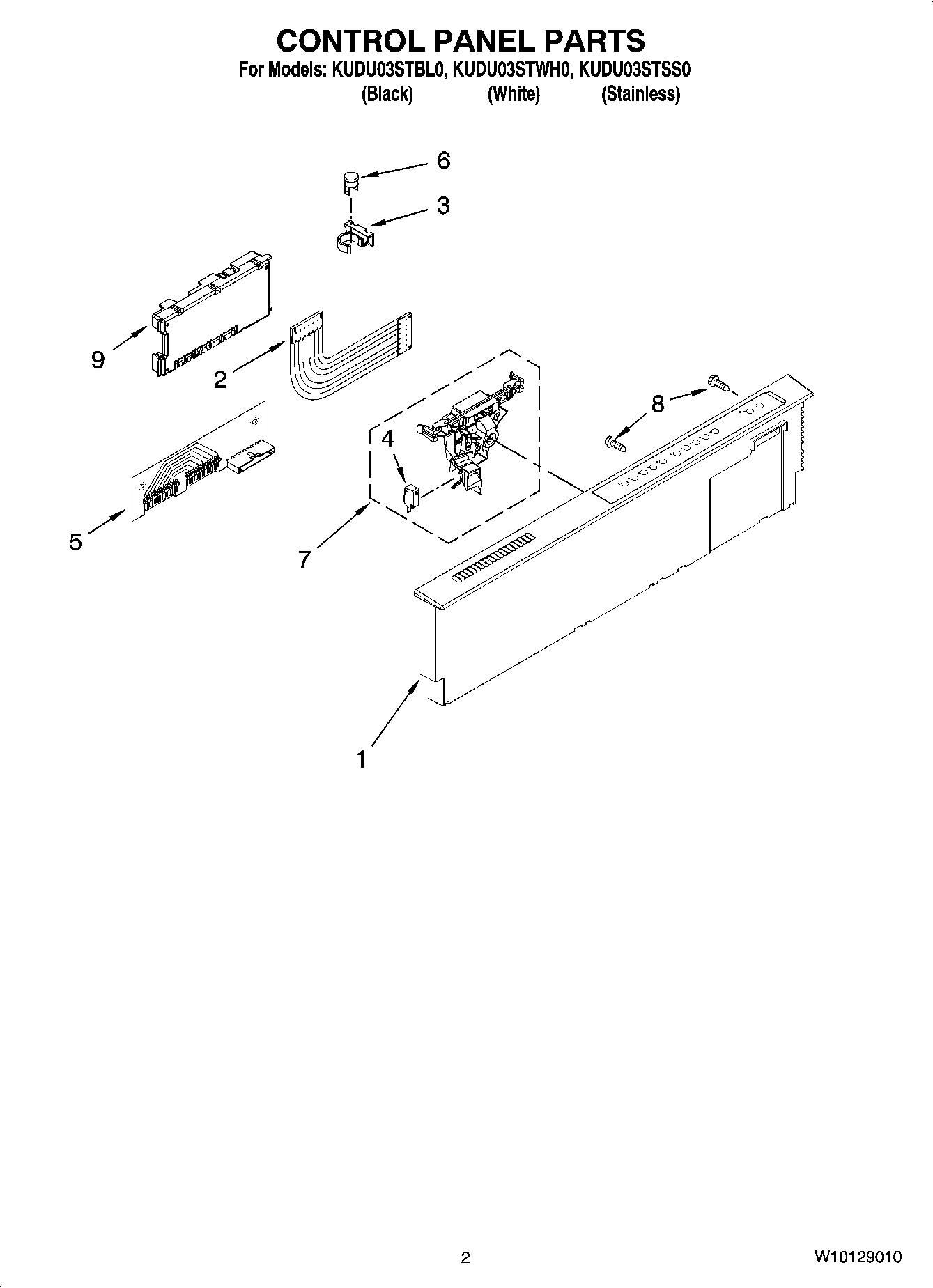

KUDU03STSS0 02 – CONTROL PANEL PARTS

KUDU03STSS0 02 – CONTROL PANEL PARTS

Written by

in

KUDU03STSS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Includes Insert) (Stainless)
1Console Assembly (Includes Insert) (White)
1Console Assembly (Includes Insert) (Black)
2CABLE-RIBBON
3Clip, BI-Metal
4WPW10134019 Whirlpool Dishwasher Switch
5WP8531873 Whirlpool Dishwasher Control Board
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WPW10404412 Whirlpool Door Latch
8WPW10348409 Whirlpool Screw
9WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
