KUDV24SEAL0 01 – DOOR AND PANEL

KUDV24SEAL0 01 – DOOR AND PANEL

Written by

in

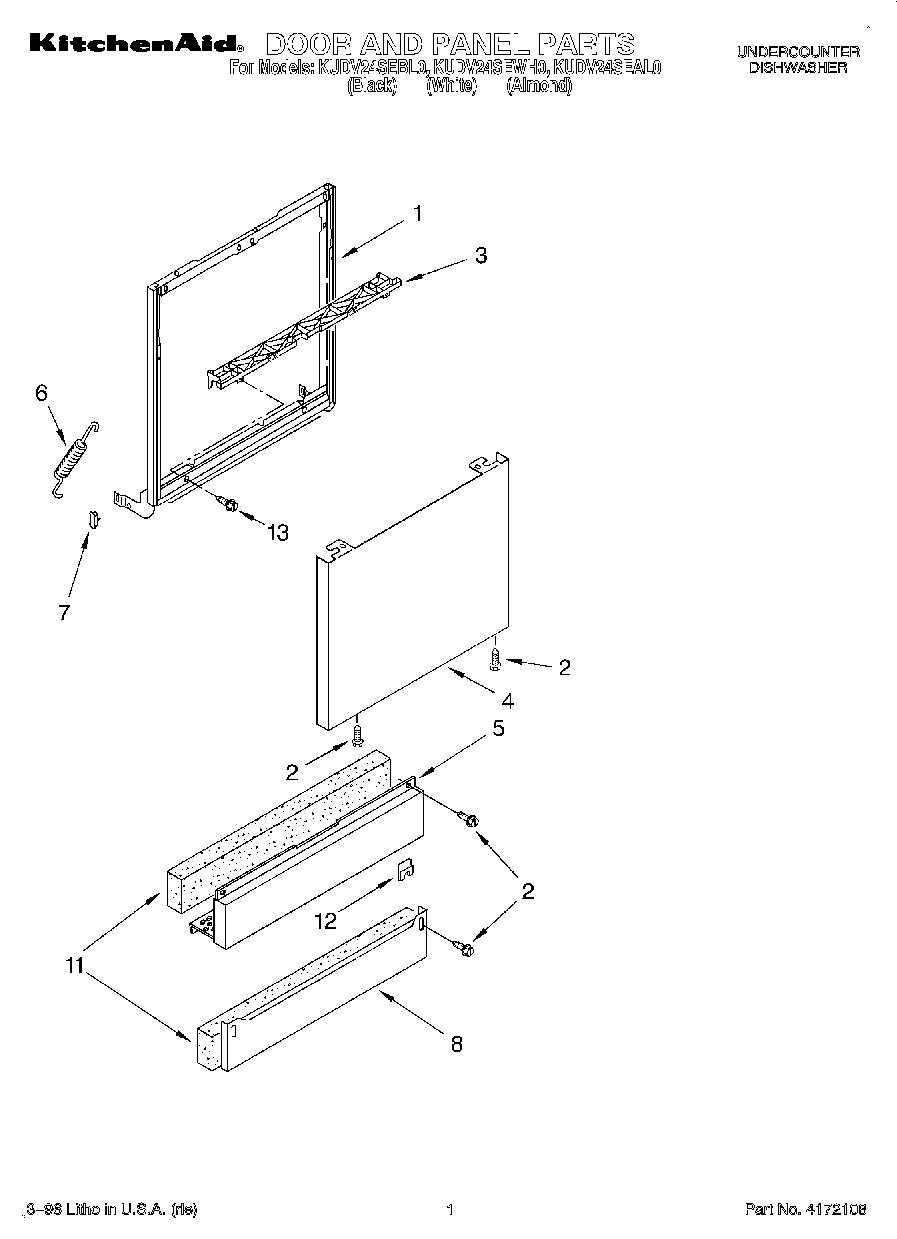

KUDV24SEAL0 01 – DOOR AND PANEL

Products

PositionProduct
1WP9743028 Whirlpool Dishwasher Frame
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel Front (Almond Model)
4Panel Front (White Model)
4Panel Front (Black Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Almond Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8WP3379921 Whirlpool Dishwasher Toe Panel
8Toe Panel (Includes Item 11) (Almond Model)
8WP3379920 Whirlpool Dishwasher Toe Panel
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
