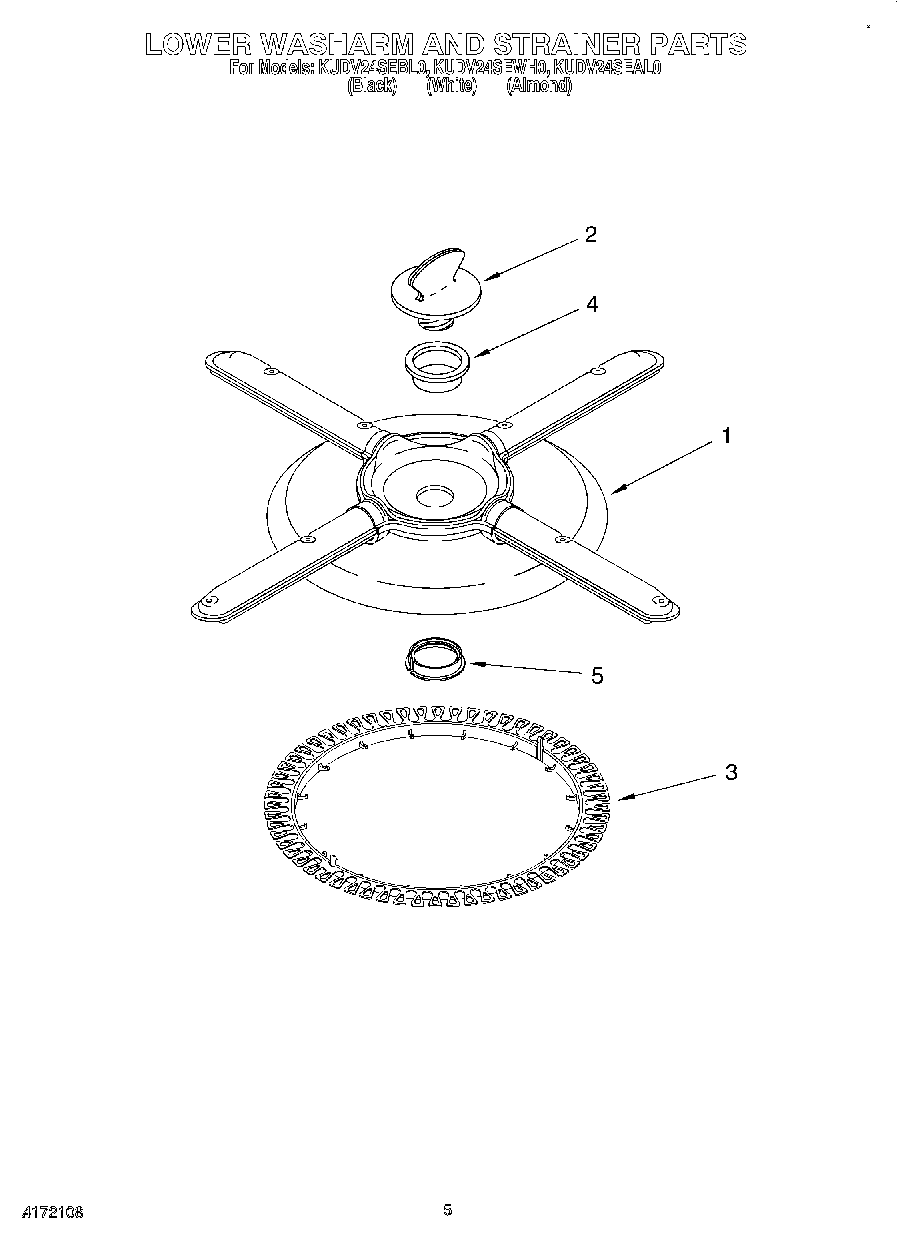

KUDV24SEAL0 04 – LOWER WASHARM AND STRAINER

Written by

Products

Position	Product
1	Wash Arm Assembly
2	WP9742945 Whirlpool Spray Arm Nut
3	Strainer (Coarse)
4	WP9742946 Whirlpool Dishwasher Spray Arm Bearing
5	WP3376846 Whirlpool Seal
