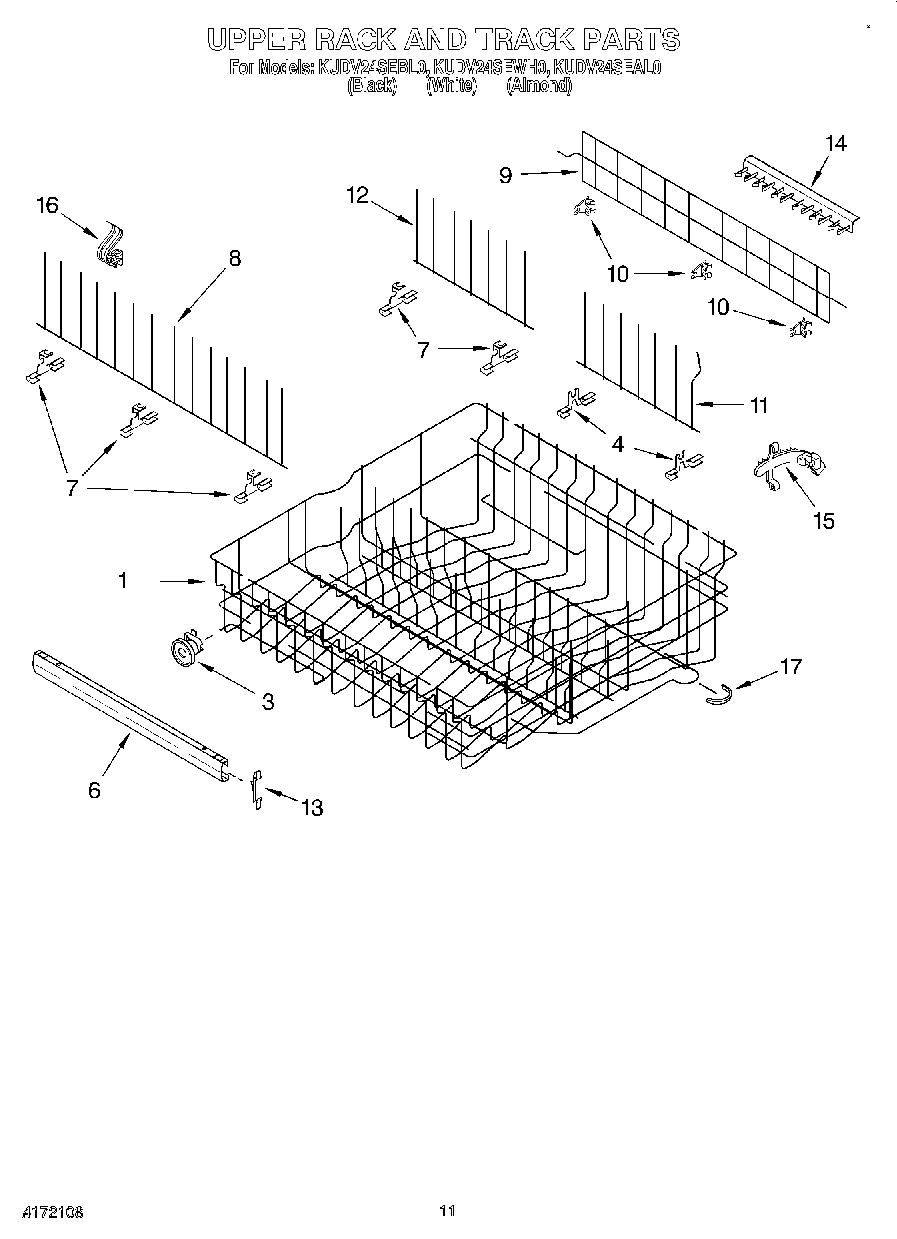

KUDV24SEAL0 09 – UPPER RACK AND TRACK

Written by

Products

Position	Product
1	WPW10253040 Whirlpool Dishwasher Dish Rack
3	WP8268807 Whirlpool Dishwasher Upper Wheel
4	WP9743016 Whirlpool Dishwasher Tine Pivot
6	WP3385089 Whirlpool Track
7	WP8268816 Whirlpool Tine Row Clip
8	Tine Row
9	Cupshelf
10	WP9743019 Whirlpool Dishwasher Clip
11	Tine Row, Upper (Multi Position)
12	Tine Row, Upper Mini
13	Stop, Track (4)
14	Holder, Stemware (2)
15	Positioner
16	Clip, No Flip (4)
17	Protector, Sprayarm Guard
