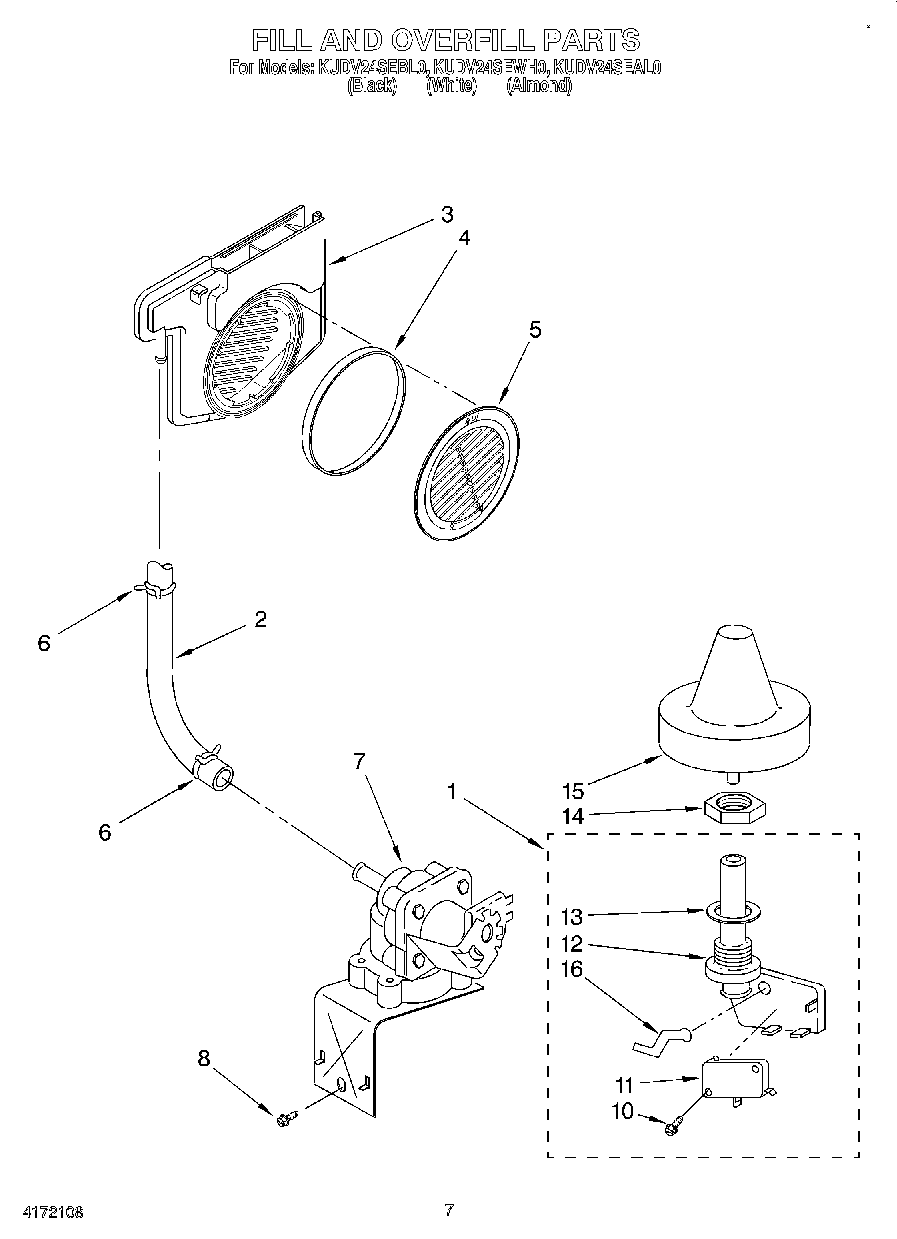

KUDV24SEBL0 06 – FILL AND OVERFILL

KUDV24SEBL0 06 – FILL AND OVERFILL

Written by

in

KUDV24SEBL0 06 – FILL AND OVERFILL

Products

PositionProduct
2WP9742727 Whirlpool Dishwasher Fill Hose
3Water Inlet Assembly (Includes Items 4 & 5)
4Gasket
5Bezel, Inlet
6WP596669 Whirlpool Hose Clamp
7W10844024 Whirlpool Water Inlet Valve
10WP489069 Whirlpool Compactor Screw
11WP9743413 Whirlpool Dishwasher Switch
12W10207863 Whirlpool Dishwasher Switch
13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14Nut, Standpipe
15Float & Retainer Assembly
16Lever, Overflow Switch
