KUDV24SEBL2 03 – DOOR AND LATCH

KUDV24SEBL2 03 – DOOR AND LATCH

Written by

in

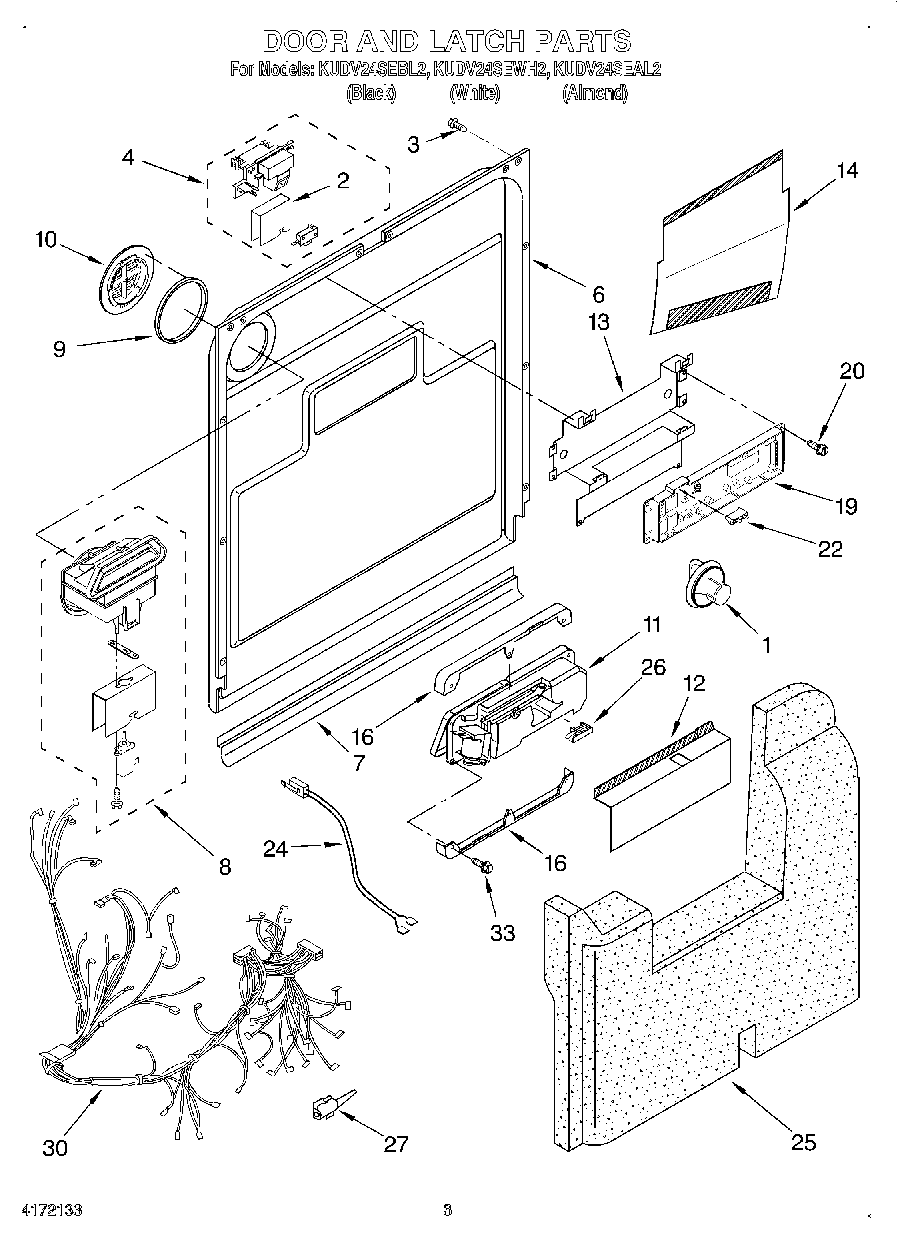

KUDV24SEBL2 03 – DOOR AND LATCH

Products

PositionProduct
1Cap, Dispenser
2675760 Whirlpool Dishwasher Door Latch Assembly
3WPW10348409 Whirlpool Screw
6Inner Door Mastic Assembly (Also Includes Items 7, 9 & 10)
74172127 Whirlpool Dishwasher Bottom Door Seal
8Vent Assembly (Also Order Item 9)
9Gasket, Vent
10Deflector, Vent (Also Order Item 9)
11WPW10616003 Whirlpool Dishwasher Dispenser Assembly
12Shield, Dispenser
13Bracket, Controls
14Shield, Control
16Bracket, Dispenser (2)
19Control, Electronic
20WP965173 Whirlpool Dishwasher Screw
22Fuse Thermal Electronic
24Dispenser, Wiring Harness
25Sound Absorber
26Sensor, Rinse Aid
273376405 Whirlpool Dishwasher Elbow
30Wiring Harness Main
33Screw (6)
