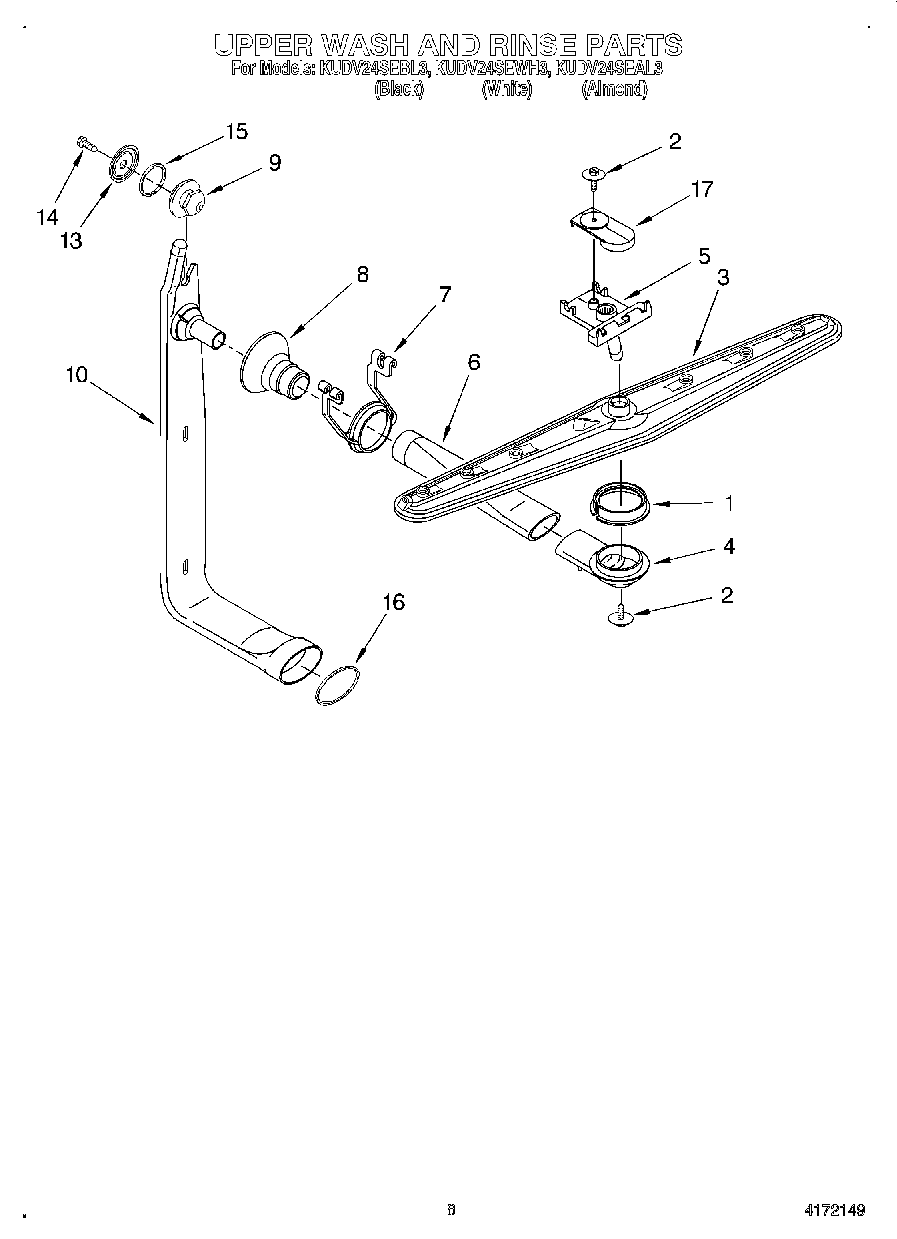

KUDV24SEBL3 07 – UPPER WASH AND RINSE

Products

Position	Product
1	WP3376846 Whirlpool Seal
2	WPW10349488 Whirlpool Screw
5	WP8539324 Whirlpool Dishwasher Upper Spray Arm Mount
6	675808 Whirlpool Dishwasher Middle Spray Arm and Manifold Assembly
7	WP3378186 Whirlpool Dishwasher Holder
9	Connector (Includes Items 13, 14 & 15)
10	Feed Tube Assembly
13	Washer
14	WP9740848 Whirlpool Dishwasher Screw
15	Gasket, Connector
16	Seal, Tube
17	WP8268812 Whirlpool Dishwasher Mounting Assembly
