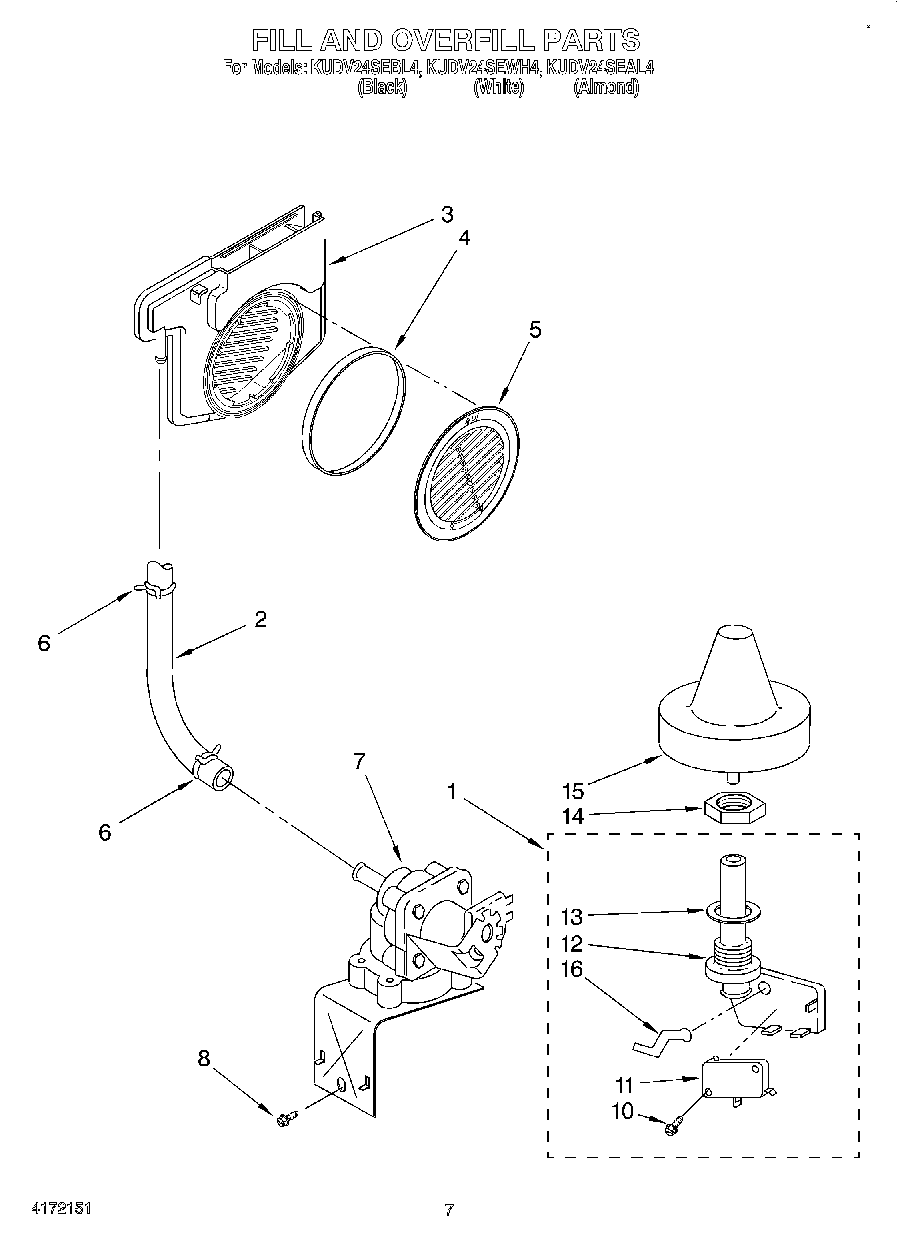

KUDV24SEBL4 06 – FILL AND OVERFILL

Products

Position	Product
1	W10207863 Whirlpool Dishwasher Switch
2	WP9742727 Whirlpool Dishwasher Fill Hose
3	Water Inlet Assembly (Includes Items 4 & 5)
4	Gasket
5	Bezel, Inlet
6	WP596669 Whirlpool Hose Clamp
7	Fill Valve Assembly
8	WP489069 Whirlpool Compactor Screw
10	Screw
11	WP9743413 Whirlpool Dishwasher Switch
12	WP9741997 Whirlpool Dishwasher Standpipe
13	WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
14	WP9741998 Whirlpool Dishwasher Nut
15	Float & Retainer Assembly
16	Lever, Overflow Switch
