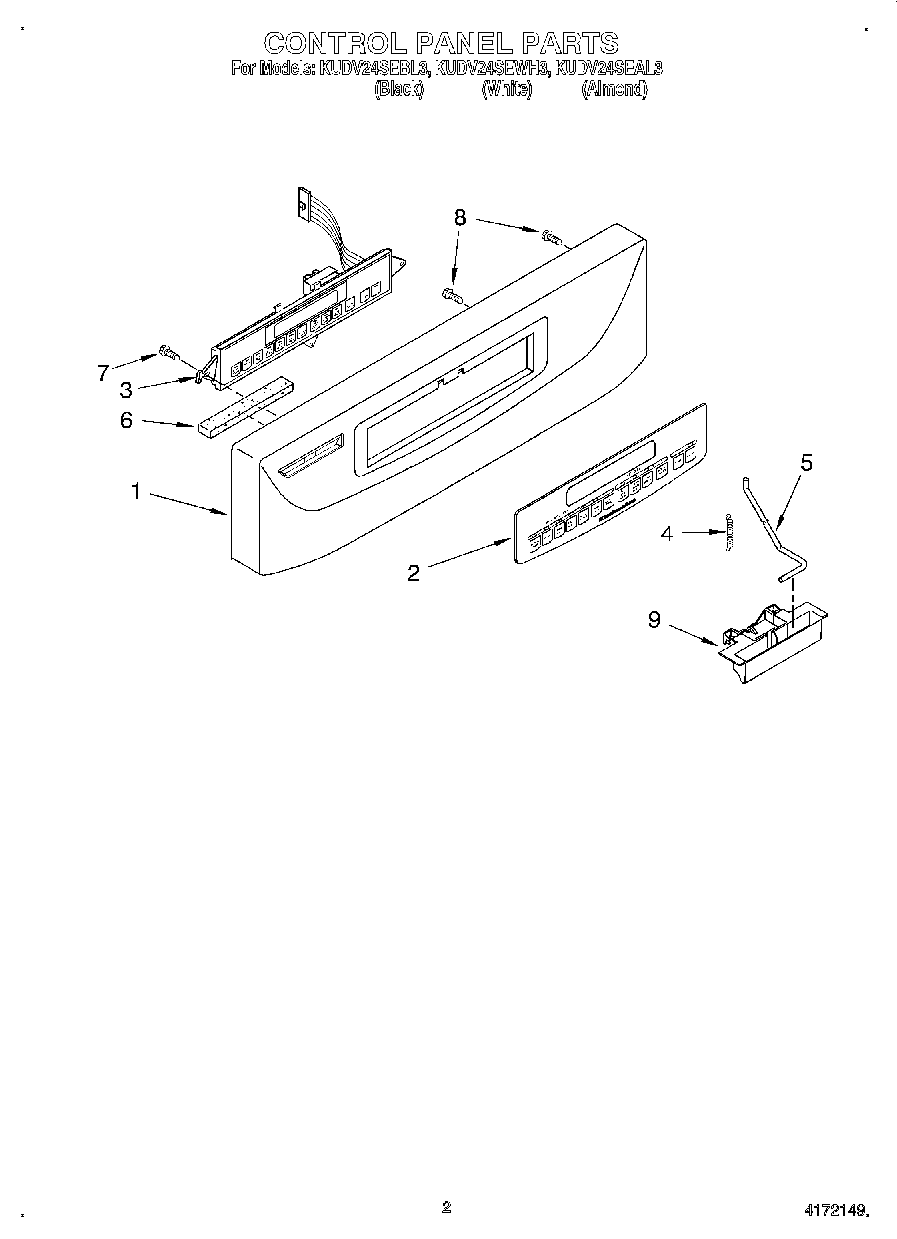

KUDV24SEWH3 02 – CONTROL PANEL

KUDV24SEWH3 02 – CONTROL PANEL

Written by

in

KUDV24SEWH3 02 – CONTROL PANEL

Products

PositionProduct
1Console (Also order Item No.2) (Almond Model)
1Console (Also order Item No.2) (White Model)
1Console (Also Order Item 2) (Black Model)
2Insert (Black Model)
2Insert (White Model)
2Insert (Almond Model)
3Switch, Panel (User Interface)
4WP9743573 Whirlpool Dishwasher Spring
5Link, Handle
6Sponge, Vent
7WP304231 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP9743903 Whirlpool Dishwasher Handle
