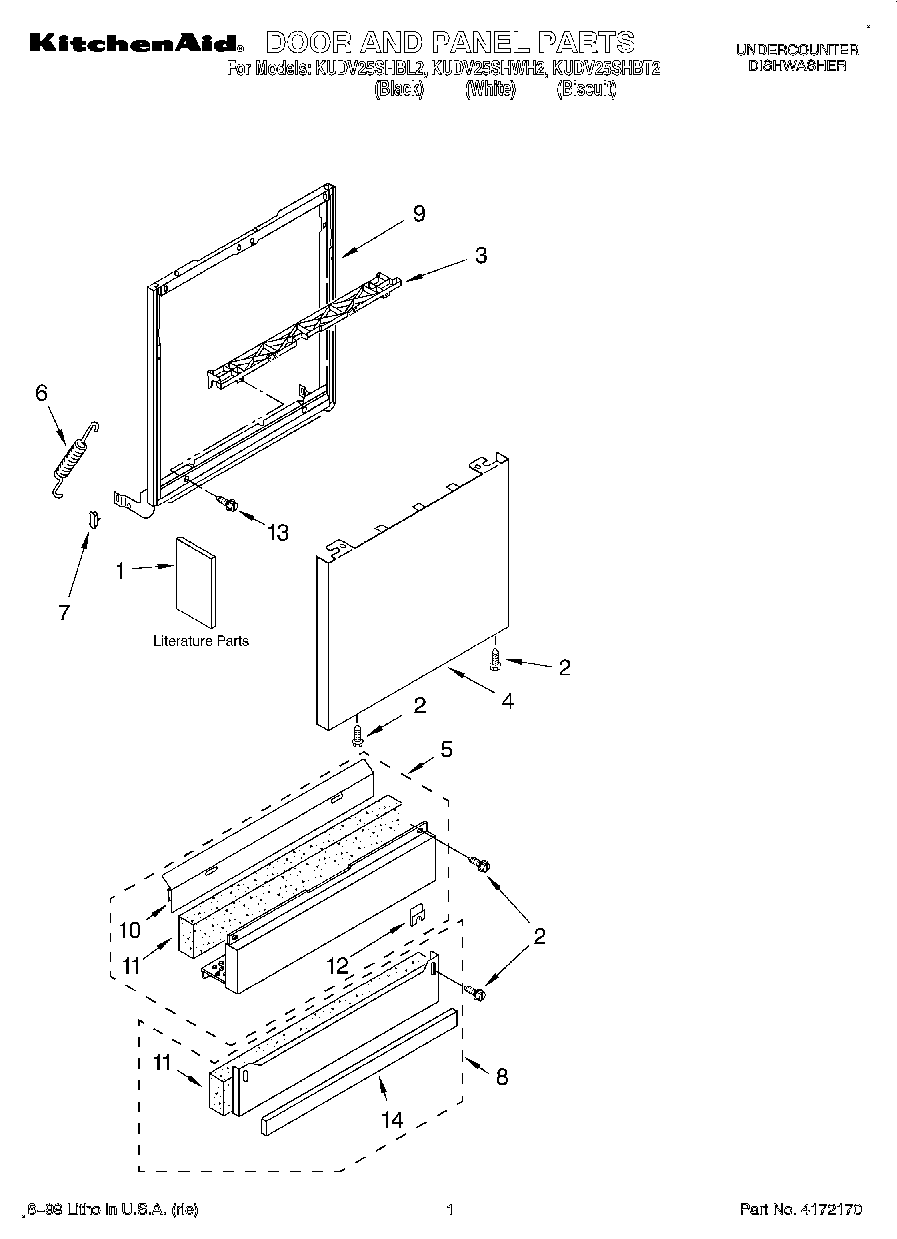

KUDV25SHBL2 01 – DOOR AND PANEL, LITERATURE

Products

PositionProduct
1Instructions, Installation
1Literature Parts (Tech Sheet) (French)
1Literature Parts (Guide, Use & Care Tech Sheet)
1Literature Parts (Energy Guide)
1Literature Parts (Tech Sheet) (English)
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel, Front (Biscuit)
4Panel Front (White Model)
4Panel Front (Black Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Biscuit Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (Black Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8WP3379921 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit Model)
8WP3379920 Whirlpool Dishwasher Toe Panel
9WP9743028 Whirlpool Dishwasher Frame
10Barrier, Lower Vent
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
14Seal, Toe Panel
