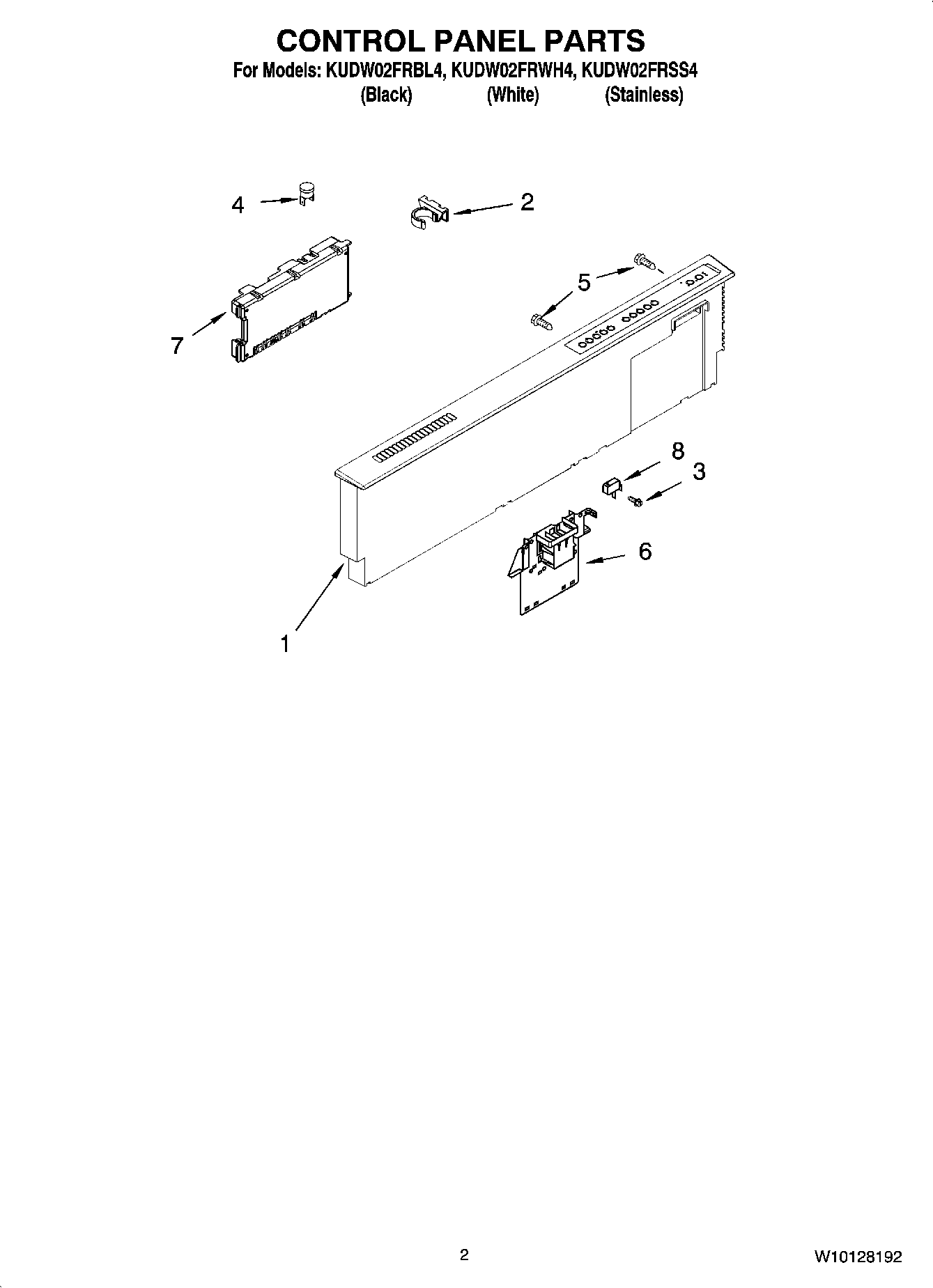

KUDW02FRBL4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Assembly (Includes Insert) (Stainless)
1	Console Assembly (Includes Insert) (White)
1	Console Assembly (Includes Insert) (Black)
2	Clip, BI-Metal
3	WP3400412 Whirlpool Dishwasher Screw
4	W10258275 Whirlpool Dishwasher Bimetal Fuse
5	WPW10348409 Whirlpool Screw
6	8193830 Whirlpool Dishwasher Door Latch Switch Kit
7	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
8	WP8269209 Whirlpool Door Switch
