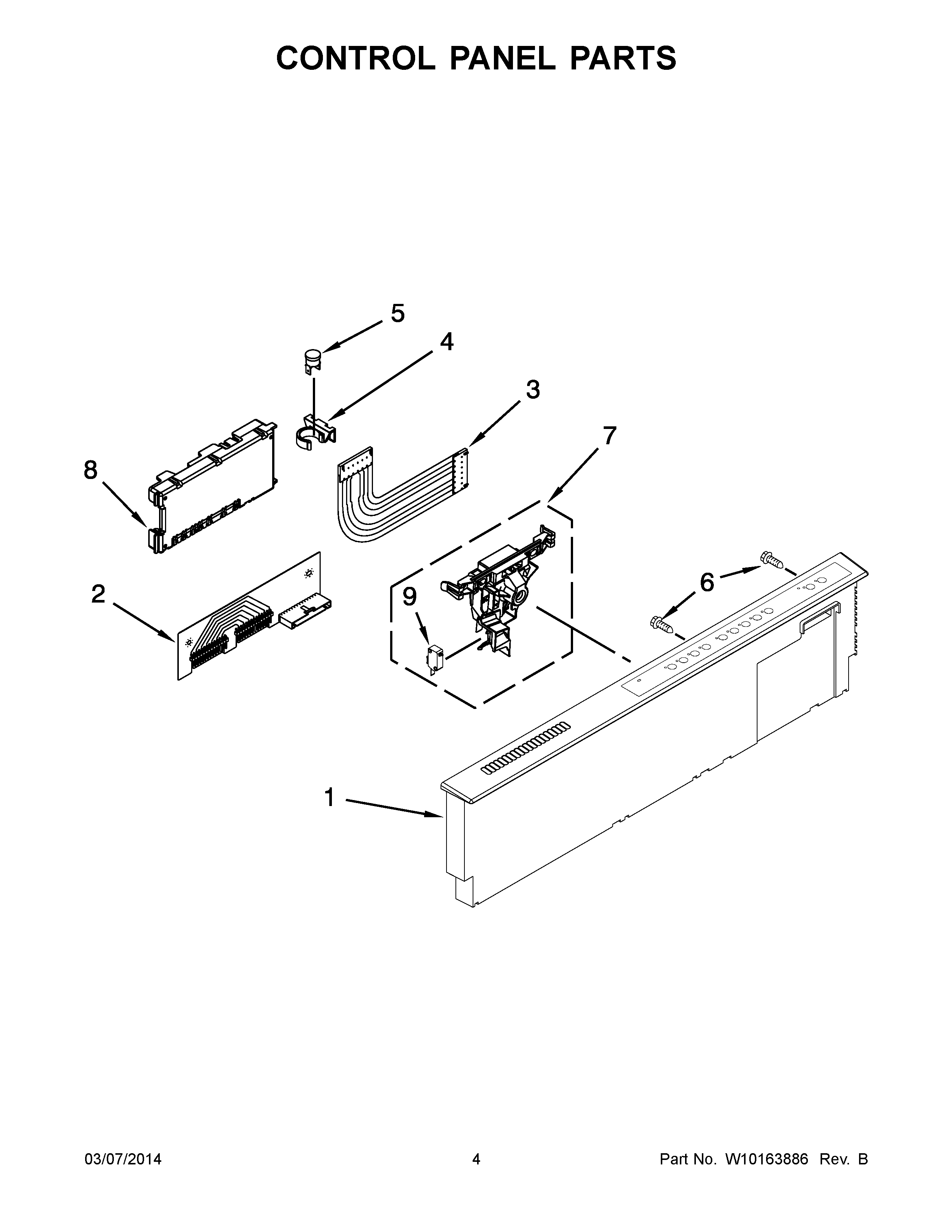

KUDW03CTBL1 03 – CONTROL PANEL PARTS

KUDW03CTBL1 03 – CONTROL PANEL PARTS

Written by

in

KUDW03CTBL1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Assembly (Stainless)
1CONSOLE ASSEMBLY (WHITE)
1WP8572354 Whirlpool Dishwasher Console
2WP8531873 Whirlpool Dishwasher Control Board
3CABLE-RIBBON
4Clip, BI-Metal
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WPW10348409 Whirlpool Screw
7WPW10404412 Whirlpool Door Latch
8WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
9WPW10134019 Whirlpool Dishwasher Switch
