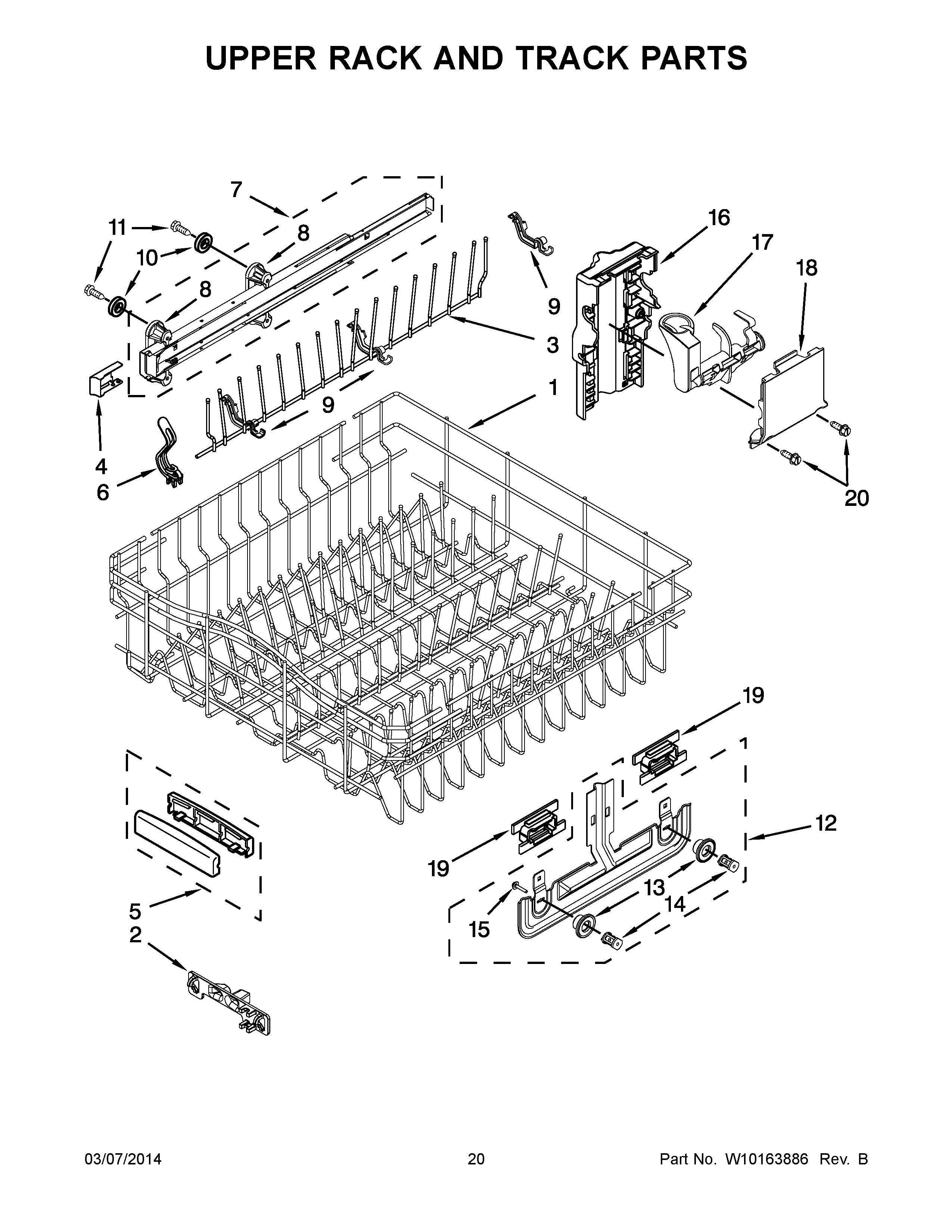

KUDW03CTBL1 11 – UPPER RACK AND TRACK PARTS

KUDW03CTBL1 11 – UPPER RACK AND TRACK PARTS

Written by

in

KUDW03CTBL1 11 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2WP8539102 Whirlpool Dishwasher Positioner
3W10727426 Whirlpool Dishwasher Rack Tine
5Handle, Dishrack
6WPW10077844 Whirlpool Dishwasher Clip
7WPW10247512 Whirlpool Upper Slide Rail Left Side
7WPW10247511 Whirlpool Dishwasher Track
8Mount, Track (Also Order Item 18)
9WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
10WP9743002 Whirlpool Dishwasher Gasket
11WPW10348407 Whirlpool Dishwasher Screw
12W10728567 Whirlpool Dishwasher Adjuster
13WP8270138 Whirlpool Dishwasher Upper Wheel
14WP8268703 Whirlpool Dishwasher Rack Axle
15WP8281156 Whirlpool Dishwasher Screw
16W10728563 Whirlpool Dishwasher Housing
17Actuator, Adjuster (Right Hand)
17Actuator, Adjuster (Left Hand)
18W10728561 Whirlpool Dishwasher Cover
19W10728566 Whirlpool Dishwasher Positioner
20WP9741232 Whirlpool Dishwasher Screw
