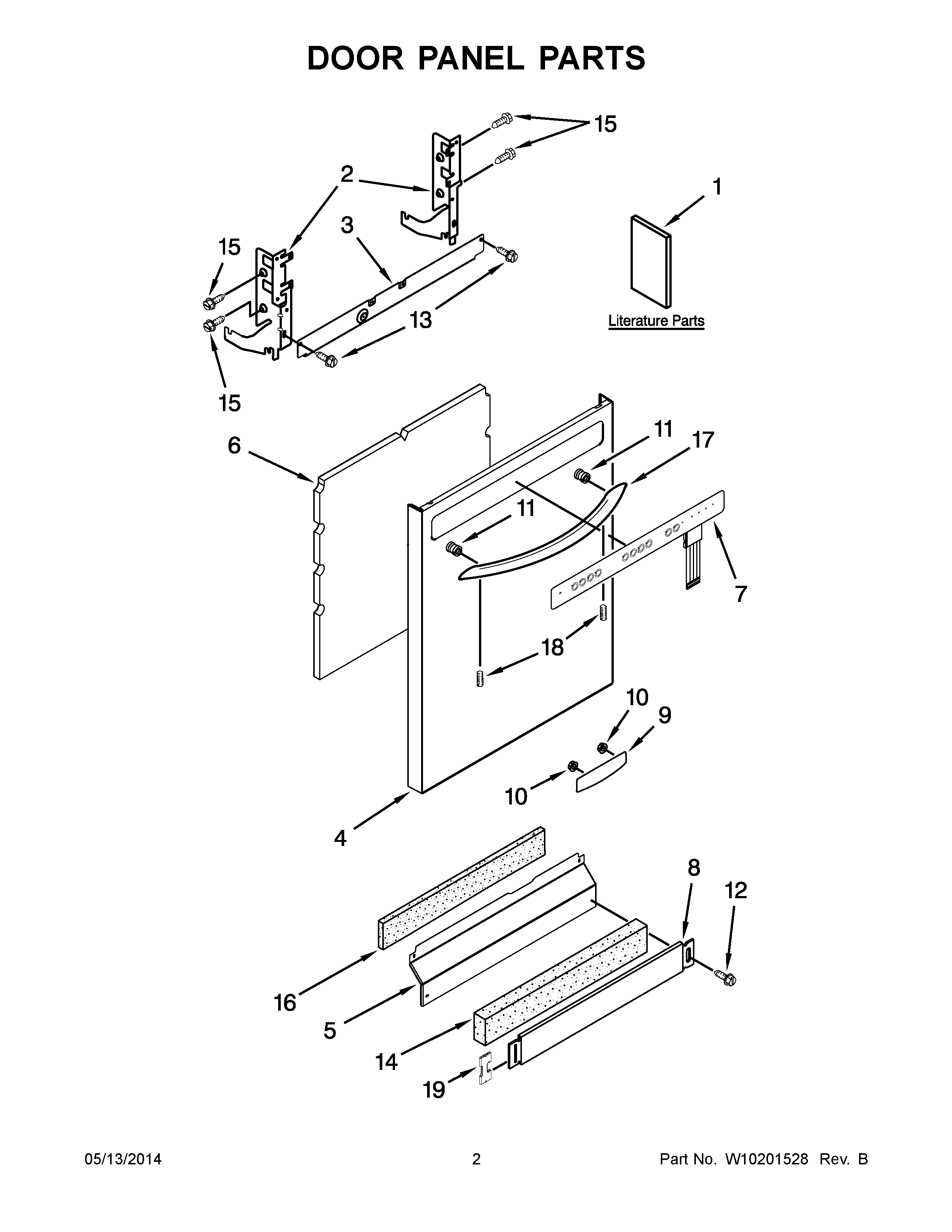

KUDW03CTBL3 02 – DOOR PANEL PARTS

Products

PositionProduct
1Tech Sheet
1Guide, Use & Care Spanish
1Guide, Use & Care (English/French)
1Energy Guide
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 6, 9, 10 & 11) (Black)
4Panel Front (Includes Items 6, 9, 10 & 11) (White)
4Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
5W10909066 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Bezel, Console (Black)
7Bezel, Console (White)
7WPW10077797 Whirlpool Dishwasher Overlay
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
9W10021860 Whirlpool Dishwasher Nameplate
9W10021870 Whirlpool Nameplate
9W10021850 Whirlpool Dishwasher Nameplate
10WP2004333 Whirlpool Refrigerator Nut
11WP8564951 Whirlpool Dishwasher Stud
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14SHIELD
15WP3400071 Whirlpool Screw
17Handle Assy (Includes Items 7) (White)
17Handle Assy (Includes Items 7) (Black)
17W10195738A Whirlpool Stainless Steel Door Handle
18WP8534008 Whirlpool Screw
19WP8269016 Whirlpool Clip Assembly
