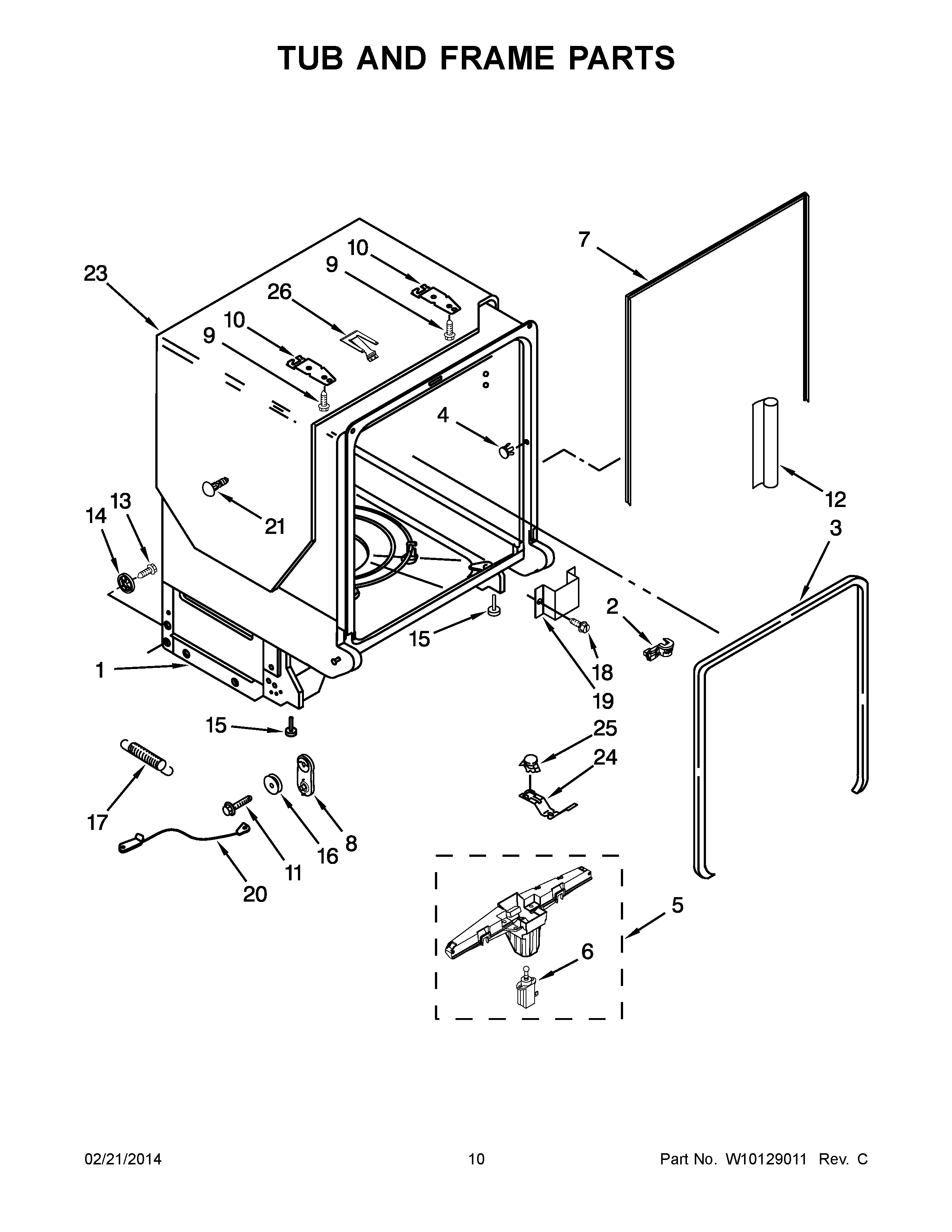

KUDW03CTSS0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WP8572661 Whirlpool Dishwasher Actuator
6	8559844 Whirlpool Dishwasher Motor Assembly
7	SEAL
8	8194001 Whirlpool Dishwasher Door Balance Link Kit
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	Barrier, Moisture Undercounter
13	Screw (2)
14	WP8268977 Whirlpool Dishwasher Wheel
15	8193716 Whirlpool Leveling Leg
16	WP8524474 Whirlpool Dishwasher Wheel Assembly
17	SPRING
18	WP3400892 Whirlpool Dishwasher Screw
19	WP8268991 Whirlpool Dishwasher Cover Assembly
21	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	Strike, Latch
