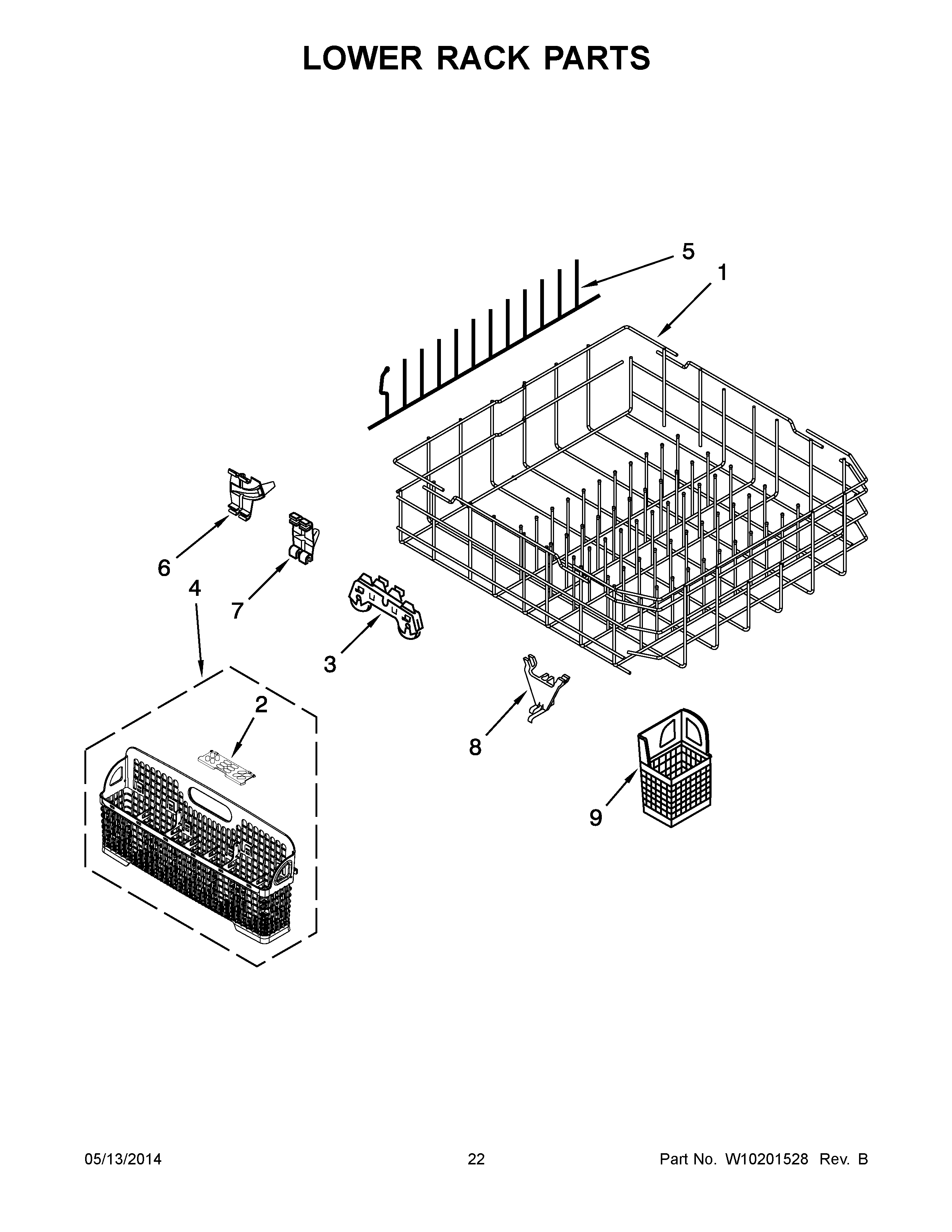

KUDW03CTSS3 12 – LOWER RACK PARTS

KUDW03CTSS3 12 – LOWER RACK PARTS

Written by

in

KUDW03CTSS3 12 – LOWER RACK PARTS

Products

PositionProduct
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519662 Whirlpool Dishwasher Lid
3WPW10082868 Whirlpool Wheel
4WP8531288 Whirlpool Silverware Basket
5W10728160 Whirlpool Tine Assembly
6WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
7WP8531314 Whirlpool Dishwasher Retainer
8WPW10078227 Whirlpool Dishwasher Pivot Tine
9BASKET, UTENSIL
