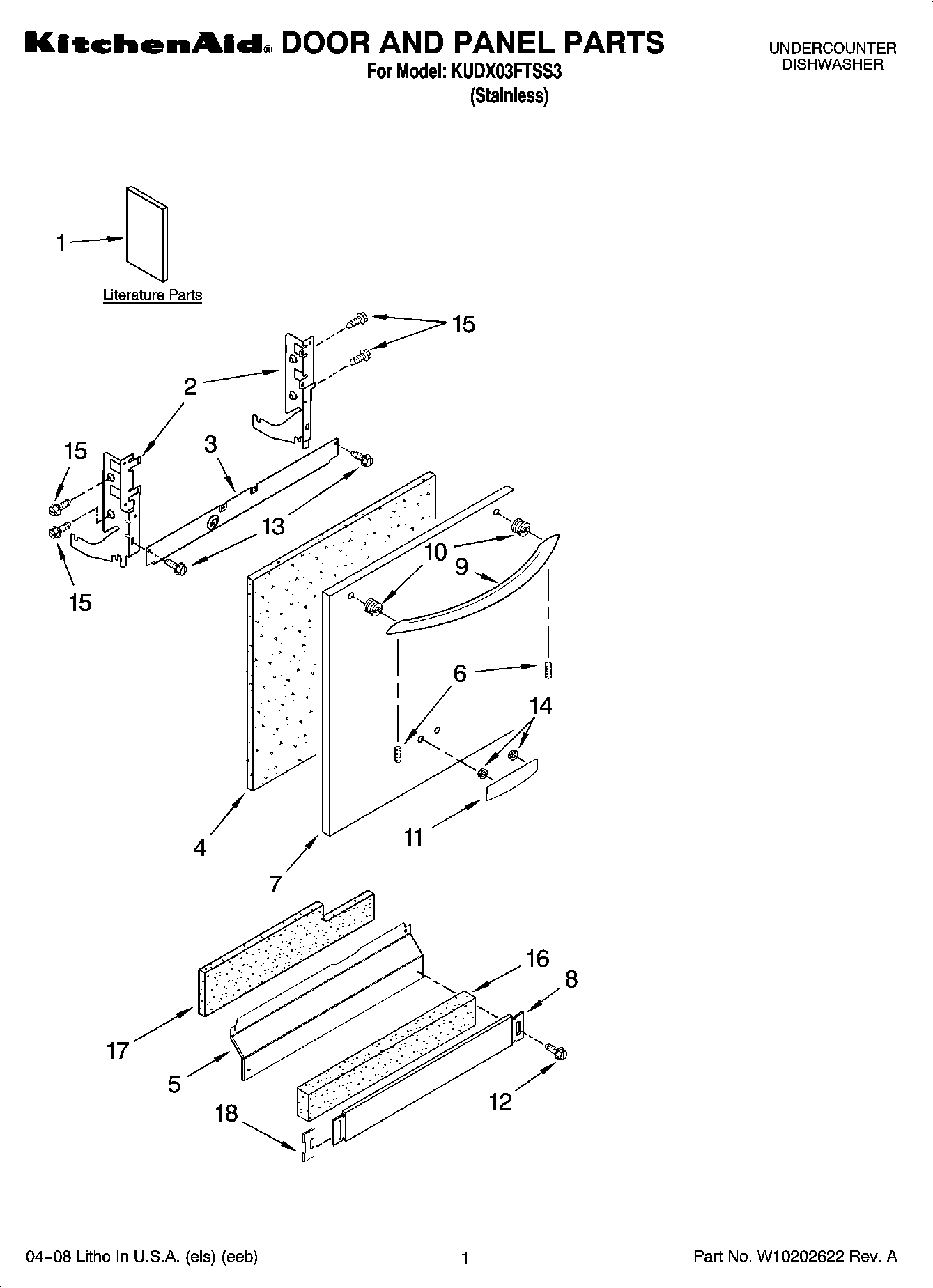

KUDX03FTSS3 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care Spanish
1Tech Sheet
1Energy Guide
1Guide, Use & Care (English/French)
1Instructions, Installation
2W11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10073520 Whirlpool Dishwasher Insulation Pad
5PANEL
6WP8534008 Whirlpool Screw
7Panel, Full Front (Includes Items 4, 10, 11 & 14) (Stainless)
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10195738A Whirlpool Stainless Steel Door Handle
10WP8564951 Whirlpool Dishwasher Stud
11W10021850 Whirlpool Dishwasher Nameplate
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14WP2004333 Whirlpool Refrigerator Nut
15WP3400071 Whirlpool Screw
16SHIELD
18WP8269016 Whirlpool Clip Assembly
