KUDY25SHWH1 01 – DOOR AND PANEL, LITERATURE

KUDY25SHWH1 01 – DOOR AND PANEL, LITERATURE

Written by

in

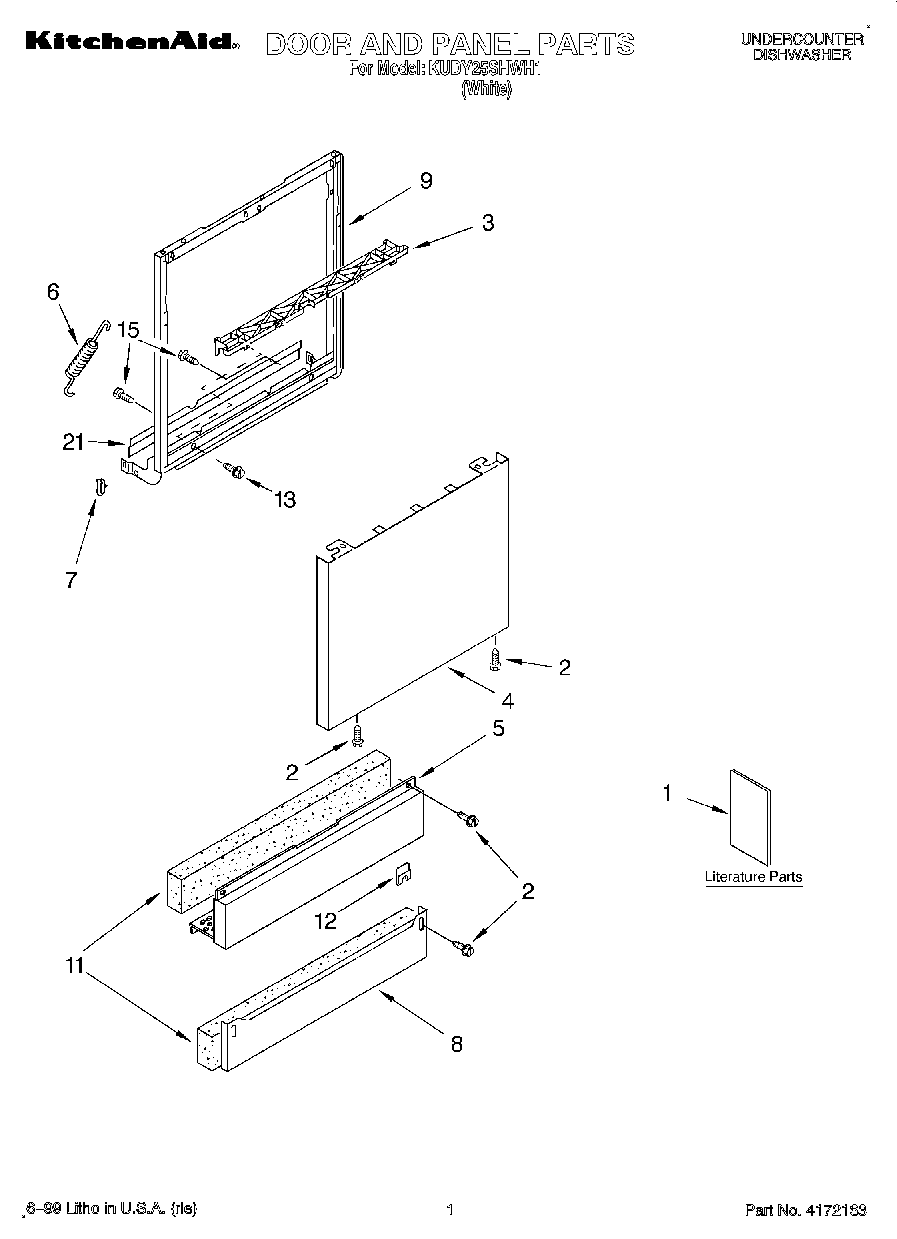

KUDY25SHWH1 01 – DOOR AND PANEL, LITERATURE

Products

PositionProduct
1Literature Parts (Guide, Energy)
1Guide, Use & Care
1Literature Parts (Tech Sheet) (French)
1Instructions, Installation
1Literature Parts (Tech Sheet) (English)
2WP302868 Whirlpool Screw
3Stiffener, Door
4Panel Front (White Model)
5Access Panel & Clip Assembly (Includes Items 11 & 12) (White Model)
6WP9743986 Whirlpool Spring
7WP3373234 Whirlpool Dishwasher Bearing
8WP3379921 Whirlpool Dishwasher Toe Panel
9WP9743028 Whirlpool Dishwasher Frame
11Insulation
12Clip, Grounding
13WP308685 Whirlpool Microwave Screw
15WP488234 Whirlpool Air Conditioner Screw
21Barrier, Lower vent
