KUIA15NLHS4 01 – CABINET LINER AND DOOR PARTS
Written by
in

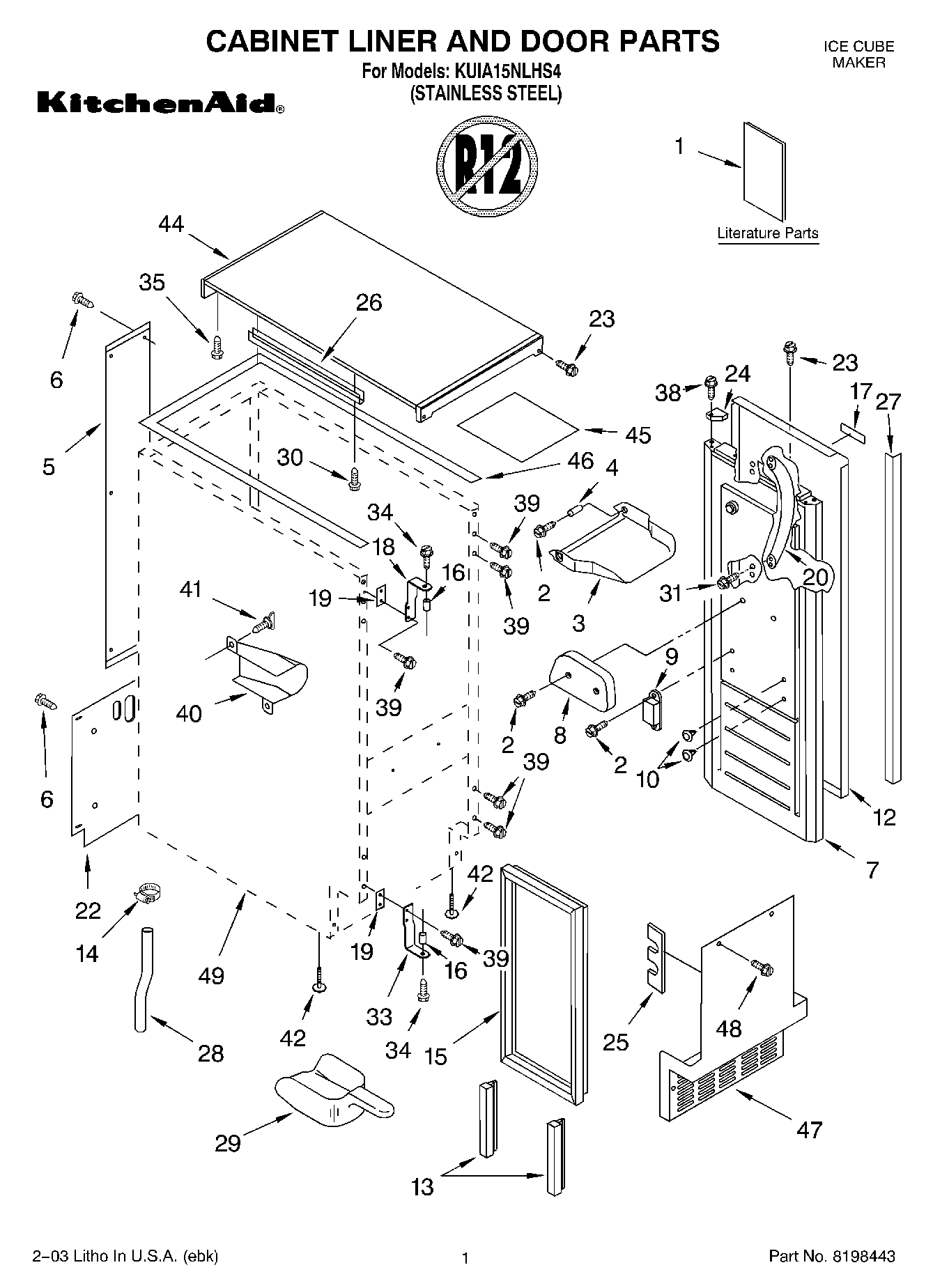

KUIA15NLHS4 01 – CABINET LINER AND DOOR PARTS
Products
Position
Product
1
Literature Parts (Use & Care Guide)
1
Literature Parts (Service & Wiring Sheet)
2
WP3400886 Whirlpool Refrigerator Screw
3
BIN, DOOR
4
2185678 Whirlpool Refrigerator Spacer
5
2217394 Whirlpool Refrigerator Wire Cover
6
WP489442 Whirlpool Refrigerator Screw
7
Door
8
2185695 Whirlpool Refrigerator Door Cam
9
W11223751 Whirlpool Refrigerator Catch Assembly
10
WP2189000 Whirlpool Refrigerator Handle Plug
12
Wrap, Door
13
2217367 Whirlpool Refrigerator Door Gasket
14
WP489503 Whirlpool Refrigerator Clamp
15
WP2217294 Whirlpool Refrigerator Door Gasket
16
2185640 Whirlpool Refrigerator Sleeve
17
Nameplate
18
2185710 Whirlpool Refrigerator Hinge
19
2185709 Whirlpool Refrigerator Shim
20
Handle, Bar
22
WPW10136199 Whirlpool Refrigerator Unit Cover
23
Screw
24
Filler, Endcap (Left Side)
24
2185656B Whirlpool Floor Endcap
25
W10532250 Whirlpool Refrigerator Foam Pad
26
2185691 Whirlpool Refrigerator Channel
27
2185964 Whirlpool Refrigerator Guard Edge
28
WP2185989 Whirlpool Refrigerator Tube
29
W11420408 Whirlpool Refrigerator Ice Scoop
30
WP3400884 Whirlpool Refrigerator Screw
31
WP179051 Whirlpool Screw
33
2185711 Whirlpool Refrigerator Hinge
34
2185712 Whirlpool Refrigerator Hinge Pin
35
WP250830 Whirlpool Refrigerator Screw
38
NAMEPLATE
39
WP999367 Whirlpool Refrigerator Screw
40
2185927 Whirlpool Refrigerator Holder
41
Thumbscrew
42
8193716 Whirlpool Leveling Leg
44
Top
45
2185690 Whirlpool Shield Assembly
46
W11624957 Whirlpool Refrigerator Top Gasket
47
WP2185571B Whirlpool Refrigerator Grille
48
WP489474 Whirlpool Refrigerator Screw
49
Cabinet & Liner
49
Cleaner, Stainless Steel
49
VALVE, ACCESS (5/8“)
49
212643 Whirlpool Refrigerator Permagum Sealer
49
876370 Whirlpool Refrigerator Insulation
49
WP505587 Whirlpool Refrigerator Sealer
49
WP503695 Whirlpool Refrigerator Sealer
49
978026 Whirlpool Refrigerator Primary Valve
49
978027 Whirlpool Refrigerator Primary Valve
49
W11179302 Whirlpool Ice Machine Cleaner
49
978030 Whirlpool Refrigerator Valve
49
WP978025 Whirlpool Refrigerator Valve
49
VALVE, ACCESS (1/2“)
49
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
49
WPL ARI116343A
←
