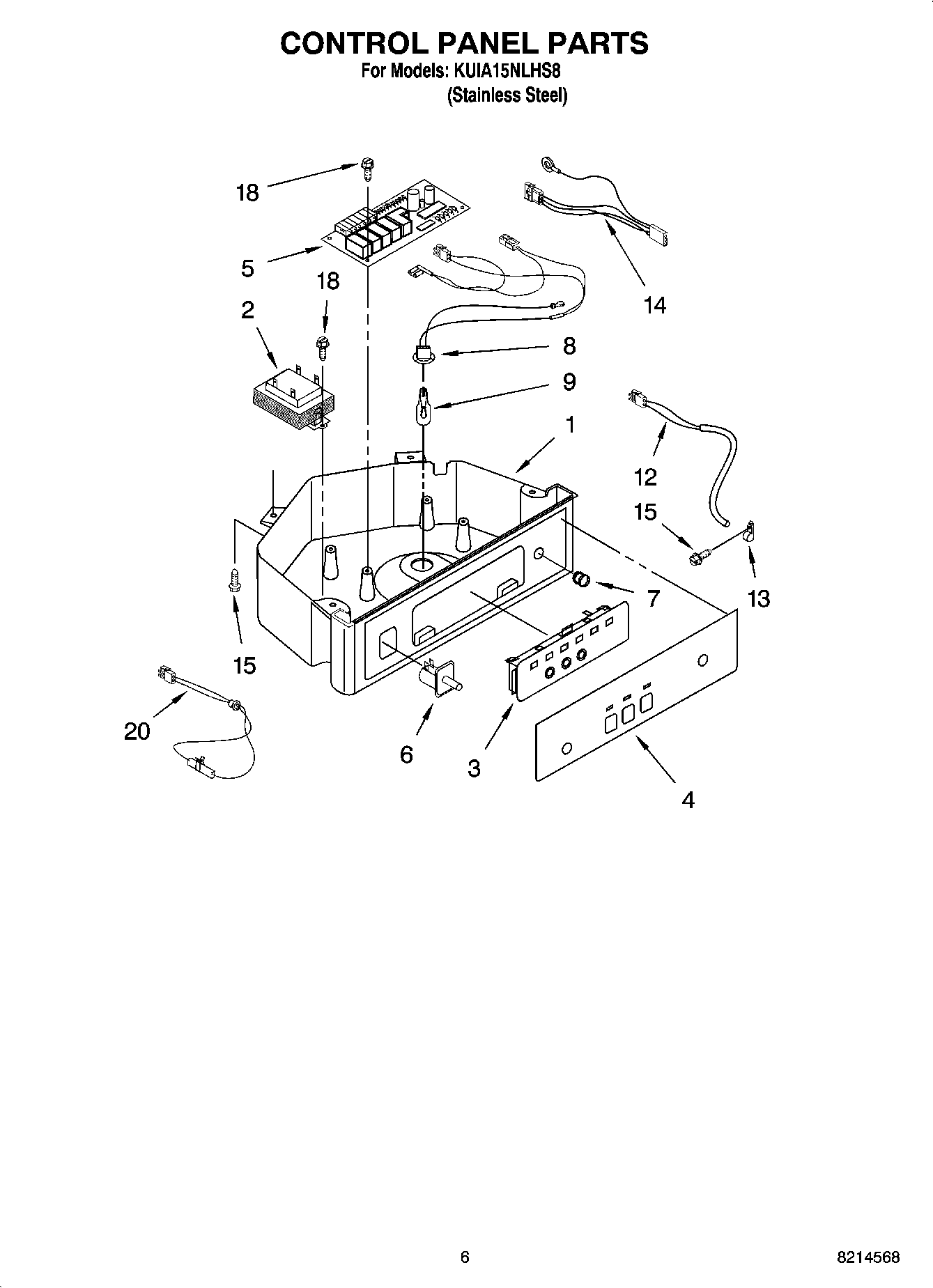

KUIA15NLHS8 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Box, Control
2	Transformer
3	Assembly, Switch (ALSO ORDER 4)
4	Overlay
5	Control Board
6	WP2149705 Whirlpool Refrigerator Door Switch
7	Lens, LED
8	Wiring Harness Grid/ Light
9	Bulb, Light (Pkg. Of 2)
12	WPW10503764 Whirlpool Refrigerator Thermistor
13	2185825 Whirlpool Refrigerator Clamp
14	Wiring Harness, Main to Pump,
15	WP3400884 Whirlpool Refrigerator Screw
18	WP489443 Whirlpool Refrigerator Screw
20	WP2313635 Whirlpool Refrigerator Thermistor
