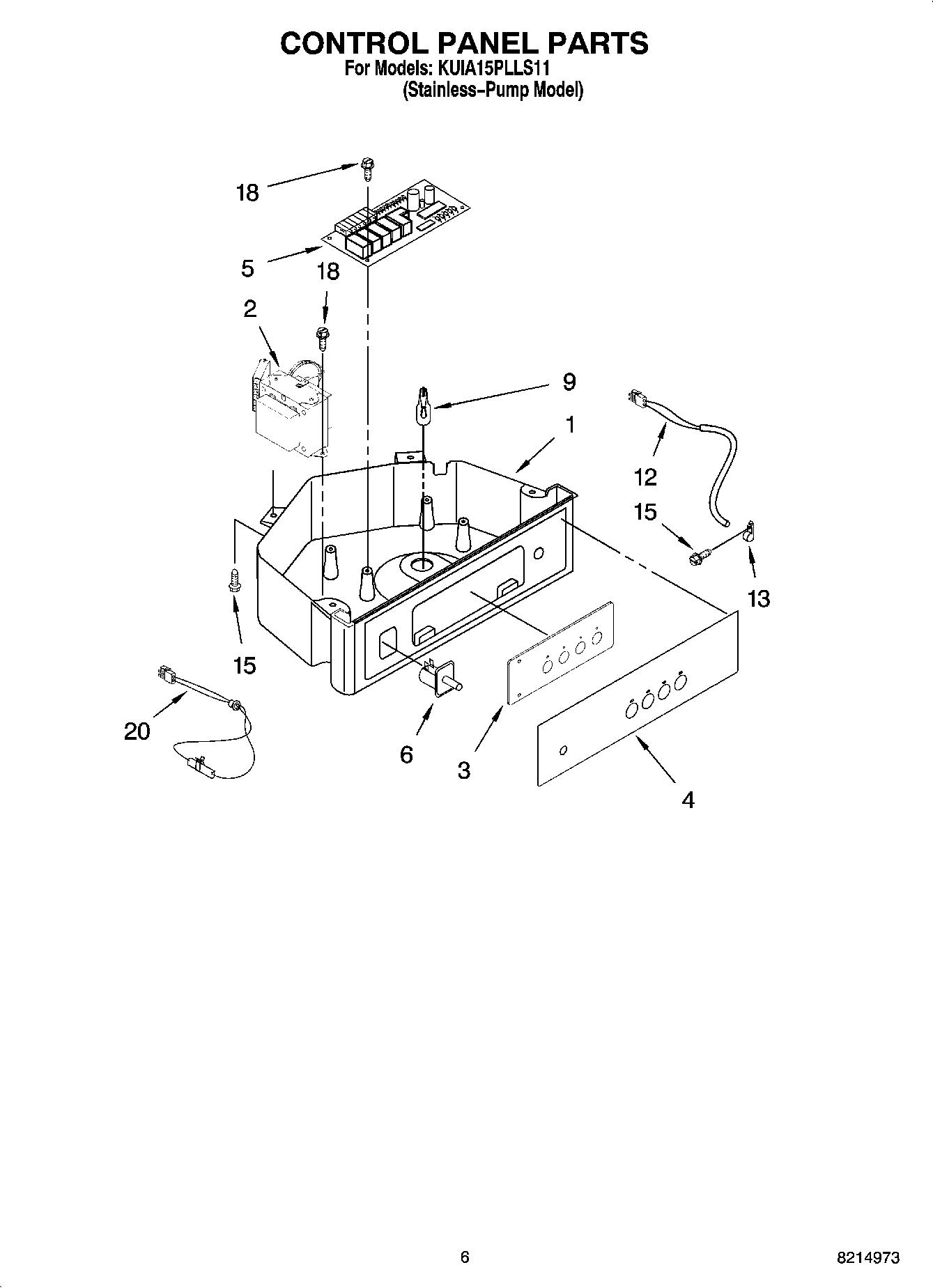

KUIA15PLLS11 04 – CONTROL PANEL PARTS

KUIA15PLLS11 04 – CONTROL PANEL PARTS

Written by

in

KUIA15PLLS11 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Box, Control
2WP2310139 Whirlpool Refrigerator Transformer
3Assembly, Switch (ALSO ORDER 4)
4Overlay
5WPW10141364-includeCORE Whirlpool WPW10141364 Refrigerator Electronic Control Board + Core
6WP2149705 Whirlpool Refrigerator Door Switch
9Bulb, Light (Pkg. Of 2)
12WPW10503764 Whirlpool Refrigerator Thermistor
132185825 Whirlpool Refrigerator Clamp
15WP3400884 Whirlpool Refrigerator Screw
18WP489443 Whirlpool Refrigerator Screw
20WP2313635 Whirlpool Refrigerator Thermistor
