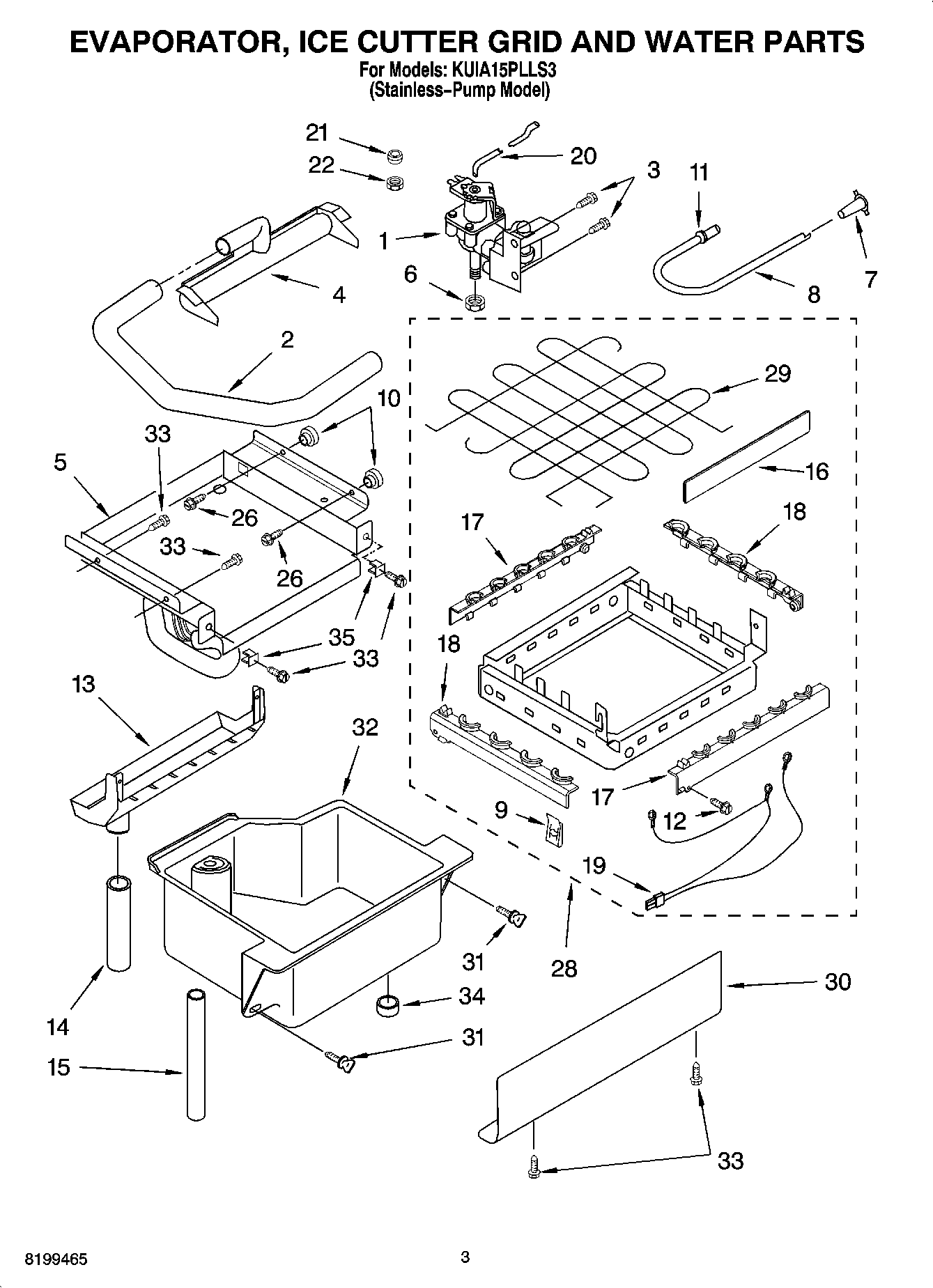

KUIA15PLLS3 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTSadmin2025-04-26T12:42:05+00:00KUIA15PLLS3 02 – EVAPORATOR ICE CUTTER GRID AND WATER PARTS ProductsPositionProduct1W10801996 Whirlpool Water Inlet Valve3WP488163 Whirlpool Refrigerator Screw4W10863947 Whirlpool Refrigerator Tube5WPW10218037 Whirlpool Refrigerator Evaporator6WP627018 Whirlpool Refrigerator Nut74387491 Whirlpool Refrigerator Insert8W10823511 Whirlpool Refrigerator Water Tube9488660 Whirlpool Refrigerator Nut10836667 Whirlpool Refrigerator Spacer11Fastener, Pushnut12WP489443 Whirlpool Refrigerator Screw13WP2185625 Whirlpool Refrigerator Water Pan14WP2185626 Whirlpool Refrigerator Hose15WP2313890 Whirlpool Overflow Hose162313604 Whirlpool Refrigerator Guide17Bracket, Front and Rear188201791 Whirlpool Air Conditioner Spacer192185681 Whirlpool Refrigerator Harness20Tube21WP245183 Whirlpool Nut22WP487627 Whirlpool Refrigerator Sleeve26WP3400886 Whirlpool Refrigerator Screw28WP2313637 Whirlpool Cutting Grid Assembly29GRID302185570 Whirlpool Refrigerator Panel31Thumbscrew32Reservoir, Water33WP3400884 Whirlpool Refrigerator Screw34WP2185696 Whirlpool Cap35WP3400909 Whirlpool Refrigerator Nut
