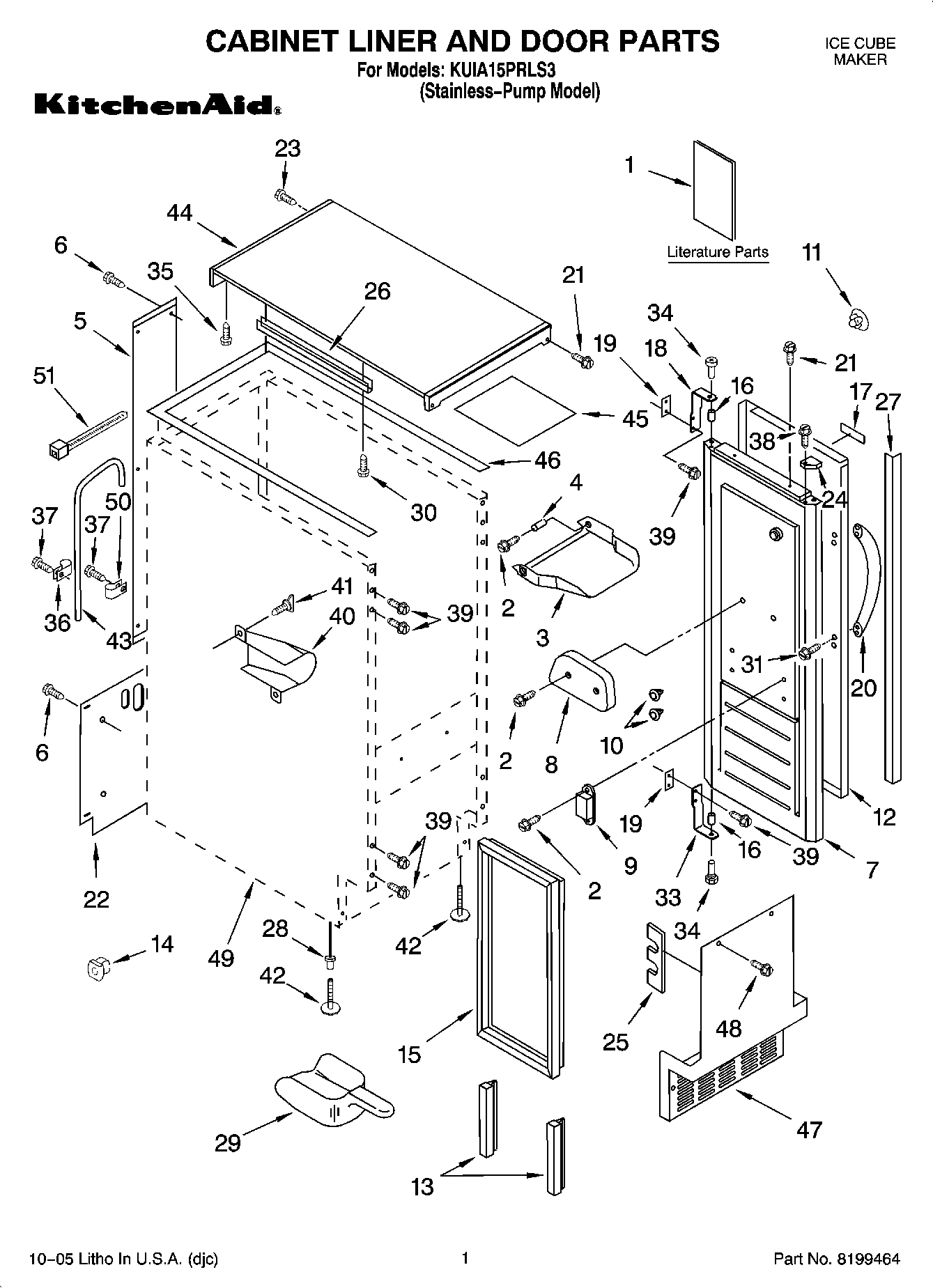

KUIA15PRLS3 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use & Care Guide
2	WP3400886 Whirlpool Refrigerator Screw
3	BIN, DOOR
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	Door
8	2185695 Whirlpool Refrigerator Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	WP941839 Whirlpool Refrigerator Button Plug
11	WP2189000 Whirlpool Refrigerator Handle Plug
12	Wrap, Door
13	2217367 Whirlpool Refrigerator Door Gasket
14	WP692400 Whirlpool Nut
15	WP2217294 Whirlpool Refrigerator Door Gasket
16	2185640 Whirlpool Refrigerator Sleeve
17	Nameplate
18	2185710 Whirlpool Refrigerator Hinge
19	2185709 Whirlpool Refrigerator Shim
20	Handle, Bar
21	Screw, Handle
22	WPW10136199 Whirlpool Refrigerator Unit Cover
23	Screw
24	Filler, Endcap (Left Side)
24	2185656B Whirlpool Floor Endcap
25	W10532250 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
27	2185964 Whirlpool Refrigerator Guard Edge
28	3400240 Whirlpool Refrigerator Nut
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	WP179051 Whirlpool Screw
33	2185711 Whirlpool Refrigerator Hinge
34	2185712 Whirlpool Refrigerator Hinge Pin
35	WP250830 Whirlpool Refrigerator Screw
36	WP2208367 Whirlpool Refrigerator Half Clamp
37	WP489464 Whirlpool Refrigerator Screw
38	NAMEPLATE
39	WP999367 Whirlpool Refrigerator Screw
40	2185927 Whirlpool Refrigerator Holder
41	Thumbscrew
42	8193716 Whirlpool Leveling Leg
43	TUBE
44	Top
45	2185690 Whirlpool Shield Assembly
46	W11624957 Whirlpool Refrigerator Top Gasket
47	WP2185571B Whirlpool Refrigerator Grille
48	WP489474 Whirlpool Refrigerator Screw
49	Cabinet & Liner (Not Serviced)
50	W10861184 Whirlpool Refrigerator Clamp
51	WPW10339879 Whirlpool Wire Tie
