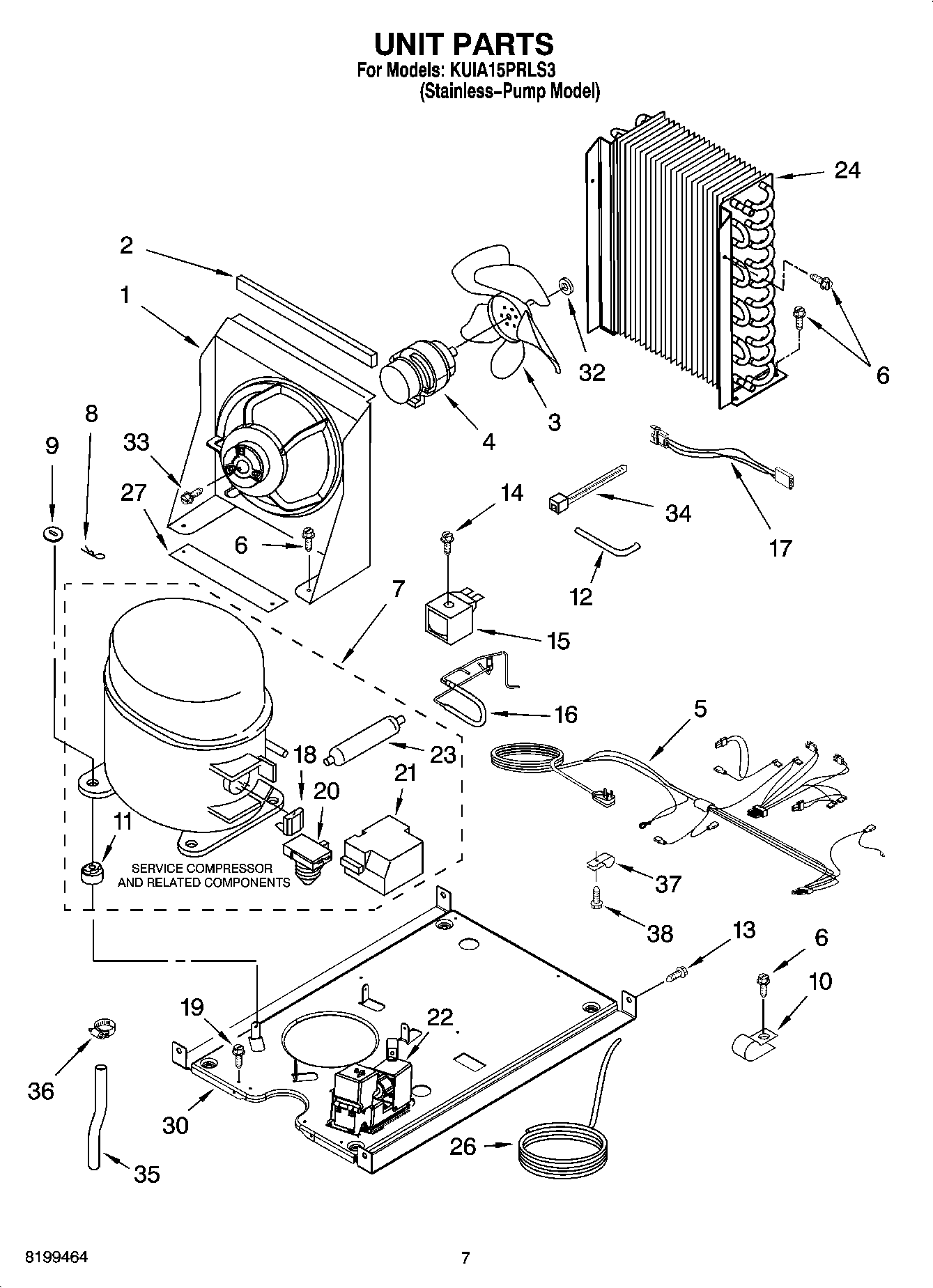

KUIA15PRLS3 05 – UNIT PARTS, OPTIONAL PARTS

KUIA15PRLS3 05 – UNIT PARTS, OPTIONAL PARTS

Written by

in

KUIA15PRLS3 05 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
978027 Whirlpool Refrigerator Primary Valve
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
WP505587 Whirlpool Refrigerator Sealer
978026 Whirlpool Refrigerator Primary Valve
WP503695 Whirlpool Refrigerator Sealer
Cleaner (Stainless Steel)
876370 Whirlpool Refrigerator Insulation
212643 Whirlpool Refrigerator Permagum Sealer
VALVE, ACCESS (5/8“)
WPL ARI116423A
1WP2185532 Whirlpool Refrigerator Bracket
22185675 Whirlpool Refrigerator Foam Pad
3Blade, Fan
4W10822259 Whirlpool Refrigerator Condenser Fan Motor
5Wiring Harness, Complete Unit (Includes Power Cord)
6WP489069 Whirlpool Compactor Screw
7W11735041 Whirlpool Compressor
8A201435 Whirlpool Refrigerator Clip
9A201441 Whirlpool Refrigerator Shim
10CLAMP, POWER CORD
11WP4387558 Whirlpool Refrigerator Compressor Grommet
112185965 Whirlpool Refrigerator Grommet
12W10528572 Whirlpool Refrigerator Tube
13WP999367 Whirlpool Refrigerator Screw
14SCREW
15Coil, Solenoid
16W10724988 Whirlpool Refrigerator Gas Valve
17Wiring Harness, Condenser Fan
18WP2217223 Whirlpool Refrigerator Overload Relay
19WP489128 Whirlpool Refrigerator Screw
20WP2217224 Whirlpool Refrigerator Start Relay
20WP4387938 Whirlpool Refrigerator Overload
21WP2162358 Whirlpool Refrigerator Terminal Cover
221901A Whirlpool Ice Maker Drain Pump Kit
23W10843121 Whirlpool Refrigerator Tube
248201810 Whirlpool Refrigerator Condenser
26Tube, Drain
272217397 Whirlpool Foam Pad
302217445 Whirlpool Refrigerator Base Condenser
32WP486692 Whirlpool Refrigerator Nut
33WP8281196 Whirlpool Screw
34Strap
35Tube, Drain
36WP489503 Whirlpool Refrigerator Clamp
37W11456069 Whirlpool Refrigerator Clamp
38WP3400884 Whirlpool Refrigerator Screw
38REFRIGERANT CHARGE 6.5 OZ. (R134A)
