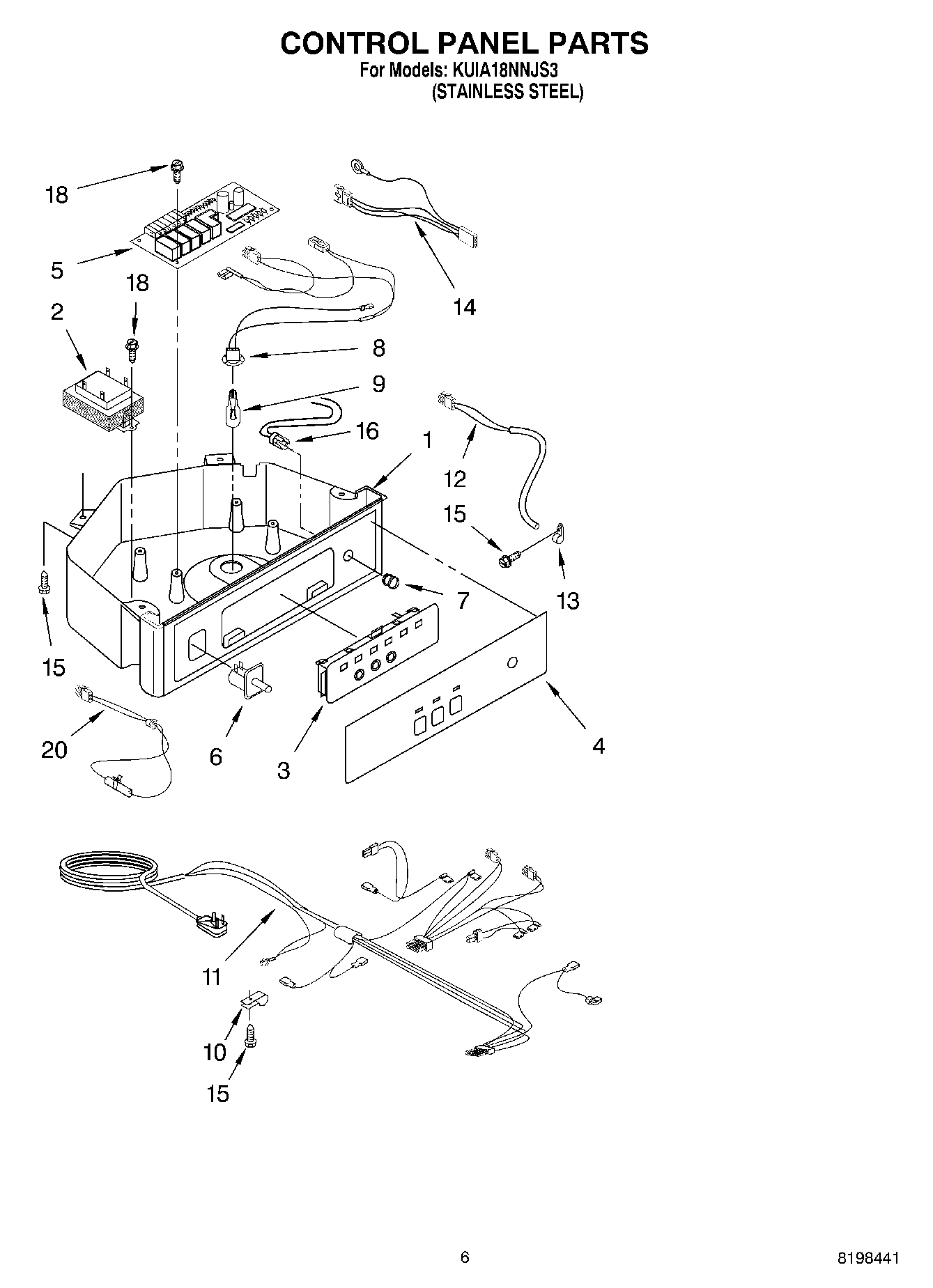

KUIA18NNJS3 04 – CONTROL PANEL PARTS

KUIA18NNJS3 04 – CONTROL PANEL PARTS

Written by

in

KUIA18NNJS3 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Box, Control
2Transformer
3Assembly, Switch (ALSO ORDER 4)
4Overlay
5P.C. Board
6WP2149705 Whirlpool Refrigerator Door Switch
7Lens, LED
8Wiring Harness Grid/ Light
9Bulb, Light (Pkg. Of 2)
10W11456069 Whirlpool Refrigerator Clamp
11Wiring Harness, Complete Unit (Includes Power Cord)
12WPW10503764 Whirlpool Refrigerator Thermistor
132185825 Whirlpool Refrigerator Clamp
14Wiring Harness, Main to Pump,
15WP3400884 Whirlpool Refrigerator Screw
16LED Assembly
18WP489443 Whirlpool Refrigerator Screw
20Thermister, Ice Control
