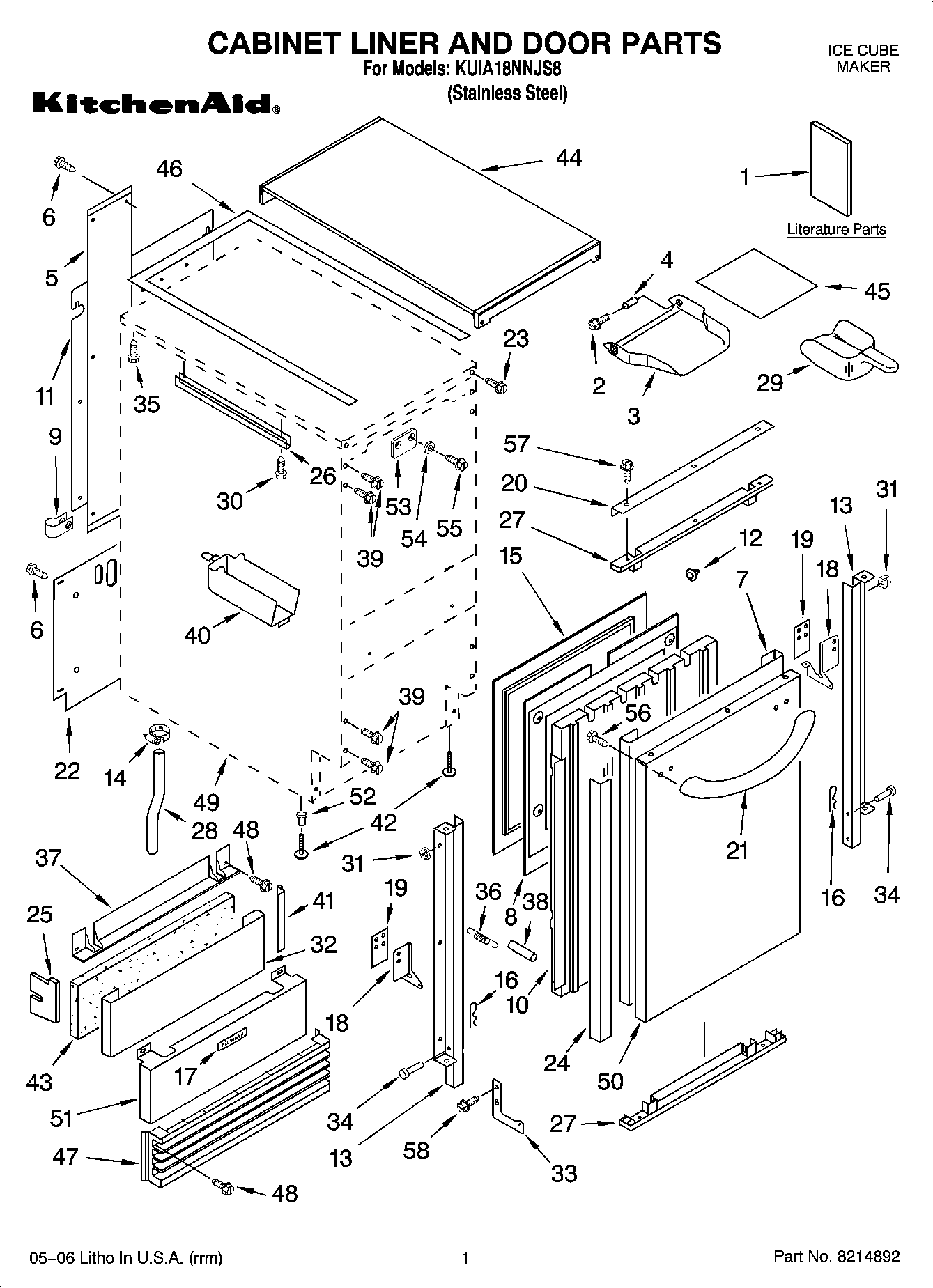

KUIA18NNJS8 01 – CABINET LINER AND DOOR PARTS

KUIA18NNJS8 01 – CABINET LINER AND DOOR PARTS

Written by

in

KUIA18NNJS8 01 – CABINET LINER AND DOOR PARTS

Products

Position	Product
1	Use & Care Guide
1	Service & Wiring Sheet
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	2208352B Whirlpool Refrigerator Panel
8	Panel, Interior
9	WP488366 Whirlpool Refrigerator Clamp
10	2208377 Whirlpool Insulation
11	W10218024 Whirlpool Enclosure
12	WP941839 Whirlpool Refrigerator Button Plug
13	Bracket, Door (Right Side)
13	2217466 Whirlpool Bracket
14	WP489503 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	Clip
17	Nameplate
18	2208425 Whirlpool Refrigerator Hinge
18	2208426 Whirlpool Refrigerator Hinge
19	Shim, Hinge
20	WP2208452B Whirlpool Refrigerator Handle
21	Handle, Bar
22	WPW10136200 Whirlpool Refrigerator Unit Cover
23	Screw, Handle
24	2208595B Whirlpool Guard Edge
25	2217225 Whirlpool Refrigerator Foam Pad
26	2185691 Whirlpool Refrigerator Channel
27	W11413461 Whirlpool Refrigerator Endcap
28	2208453 Whirlpool Refrigerator Tube
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	WP3400884 Whirlpool Refrigerator Screw
31	WP692400 Whirlpool Nut
32	2208382B Whirlpool Refrigerator Grill Panel
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
36	WP2208570 Whirlpool Refrigerator Spring
37	2208383B Whirlpool Refrigerator Endcap
38	Dampener, Spring
39	WP999367 Whirlpool Refrigerator Screw
40	Holder, Scoop
41	2208596B Whirlpool Refrigerator Edge Guard
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	Top
45	2185690 Whirlpool Shield Assembly
46	2217296 Whirlpool Refrigerator Top Gasket
47	WP2217206B Whirlpool Refrigerator Grille
48	WP489474 Whirlpool Refrigerator Screw
49	Cabinet & Liner (Not Serviced)
50	Panel, Wrap
51	2208594S Whirlpool Refrigerator Grill Panel
52	3400240 Whirlpool Refrigerator Nut
53	2208434 Whirlpool Refrigerator Strike
54	WASHER
55	8281191 Whirlpool Oven Screw
56	WP179051 Whirlpool Screw
57	Screw
58	WP488163 Whirlpool Refrigerator Screw
