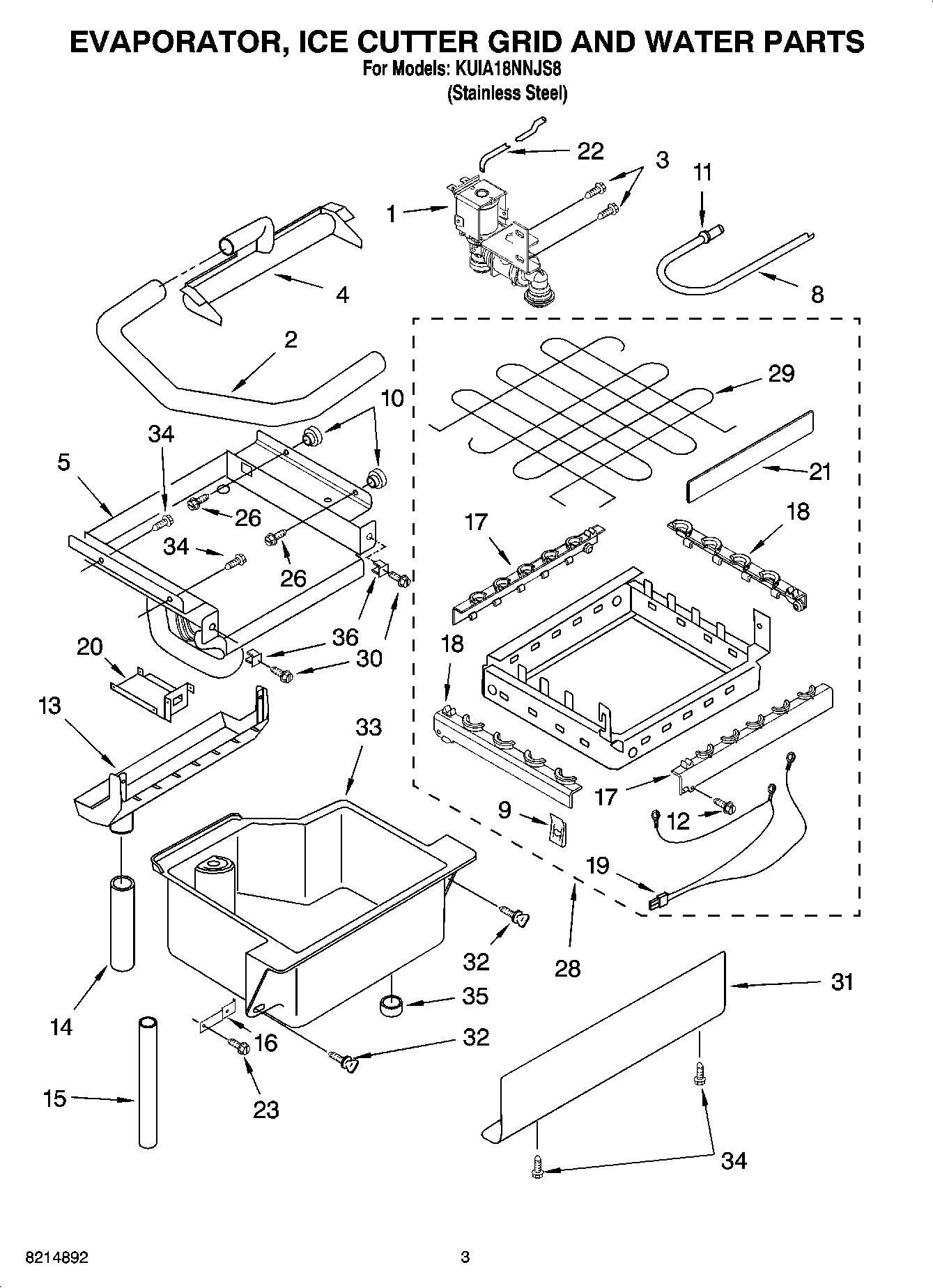

KUIA18NNJS8 02 – EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

Products

Position	Product
1	WPW10217918 Whirlpool Refrigerator Inlet Valve
3	WP488163 Whirlpool Refrigerator Screw
4	W10863947 Whirlpool Refrigerator Tube
5	WPW10218037 Whirlpool Refrigerator Evaporator
8	W10823511 Whirlpool Refrigerator Water Tube
9	488660 Whirlpool Refrigerator Nut
10	836667 Whirlpool Refrigerator Spacer
11	Fastener, Pushnut
12	WP489443 Whirlpool Refrigerator Screw
13	WP2185625 Whirlpool Refrigerator Water Pan
14	WP2185626 Whirlpool Refrigerator Hose
15	WP2313890 Whirlpool Overflow Hose
16	Support, Reservoir Bracket
17	Bracket, Front and Rear
18	8201791 Whirlpool Air Conditioner Spacer
19	2185681 Whirlpool Refrigerator Harness
20	2208427 Whirlpool Refrigerator Support
21	2313604 Whirlpool Refrigerator Guide
22	WP2313745 Whirlpool Refrigerator Tube
26	WP3400886 Whirlpool Refrigerator Screw
28	WP2313637 Whirlpool Cutting Grid Assembly
29	GRID
30	WP90767 Whirlpool Screw
31	2208365 Whirlpool Refrigerator Panel
32	Thumbscrew
33	Reservoir, Water
34	WP3400884 Whirlpool Refrigerator Screw
35	WP2185696 Whirlpool Cap
36	WP3400909 Whirlpool Refrigerator Nut
