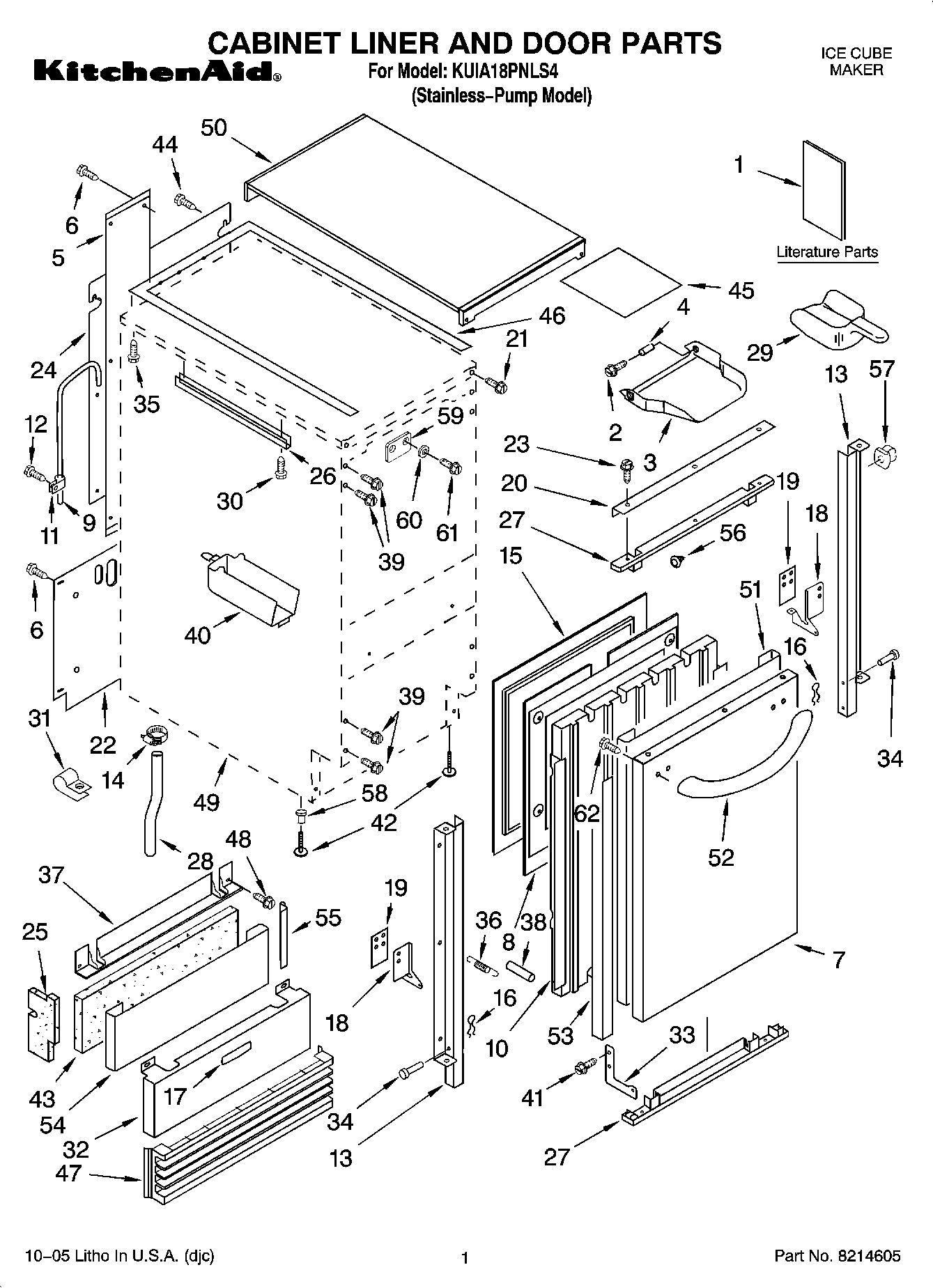

KUIA18PNLS4 01 – CABINET LINER AND DOOR PARTSadmin2025-04-26T12:41:38+00:00KUIA18PNLS4 01 – CABINET LINER AND DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Service & Wiring Sheet |
| 2 | WP3400886 Whirlpool Refrigerator Screw |
| 3 | 2208354 Whirlpool Refrigerator Inner Door |
| 4 | 2185678 Whirlpool Refrigerator Spacer |
| 5 | 2217394 Whirlpool Refrigerator Wire Cover |
| 6 | WP489442 Whirlpool Refrigerator Screw |
| 7 | Panel, Wrap |
| 8 | Panel, Interior |
| 9 | TUBE |
| 10 | 2208377 Whirlpool Insulation |
| 11 | WP2208367 Whirlpool Refrigerator Half Clamp |
| 12 | WP489464 Whirlpool Refrigerator Screw |
| 13 | 2217466 Whirlpool Bracket |
| 13 | Bracket, Door (Right Side) |
| 14 | WP489503 Whirlpool Refrigerator Clamp |
| 15 | W11624959 Whirlpool Refrigerator Door Gasket |
| 16 | Clip |
| 17 | Nameplate |
| 18 | 2208425 Whirlpool Refrigerator Hinge |
| 18 | 2208426 Whirlpool Refrigerator Hinge |
| 19 | Shim, Hinge |
| 20 | WP2208452B Whirlpool Refrigerator Handle |
| 21 | Screw |
| 22 | WPW10136200 Whirlpool Refrigerator Unit Cover |
| 23 | Screw, Handle |
| 24 | W10218024 Whirlpool Enclosure |
| 25 | 2217225 Whirlpool Refrigerator Foam Pad |
| 26 | 2185691 Whirlpool Refrigerator Channel |
| 27 | W11413461 Whirlpool Refrigerator Endcap |
| 28 | Tube, Drain |
| 29 | W11420408 Whirlpool Refrigerator Ice Scoop |
| 30 | WP3400884 Whirlpool Refrigerator Screw |
| 31 | WP488366 Whirlpool Refrigerator Clamp |
| 32 | 2208382B Whirlpool Refrigerator Grill Panel |
| 33 | 2208487 Whirlpool Bracket |
| 34 | Pin, Hinge |
| 35 | WP250830 Whirlpool Refrigerator Screw |
| 36 | WP2208570 Whirlpool Refrigerator Spring |
| 37 | 2208383B Whirlpool Refrigerator Endcap |
| 38 | Dampener, Spring |
| 39 | WP999367 Whirlpool Refrigerator Screw |
| 40 | Holder, Scoop |
| 41 | WP488163 Whirlpool Refrigerator Screw |
| 42 | 8193716 Whirlpool Leveling Leg |
| 43 | 2208384 Whirlpool Refrigerator Insulation |
| 44 | WP90767 Whirlpool Screw |
| 45 | 2185690 Whirlpool Shield Assembly |
| 46 | 2217296 Whirlpool Refrigerator Top Gasket |
| 47 | WP2217206B Whirlpool Refrigerator Grille |
| 48 | WP489474 Whirlpool Refrigerator Screw |
| 49 | Cabinet & Liner (Not Serviced) |
| 50 | Top |
| 51 | Panel, Exterior (Black) |
| 52 | Handle, Bar |
| 53 | 2208595B Whirlpool Guard Edge |
| 54 | 2208594S Whirlpool Refrigerator Grill Panel |
| 55 | 2208596B Whirlpool Refrigerator Edge Guard |
| 56 | WP941839 Whirlpool Refrigerator Button Plug |
| 57 | WP692400 Whirlpool Nut |
| 58 | 3400240 Whirlpool Refrigerator Nut |
| 59 | 2208434 Whirlpool Refrigerator Strike |
| 60 | WASHER |
| 61 | 8281191 Whirlpool Oven Screw |
| 62 | WP179051 Whirlpool Screw |
