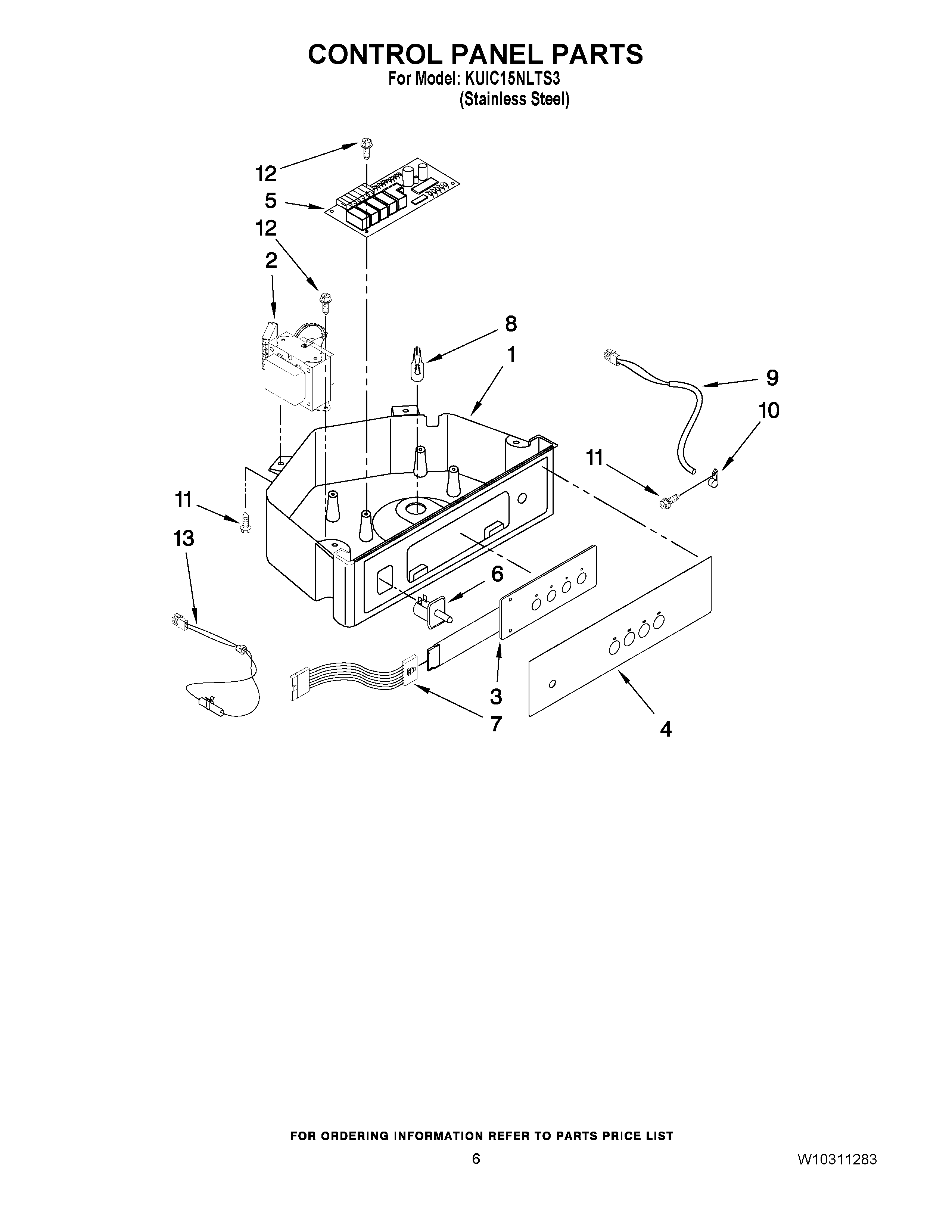

KUIC15NLTS3 04 – CONTROL PANEL PARTS

KUIC15NLTS3 04 – CONTROL PANEL PARTS

Written by

in

KUIC15NLTS3 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Box, Control
2WP2310139 Whirlpool Refrigerator Transformer
3Assembly, Switch (ALSO ORDER 4)
4OVERLAY
5WPW10226156-includeCORE Whirlpool WPW10226156 Refrigerator Electronic Control Board + Core
6WP2149705 Whirlpool Refrigerator Door Switch
7WIRE ASSY
8Bulb, Light (Pkg. Of 2)
9WPW10503764 Whirlpool Refrigerator Thermistor
102185825 Whirlpool Refrigerator Clamp
11WP3400884 Whirlpool Refrigerator Screw
12WP489443 Whirlpool Refrigerator Screw
13WP2313635 Whirlpool Refrigerator Thermistor
