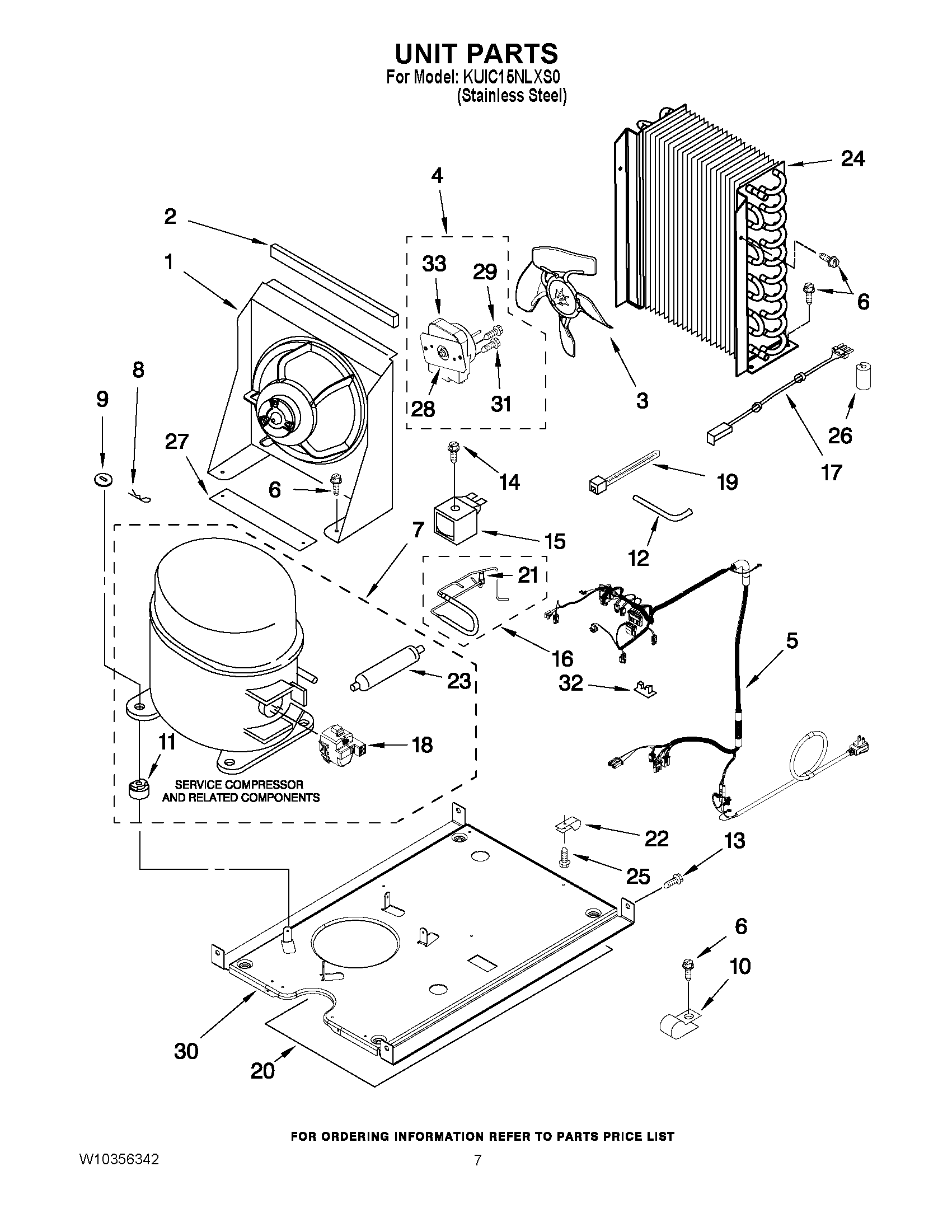

KUIC15NLXS0 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	WP2188935 Whirlpool Refrigerator Fan Blade
5	WIRING HARNESS, COMPLETE UNIT (INCLUDES POWER CORD
6	WP489069 Whirlpool Compactor Screw
7	WPW10605286 Whirlpool Refrigerator Compressor
8	8559320 Whirlpool Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLAMP, POWER CORD
11	WP4387558 Whirlpool Refrigerator Compressor Grommet
11	2185965 Whirlpool Refrigerator Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP999367 Whirlpool Refrigerator Screw
14	SCREW
15	WPW10206473 Whirlpool Refrigerator Coil Solenoid
16	WPW10534030 Whirlpool Refrigerator Gas Valve
17	WP2187629 Whirlpool Refrigerator Wire Jumper
18	WPW10136197 Whirlpool Refrigerator Start Device
19	WPW10339879 Whirlpool Wire Tie
20	W10282061 Whirlpool Tape
21	WP759113 Whirlpool Refrigerator Gas Valve
22	Clamp
23	W10843121 Whirlpool Refrigerator Tube
24	WP2313624 Whirlpool Refrigerator Condenser
25	WP3400884 Whirlpool Refrigerator Screw
26	W10852725 Whirlpool Refrigerator Grommet
27	2217397 Whirlpool Foam Pad
28	Plate
29	8281197 Whirlpool Refrigerator Screw
30	2217445 Whirlpool Refrigerator Base Condenser
31	WP8281196 Whirlpool Screw
32	CLIP, WIRING
33	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
