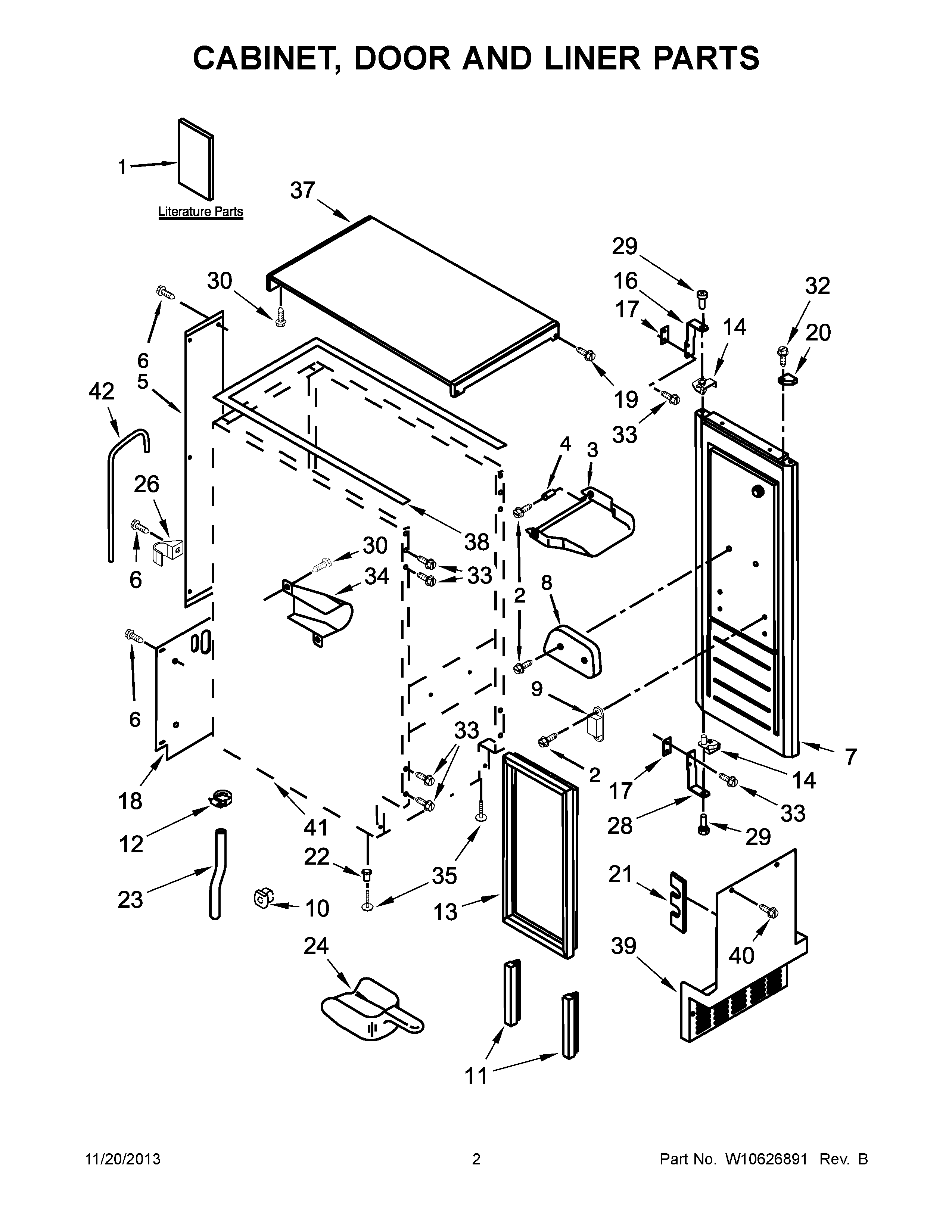

KUIC15POZP0 02 – CABINET, DOOR AND LINER PARTS

KUIC15POZP0 02 – CABINET, DOOR AND LINER PARTS

Written by

in

KUIC15POZP0 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	WP3400886 Whirlpool Refrigerator Screw
3	BIN, DOOR
4	2185678 Whirlpool Refrigerator Spacer
5	2217394 Whirlpool Refrigerator Wire Cover
6	WP489442 Whirlpool Refrigerator Screw
7	W10502166Q Whirlpool Refrigerator Door FIP
8	W10486874 Whirlpool Door Cam
9	W11223751 Whirlpool Refrigerator Catch Assembly
10	W10136999 Whirlpool Refrigerator Nut
11	2217367 Whirlpool Refrigerator Door Gasket
12	WP489503 Whirlpool Refrigerator Clamp
13	WP2217294 Whirlpool Refrigerator Door Gasket
14	W10486559 Whirlpool Refrigerator Door Stop
14	W10486561 Whirlpool Refrigerator Door Stop
16	W10476703 Whirlpool Refrigerator Hinge
17	SHIM, BOTTOM HINGE
17	SHIM, TOP HINGE
18	WPW10136199 Whirlpool Refrigerator Unit Cover
19	8534075 Whirlpool Screw
20	W10501833 Whirlpool Floor Endcap
20	W10501849 Whirlpool Floor Endcap
21	W10532250 Whirlpool Refrigerator Foam Pad
22	3400240 Whirlpool Refrigerator Nut
23	WPW10493860 Whirlpool Refrigerator Hose
24	W11420408 Whirlpool Refrigerator Ice Scoop
26	WP2208367 Whirlpool Refrigerator Half Clamp
28	W10476696 Whirlpool Refrigerator Hinge
29	2185712 Whirlpool Refrigerator Hinge Pin
30	WP250830 Whirlpool Refrigerator Screw
32	NAMEPLATE
33	W10495264 Whirlpool Refrigerator Screw
34	2185927 Whirlpool Refrigerator Holder
35	8193716 Whirlpool Leveling Leg
37	W10320117 Whirlpool Refrigerator Top Cabinet
38	W11624957 Whirlpool Refrigerator Top Gasket
39	WP2185571B Whirlpool Refrigerator Grille
40	W10531302 Whirlpool Refrigerator Screw
41	CABINET (NOT A SERVICEABLE PART)
42	WPW10217906 Whirlpool Refrigerator Tube
