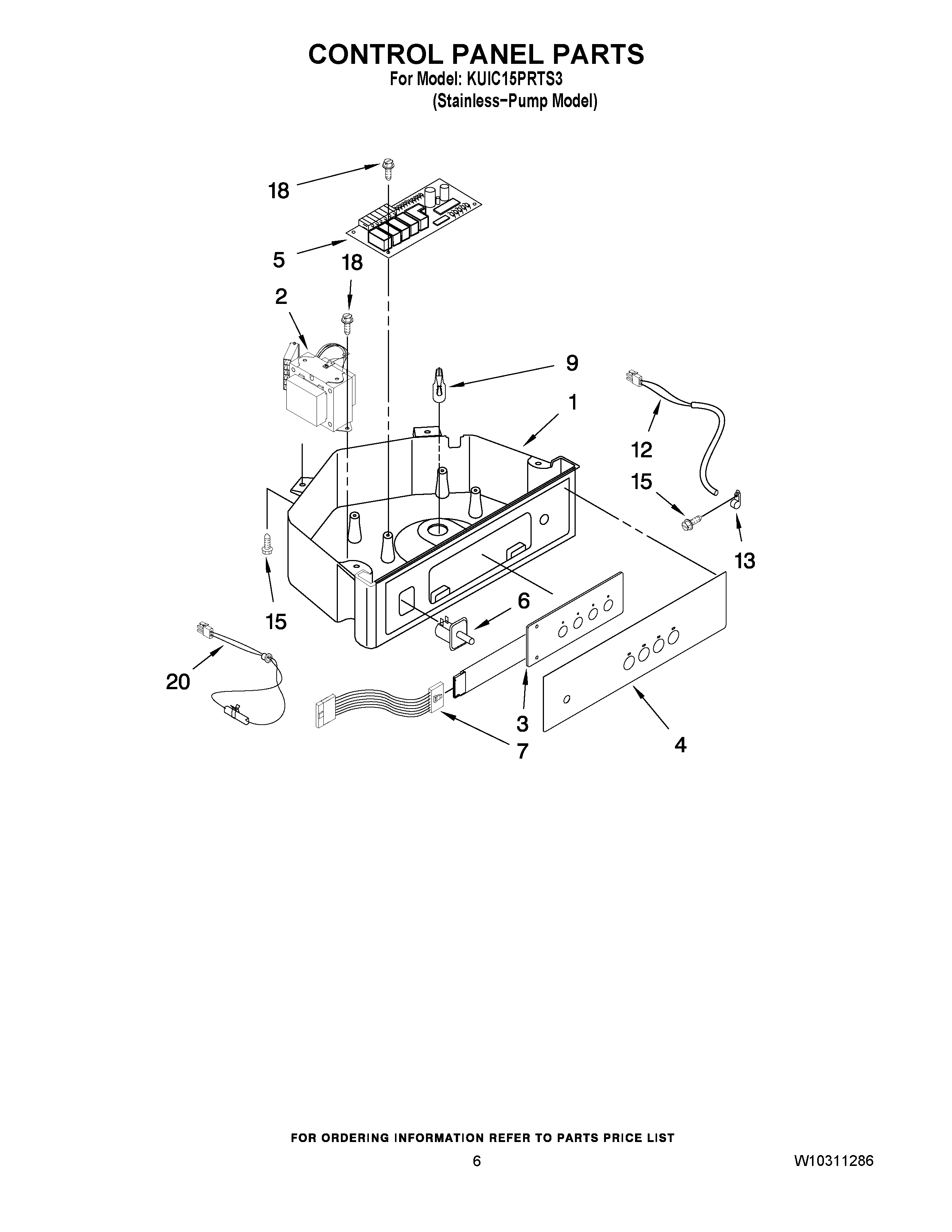

KUIC15PRTS3 04 – CONTROL PANEL PARTS

Products

PositionProduct
1Box, Control
2WP2310139 Whirlpool Refrigerator Transformer
3Assembly, Switch (ALSO ORDER 4)
4OVERLAY
5WPW10226156-includeCORE Whirlpool WPW10226156 Refrigerator Electronic Control Board + Core
6WP2149705 Whirlpool Refrigerator Door Switch
7WIRE ASSY
9Bulb, Light (Pkg. Of 2)
12WPW10503764 Whirlpool Refrigerator Thermistor
132185825 Whirlpool Refrigerator Clamp
15WP3400884 Whirlpool Refrigerator Screw
18WP489443 Whirlpool Refrigerator Screw
20WP2313635 Whirlpool Refrigerator Thermistor
