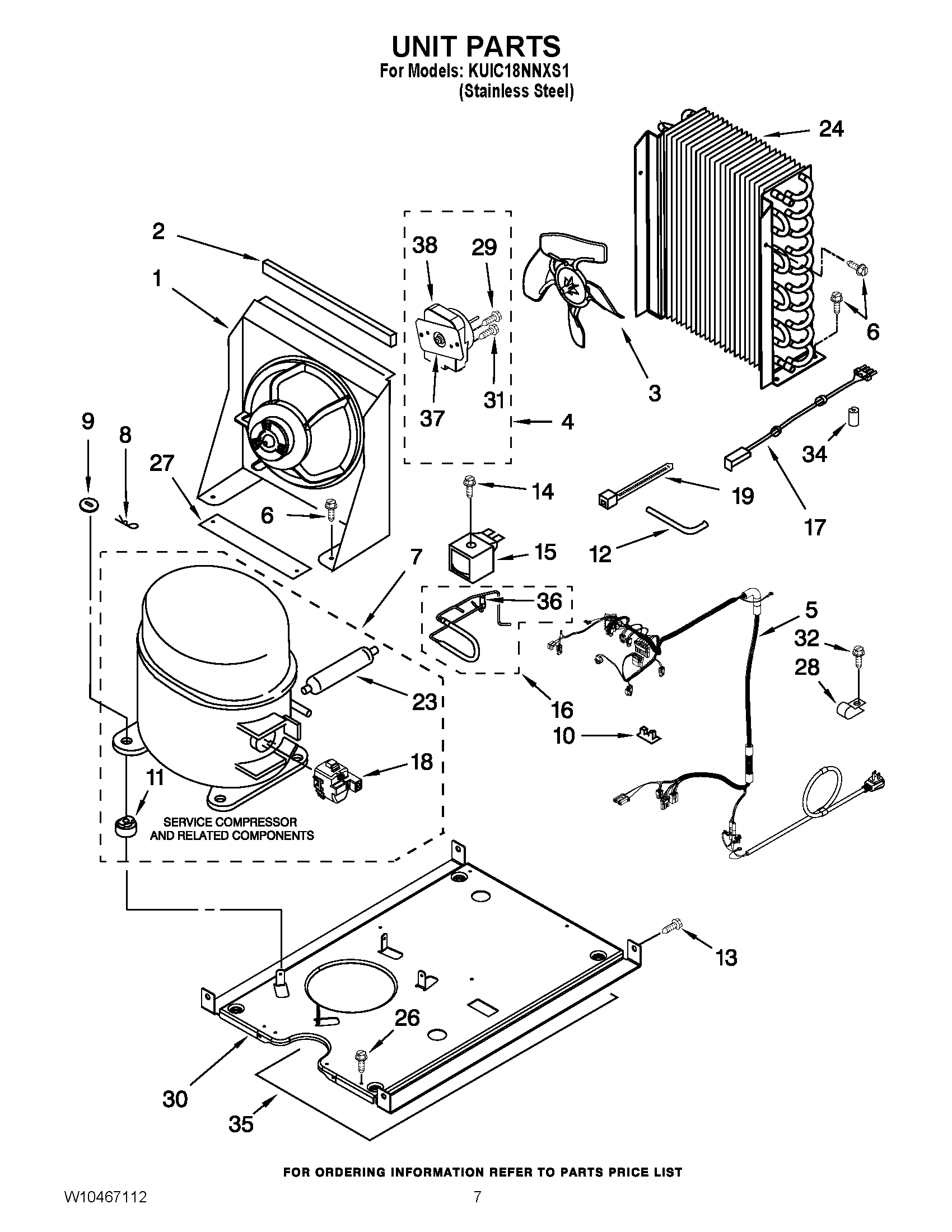

KUIC18NNXS1 05 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	WP2188935 Whirlpool Refrigerator Fan Blade
5	W10340990 Whirlpool Refrigerator Harness
7	WPW10605286 Whirlpool Refrigerator Compressor
8	A201435 Whirlpool Refrigerator Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLIP, WIRING
11	2185965 Whirlpool Refrigerator Grommet
11	WP4387558 Whirlpool Refrigerator Compressor Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP999367 Whirlpool Refrigerator Screw
14	SCREW
15	WPW10206473 Whirlpool Refrigerator Coil Solenoid
16	WPW10534030 Whirlpool Refrigerator Gas Valve
17	WP2187629 Whirlpool Refrigerator Wire Jumper
18	WPW10136197 Whirlpool Refrigerator Start Device
19	Strap
23	W10843121 Whirlpool Refrigerator Tube
24	WP2313624 Whirlpool Refrigerator Condenser
26	WP489128 Whirlpool Refrigerator Screw
27	2217397 Whirlpool Foam Pad
28	CLAMP, POWER CORD
29	8281197 Whirlpool Refrigerator Screw
30	2217446 Whirlpool Refrigerator Base Condenser
31	WP8281196 Whirlpool Screw
32	WP489069 Whirlpool Compactor Screw
34	W10852725 Whirlpool Refrigerator Grommet
35	W10282061 Whirlpool Tape
36	WP759113 Whirlpool Refrigerator Gas Valve
37	Plate
38	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
