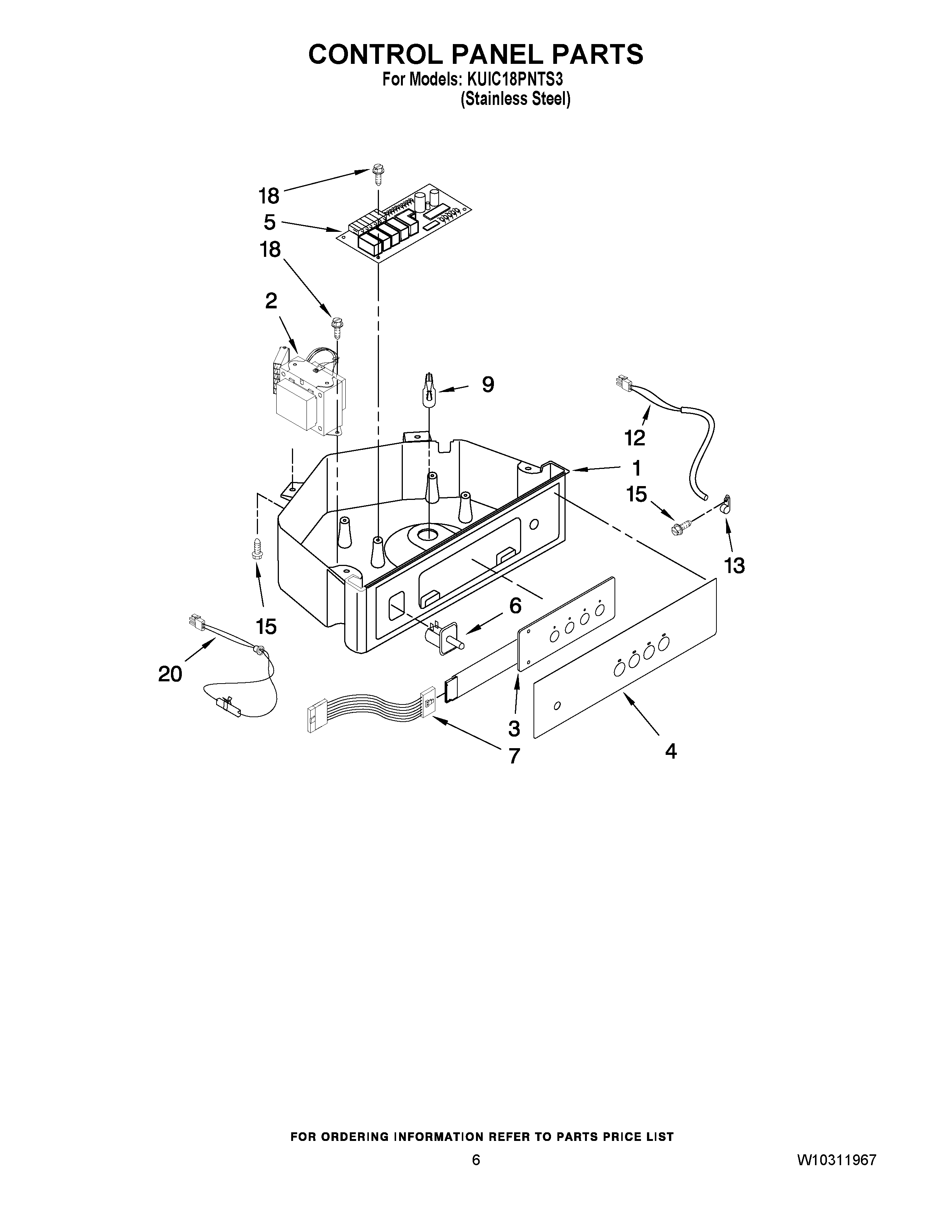

KUIC18PNTS3 04 – CONTROL PANEL PARTS

Products

Position	Product
1	Box, Control
2	WP2310139 Whirlpool Refrigerator Transformer
3	Assembly, Switch (ALSO ORDER 4)
4	OVERLAY
5	WPW10226156-includeCORE Whirlpool WPW10226156 Refrigerator Electronic Control Board + Core
6	WP2149705 Whirlpool Refrigerator Door Switch
7	WIRE ASSY
9	Bulb, Light (Pkg. Of 2)
12	WPW10503764 Whirlpool Refrigerator Thermistor
13	2185825 Whirlpool Refrigerator Clamp
15	WP3400884 Whirlpool Refrigerator Screw
18	WP489443 Whirlpool Refrigerator Screw
20	WP2313635 Whirlpool Refrigerator Thermistor
