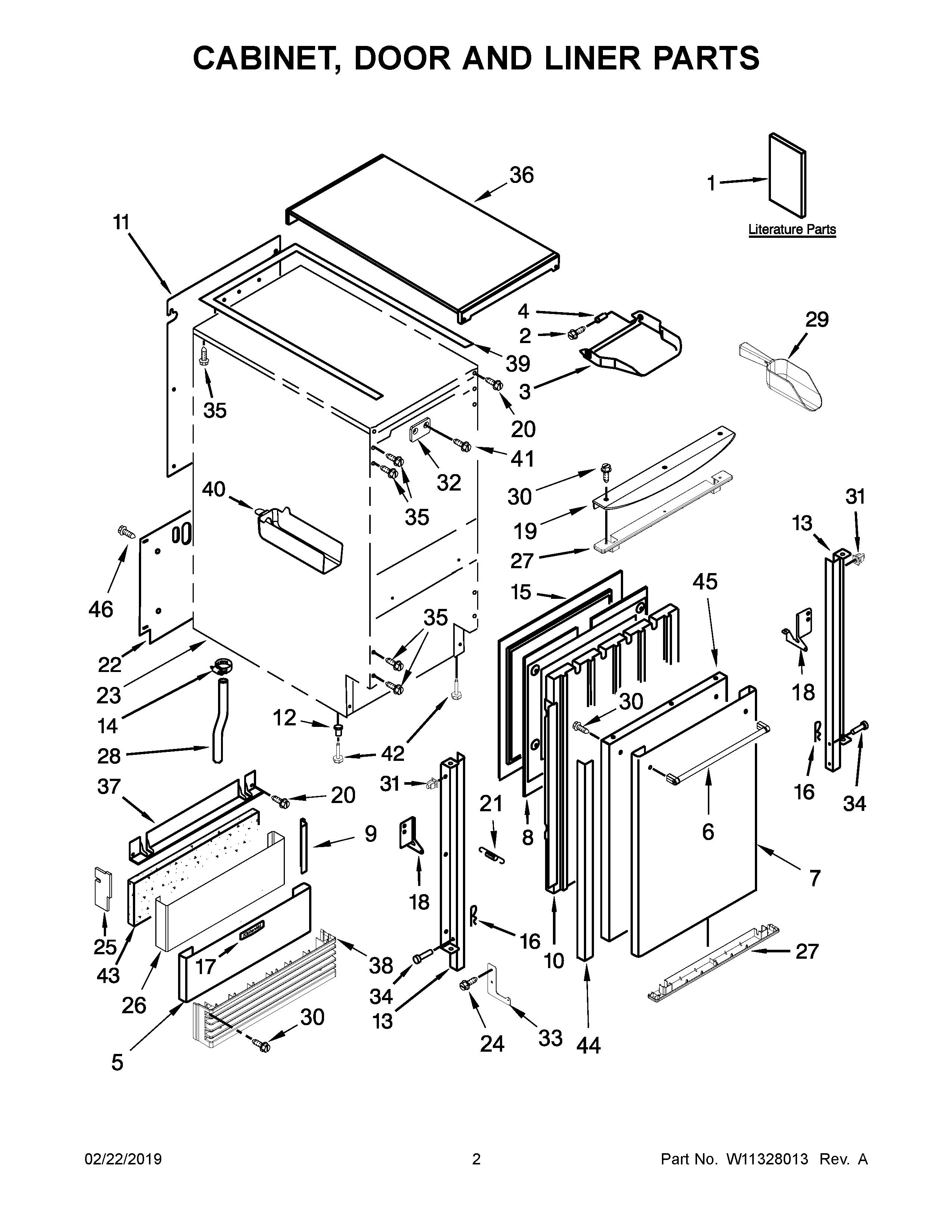

KUID308HPS00 02 – CABINET, DOOR AND LINER PARTS

Products

Position	Product
1B	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1A	TECH SHEET
2	WP3400886 Whirlpool Refrigerator Screw
3	2208354 Whirlpool Refrigerator Inner Door
4	2185678 Whirlpool Refrigerator Spacer
5	W11296659 Whirlpool Refrigerator Grille Panel
6	W11450233 Whirlpool Refrigerator Handle
7	W11368704 Whirlpool Refrigerator Door Skin
8	W10563026 Whirlpool Refrigerator Panel
9	2208596B Whirlpool Refrigerator Edge Guard
10	INSULATION
11	W10218024 Whirlpool Enclosure
12	3400240 Whirlpool Refrigerator Nut
13A	Bracket, Door (Right Side)
13	2217466 Whirlpool Bracket
14	W10670799 Whirlpool Refrigerator Clamp
15	W11624959 Whirlpool Refrigerator Door Gasket
16	W11545866 Whirlpool Refrigerator Clip
17	W10909682 Whirlpool Nameplate Tag
18	2208425 Whirlpool Refrigerator Hinge
18A	2208426 Whirlpool Refrigerator Hinge
19	WP2208452B Whirlpool Refrigerator Handle
20	WP489474 Whirlpool Refrigerator Screw
21	WP2208570 Whirlpool Refrigerator Spring
22	W11261690 Whirlpool Refrigerator Unit Cover
23	CABINET (NOT A SERVICEABLE PART)
24	WP488163 Whirlpool Refrigerator Screw
25	2217225 Whirlpool Refrigerator Foam Pad
26	2208382B Whirlpool Refrigerator Grill Panel
27	W11413461 Whirlpool Refrigerator Endcap
28	W10737551 Whirlpool Refrigerator Drain Tube
29	W10508276A Whirlpool Refrigerator Ice Scoop
30	W10920281 Whirlpool Screw
31	WP692400 Whirlpool Nut
32	2208434 Whirlpool Refrigerator Strike
33	2208487 Whirlpool Bracket
34	Pin, Hinge
35	WP250830 Whirlpool Refrigerator Screw
36	W10320118 Whirlpool Refrigerator Top Cabinet
37	2208383B Whirlpool Refrigerator Endcap
38	WP2217206B Whirlpool Refrigerator Grille
39	2217296 Whirlpool Refrigerator Top Gasket
40	W10557773 Whirlpool Refrigerator Holder
41	8281191 Whirlpool Oven Screw
42	8193716 Whirlpool Leveling Leg
43	2208384 Whirlpool Refrigerator Insulation
44	2208595B Whirlpool Guard Edge
45	2208352B Whirlpool Refrigerator Panel
46	WP489442 Whirlpool Refrigerator Screw
